MULTIFUNCTION Electronic Module: Removal

WARNING: This page is about a different car, the 2002 Jaguar XKR and 2002 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
- Refer to BATTERY DISCONNECTION PROCEDURE .
Remove the passenger side register duct.

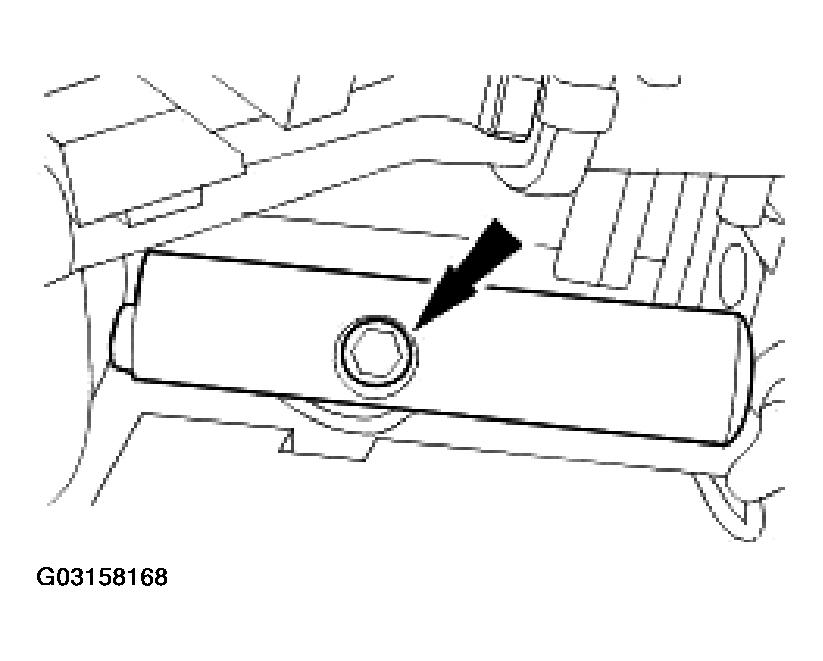

Fig 1: Removing Passenger Side Register Duct
Courtesy of JAGUAR CARS, INC.
Remove the glove compartment shelf.

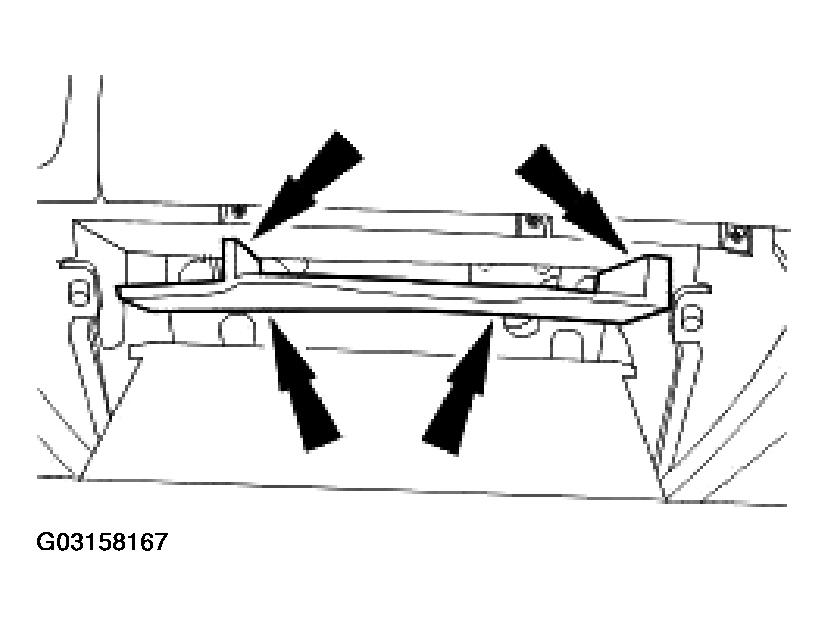

Fig 2: Removing Glove Compartment Shelf
Courtesy of JAGUAR CARS, INC.
Disconnect the multifunction electronic module electrical connector.

Fig 3: Disconnecting Multifunction Electronic Module Electrical Connector
Courtesy of JAGUAR CARS, INC.

NOTE: Glove compartment shown removed for clarity.

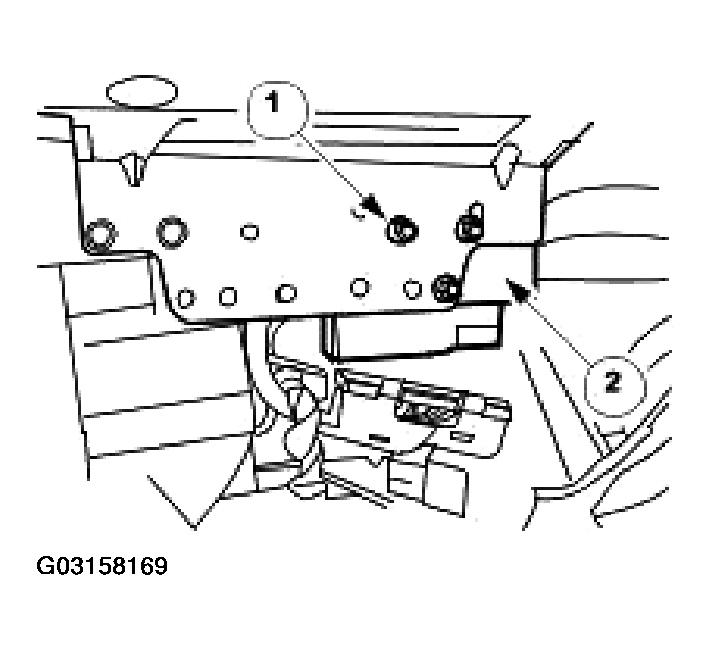

Fig 4: Removing Multifunction Electronic Module

Courtesy of JAGUAR CARS, INC.

Remove the multifunction electronic module.
- Remove the three nuts which secure the module to the instrument panel. (1)
- Remove the multifunction electronic module. (2)
