Wheel Speed Sensor Ring: Installation

  1. Fit rotor nut to hub.
    • Fit rotor nut. (1)
    • Using special tool tighten rotor nut. (2)

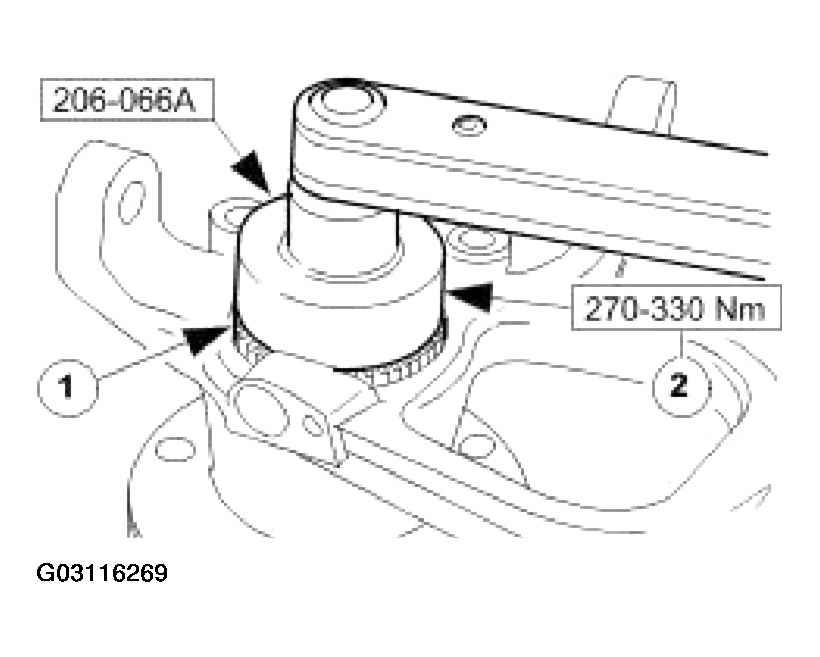

    Fig 1: Fitting Rotor Nut To Hub
    G03116269Courtesy of JAGUAR CARS, INC.
    2. CAUTION: Do not slacken the rotor nut to engage the spring clip.

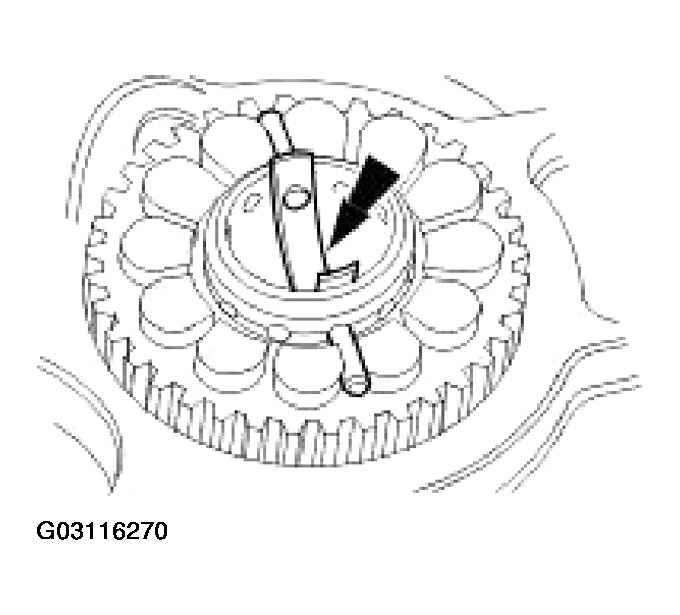

    Fig 2: Fitting Rotor Nut Spring-Clip
    G03116270Courtesy of JAGUAR CARS, INC.
  2. Fit rotor nut spring-clip.
    • Fit spring clip into the hub retaining holes and, if aligned, into the castellated slots of the rotor nut.
    • If the castellated slots of the rotor nut are not aligned it will be necessary to tighten the rotor nut further until the spring clip engages the slots.
  3. Remove vertical link and hub assembly from special tool.
  4. Fit disc shield to vertical link.
    • Position disc shield. (1)
    • Fit and tighten bolts. (2)

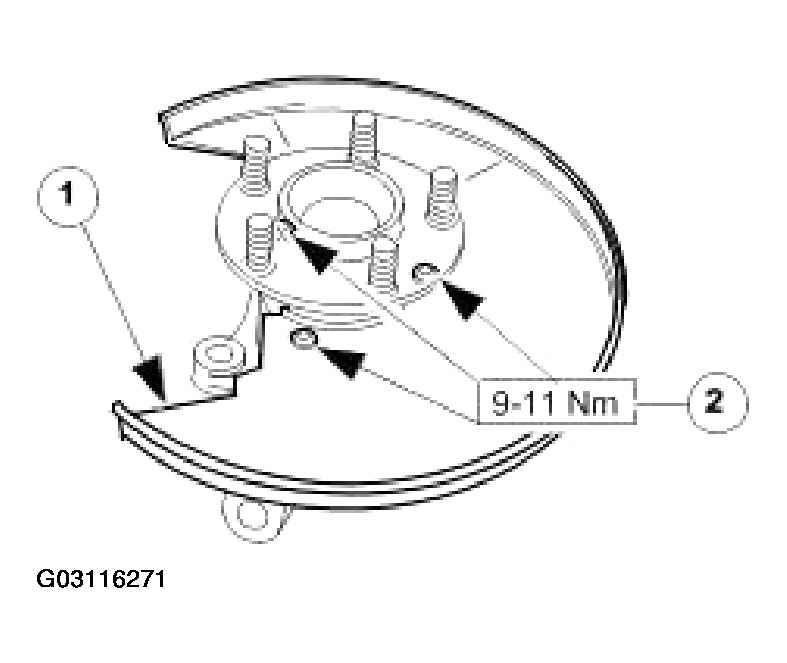

    Fig 3: Fitting Disc Shield To Vertical Link
    G03116271Courtesy of JAGUAR CARS, INC.
  5. Fit vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
  6. Fit brake disc. Refer to FRONT DISC BRAKE ROTOR .
  7. Fit wheel. Refer to WHEELS & TIRES .
  8. Remove stands and lower vehicle.
