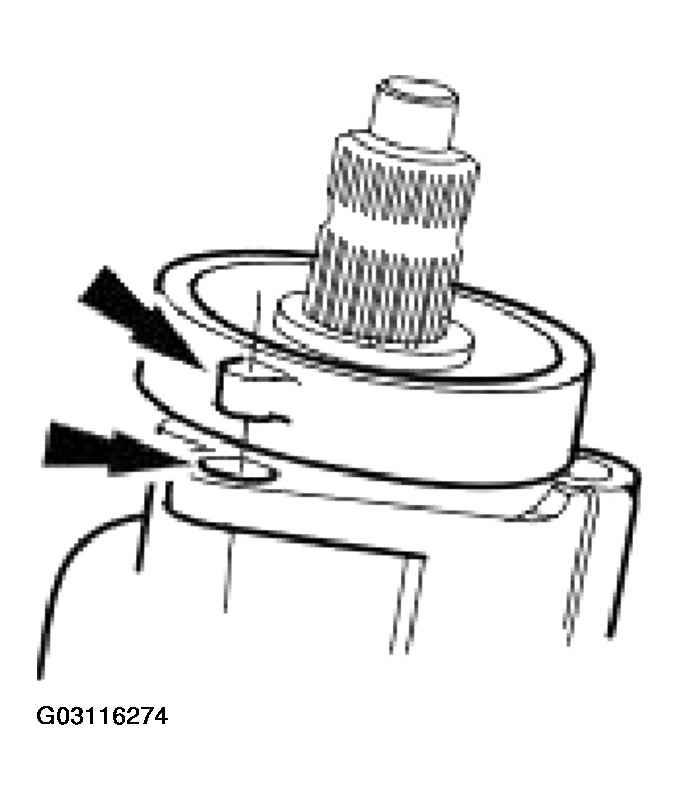

Rack Alignment Markers
- The steering rack should always be centralized prior to steering column or suspension geometry adjustment.
- Centralization of the steering rack is achieved by aligning the marker on the centralizing cap with a locator on the pinion housing.
