Transmission Fluid Filling

  1. Connect the PDU to monitor the fluid temperature.
  2. Access the dipstick tube.
    1. Break off the dipstick tube plug locking plate.
    2. Push the locking pin downward, into the plug.
    3. Remove the dipstick tube plug.
      • Push the locking pin through the tube plug and discard the pin.

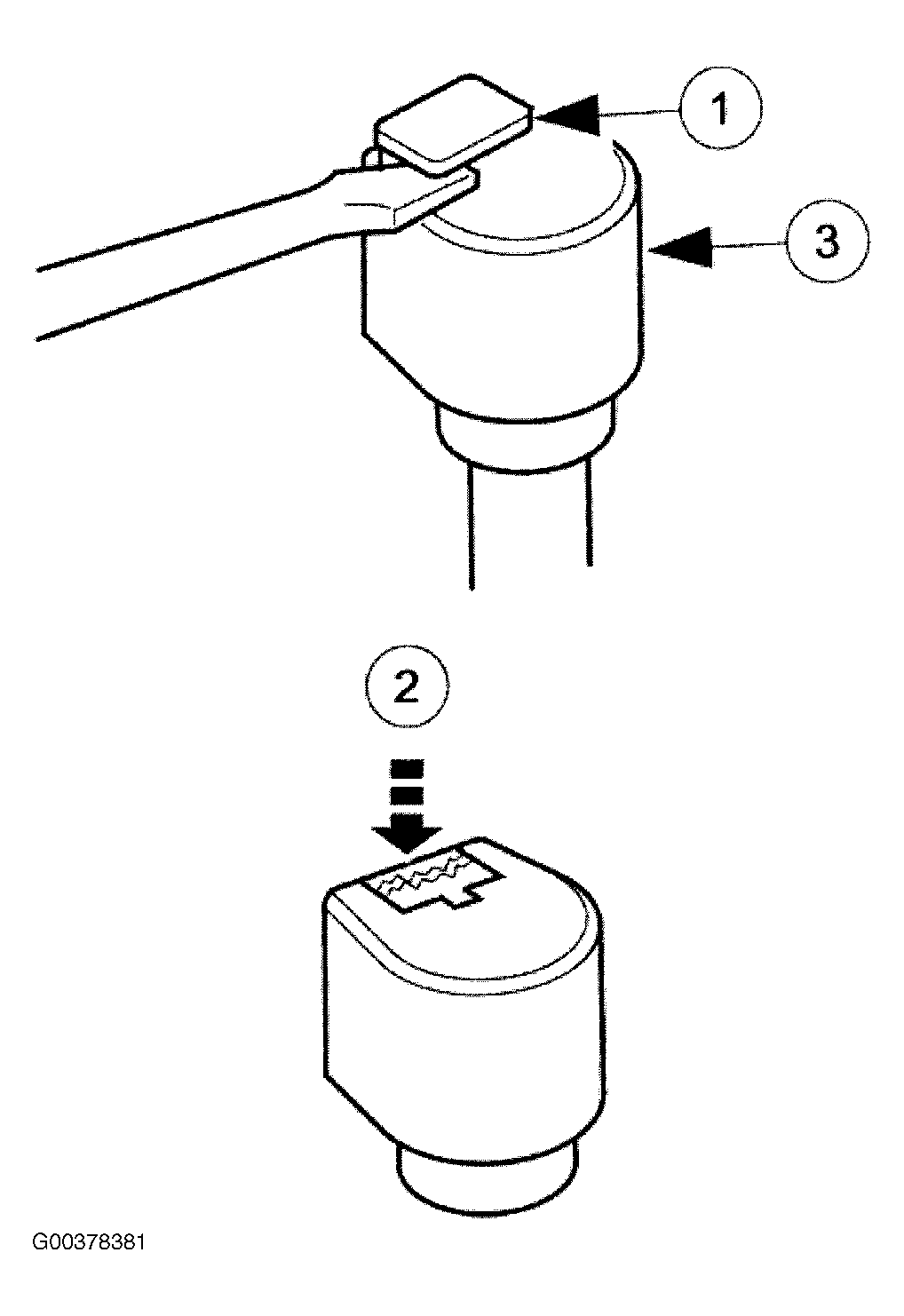

    Fig 1: Accessing Dipstick Tube
    G00378381Courtesy of JAGUAR CARS, INC.
    3. CAUTION: It is essential that only the specified fluid is used.
    Fig 2: Adding Fluid To Transmission
    G00378382Courtesy of JAGUAR CARS, INC.
  3. Pour approximately 4.0 liters of fluid into the transmission.
  4. Select Park and start the engine.
    Fig 3: Engine Running Conditions
    G00378306Courtesy of JAGUAR CARS, INC.
  5. Pour approximately 3.0 liters of fluid into the transmission. See Fig 2.
  6. Cycle the gear selector.
    • From P to D.
    • From D to R.
    • From R to P.
    Fig 4: Identifying Transmission Filling Gear Selector Cycle
    G00378307Courtesy of JAGUAR CARS, INC.
    7. NOTE: Temperature will ONLY be displayed in D or R.
    Fig 5: Identifying Dipstick Fluid Level Specifications
    G00378383Courtesy of JAGUAR CARS, INC.
  7. Check the transmission fluid temperature to select the appropriate dipstick calibration.
    1. MAX and MIN marks at 25°C fluid temperature.
    2. MAX and MIN marks at 80°C fluid temperature.
    8. NOTE: Only use a lint free cloth to wipe the dipstick.
    Fig 6: Checking Fluid Level With Dipstick
    G00378384Courtesy of JAGUAR CARS, INC.
  8. Check the transmission fluid level.
    • Insert the dipstick (special tool 307 - 379) until it stops (tip contact with the fluid pan).
    • Remove the dipstick and check the level.
    • Repeat this operation.
  9. Correct the fluid level as required, noting that excess fluid MUST be removed.
  10. STOP the engine and remove the dipstick.
  11. Seal the dipstick tube.
    1. Seat the tube plug.
    2. Engage and fully seat the new locking pin.

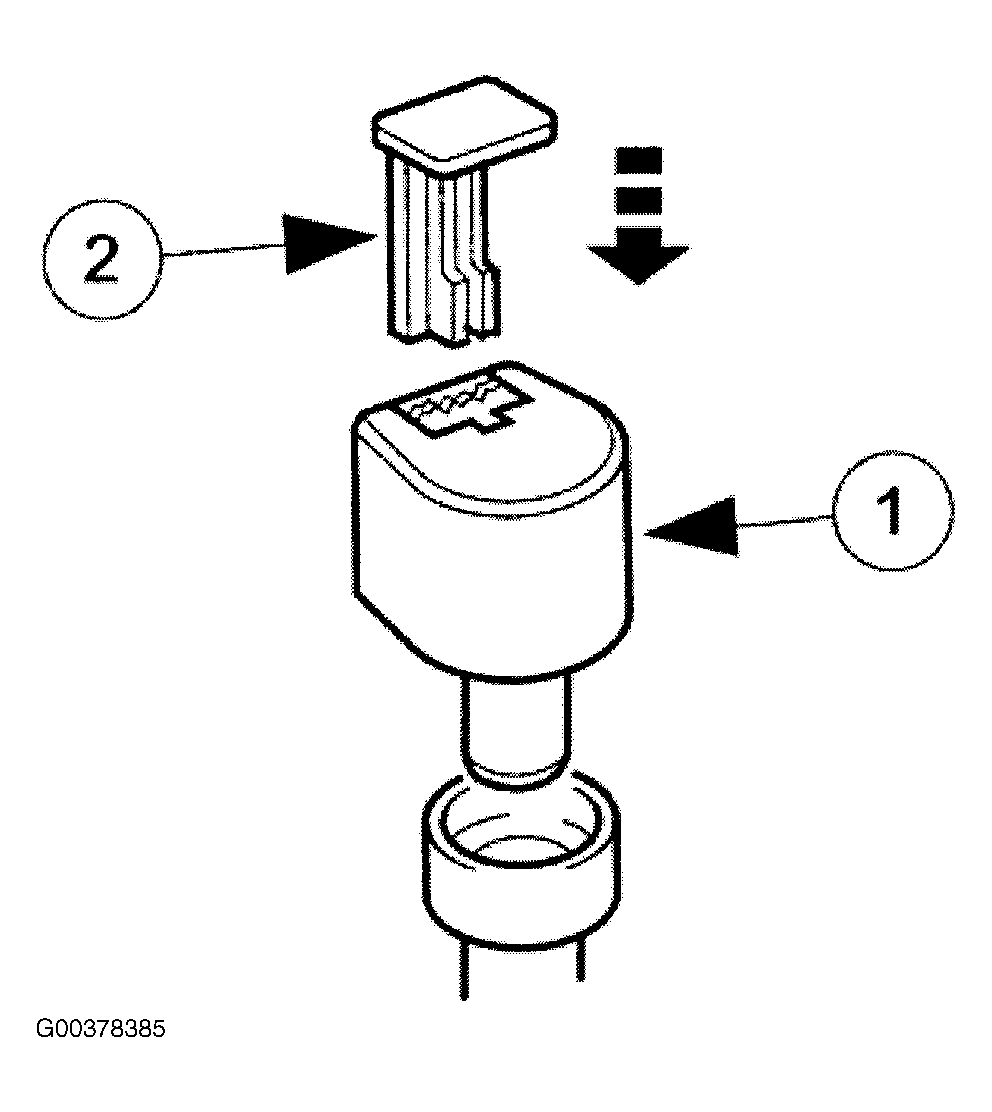

    Fig 7: Sealing Dipstick Tube
    G00378385Courtesy of JAGUAR CARS, INC.
  12. Check for leaks and remove spilt fluid.
