Wheel Speed Sensor Ring: Installation

  1. Fit rotor nut to hub.
    • Fit rotor nut. (1)
    • Using special tool tighten rotor nut. (2)

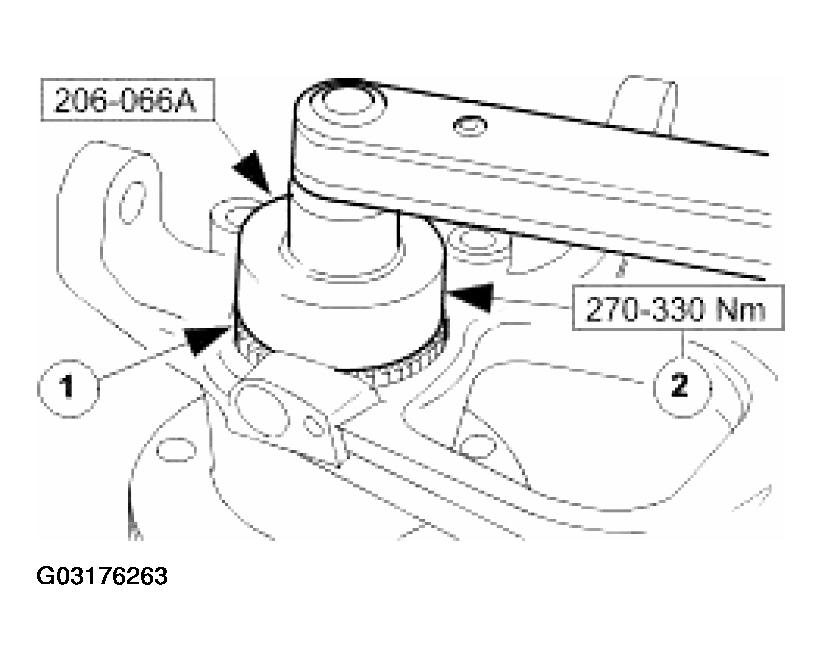

      Fig 1: Fitting Rotor Nut To Hub
      G03176263Courtesy of JAGUAR CARS, INC.
    2. CAUTION: Do not slacken the rotor nut to engage the spring clip.
  2. Fit rotor nut spring-clip.
    • Fit spring clip into the hub retaining holes and, if aligned, into the castellated slots of the rotor nut.
    • If the castellated slots of the rotor nut are not aligned it will be necessary to tighten the rotor nut further until the spring clip engages the slots.

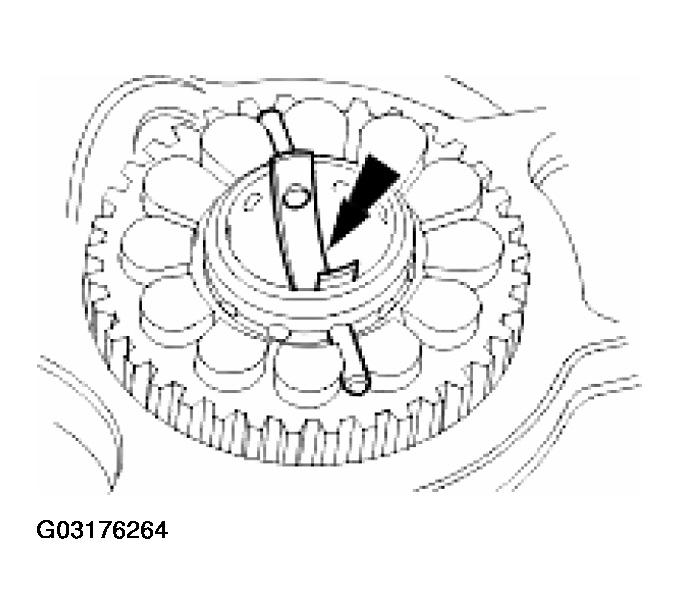

      Fig 2: Fitting Rotor Nut Spring-Clip
      G03176264Courtesy of JAGUAR CARS, INC.
  3. Remove vertical link and hub assembly from special tool.
  4. Fit disc shield to vertical link.
    • Position disc shield. (1)
    • Fit and tighten bolts. (2)

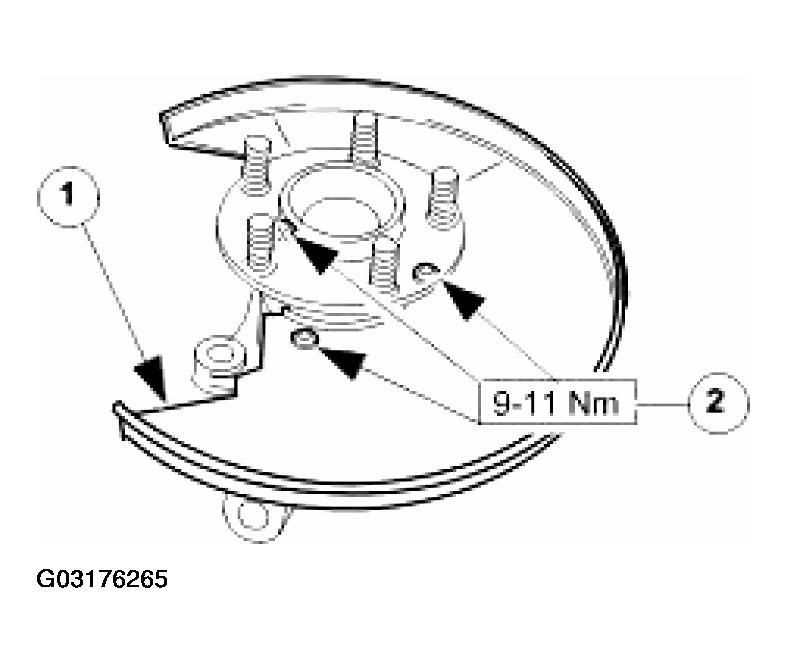

      Fig 3: Fitting Disc Shield To Vertical Link
      G03176265Courtesy of JAGUAR CARS, INC.
  5. Fit vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .
  6. Fit brake disc. Refer to FRONT DISC BRAKE ROTOR .
  7. Fit wheel. Refer to WHEELS & TIRES .
  8. Remove stands and lower vehicle.
