Performance Mode Push-Button

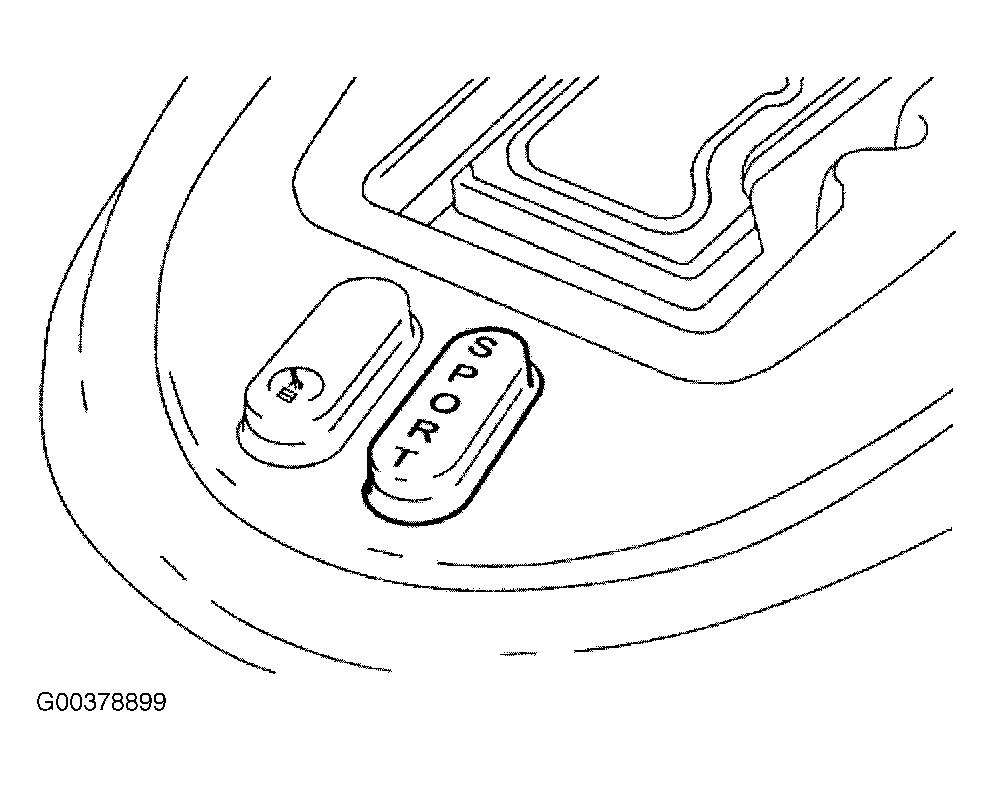

Fig 1: Identifying Performance Mode Push-button

Courtesy of JAGUAR CARS, INC.

The performance mode push-button:

• Is mounted on the gear selector surround.
• Selects Normal or Sport mode when pressed by the driver.
• Is illuminated when Sport mode is selected.
• Is hard-wired to the transmission control module.
