Main Control Valve Body: Installation
- Installation is the reverse of the removal procedure, noting the following steps.

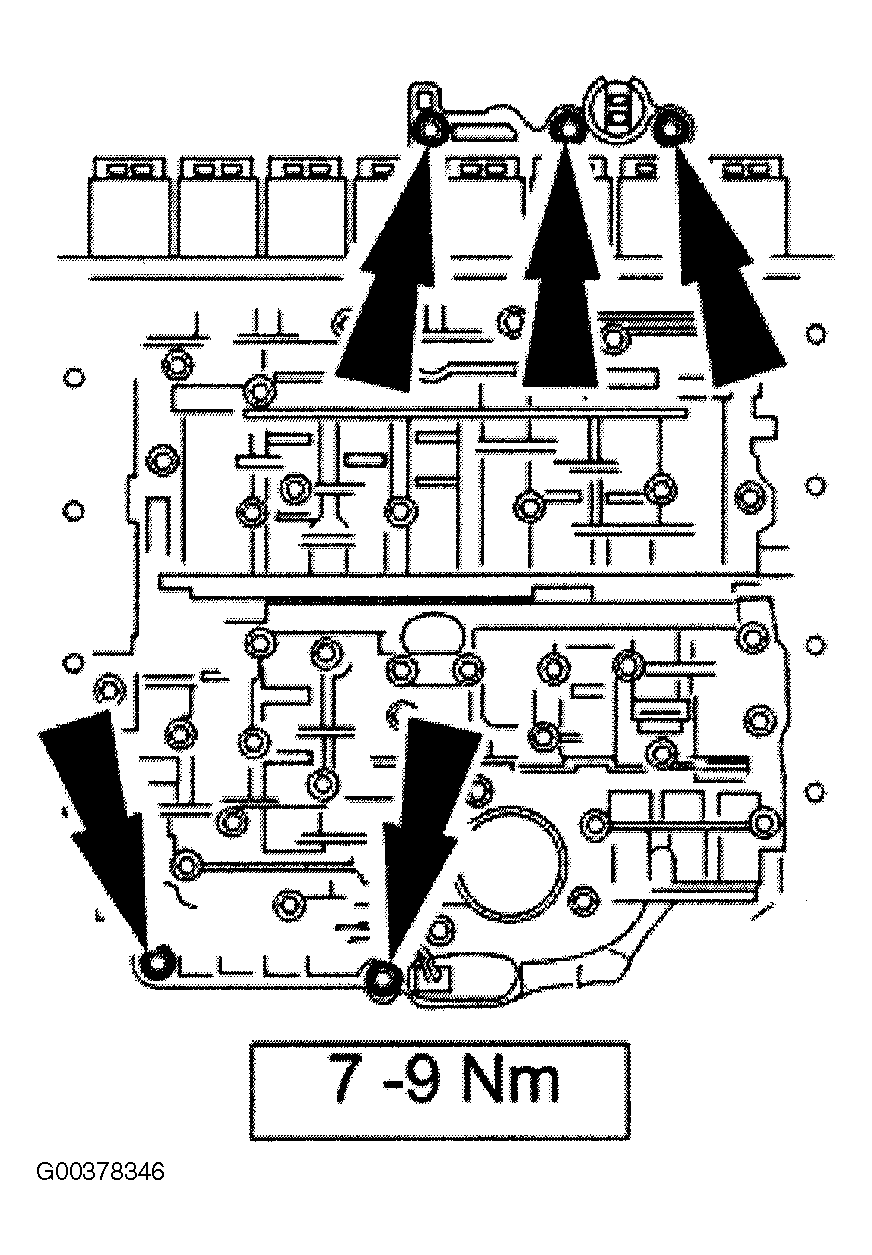

- Fit the valve body retaining screws.
- Note the location of the five screws M6 X 30. Fit and tighten to the specified torque figure.
- Note the location of the seventeen screws M6 X 60. Fit and tighten to the specified torque figure.

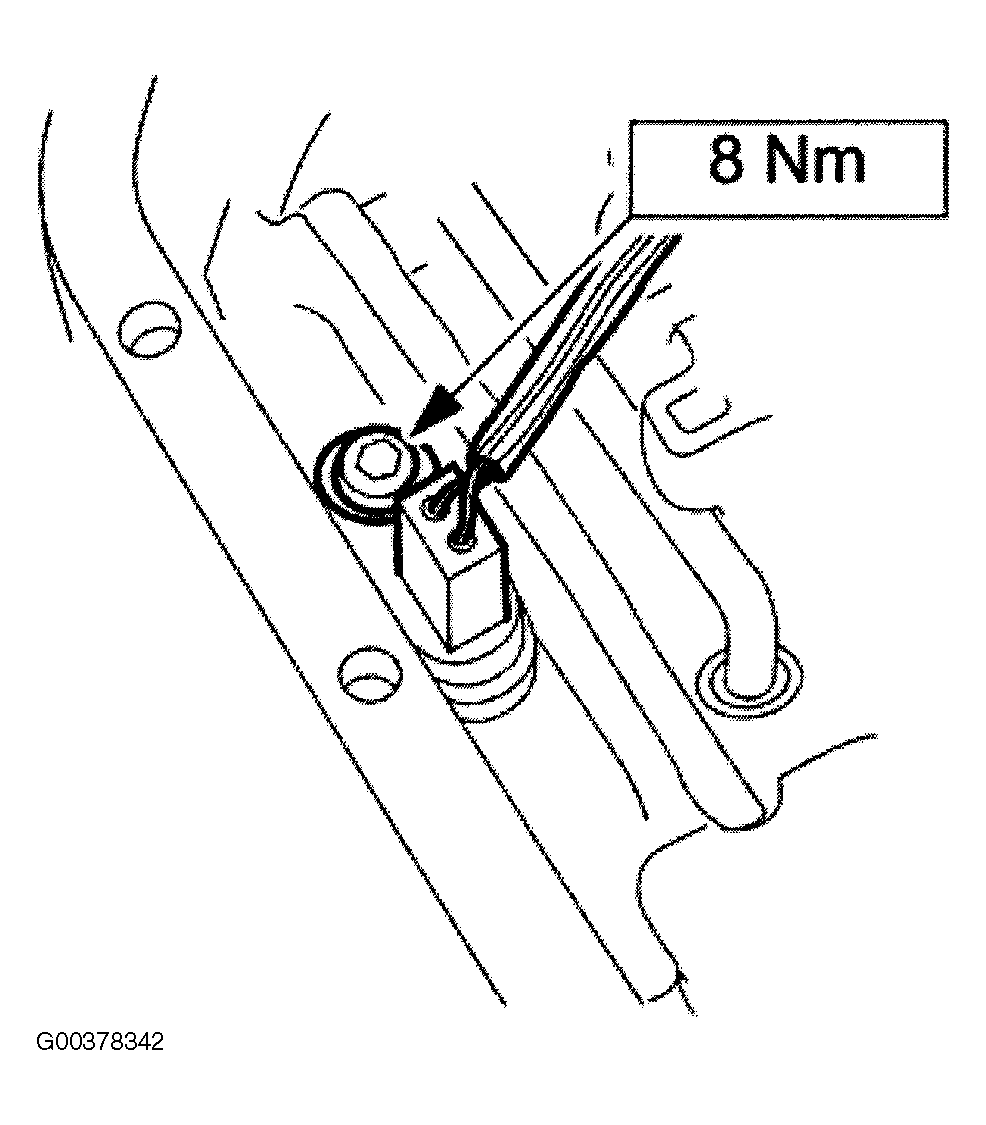

- Fit the output speed sensor and tighten the retaining screw to the specified torque figure. See Figure.

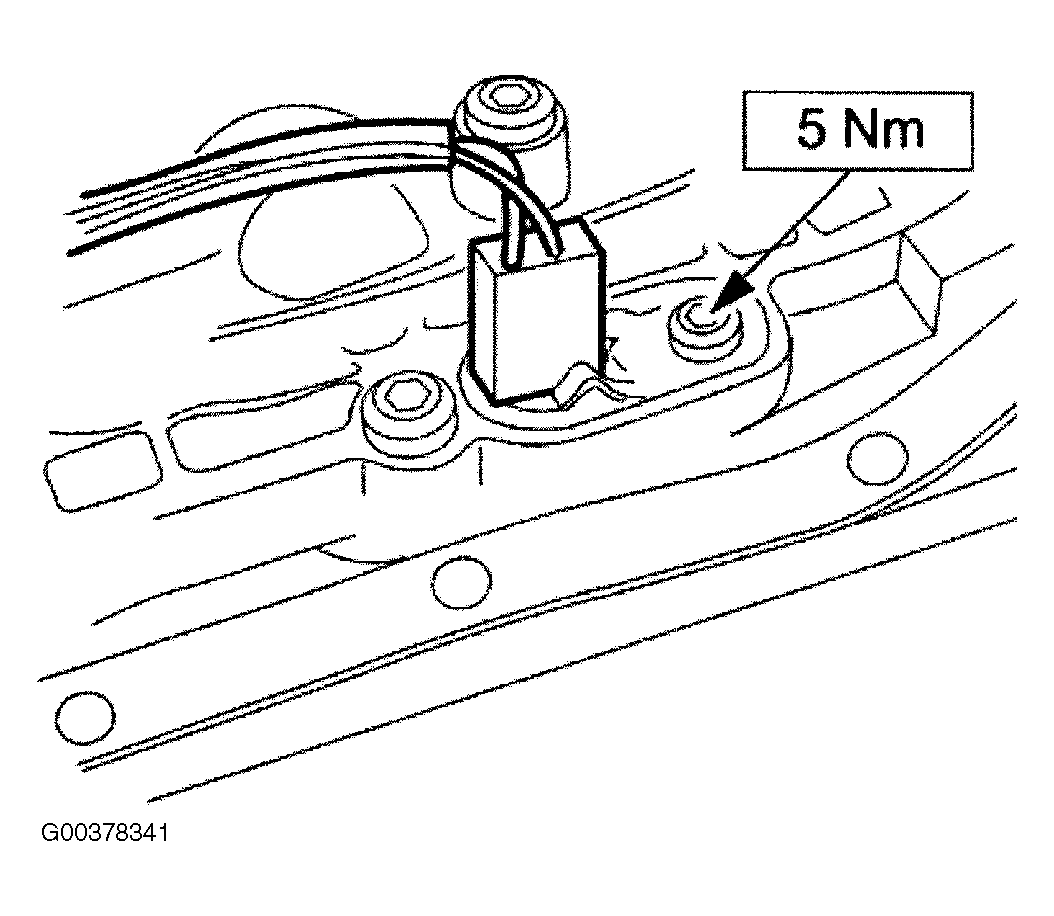

- Fit the input speed sensor and tighten the retaining screw to the specified torque figure. See Figure.

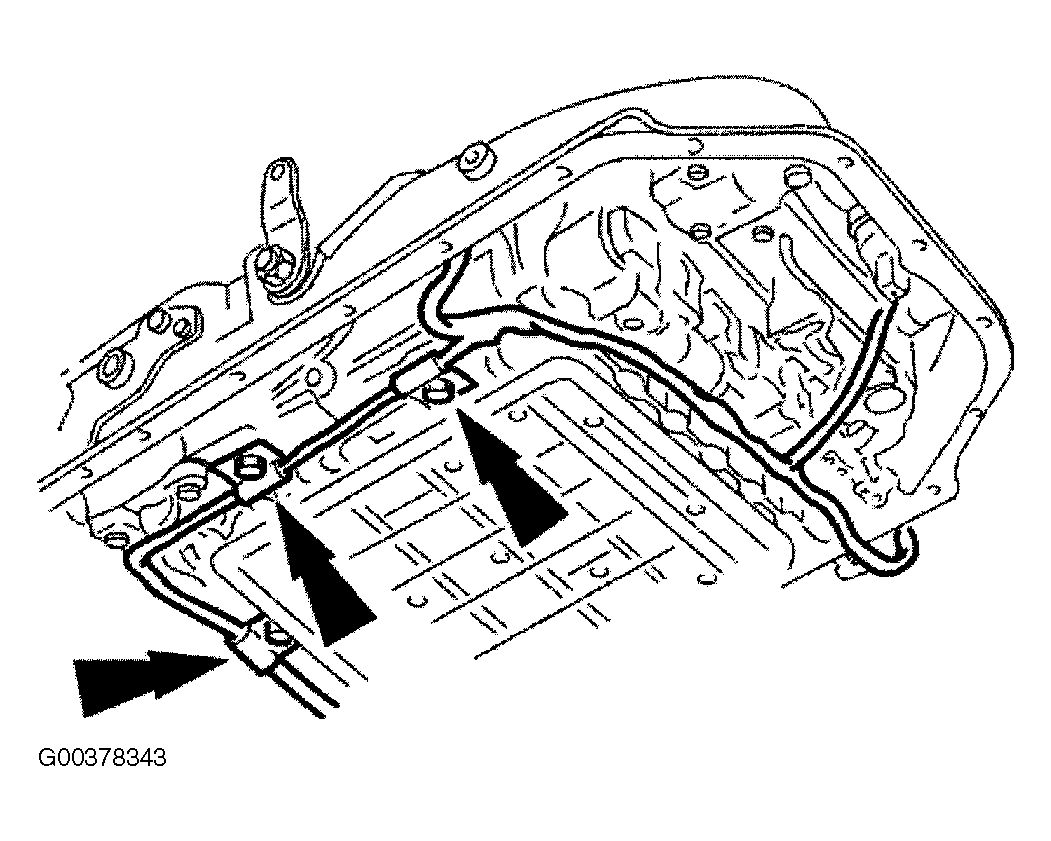

- Reposition the internal harness to the retaining clips. See Figure.

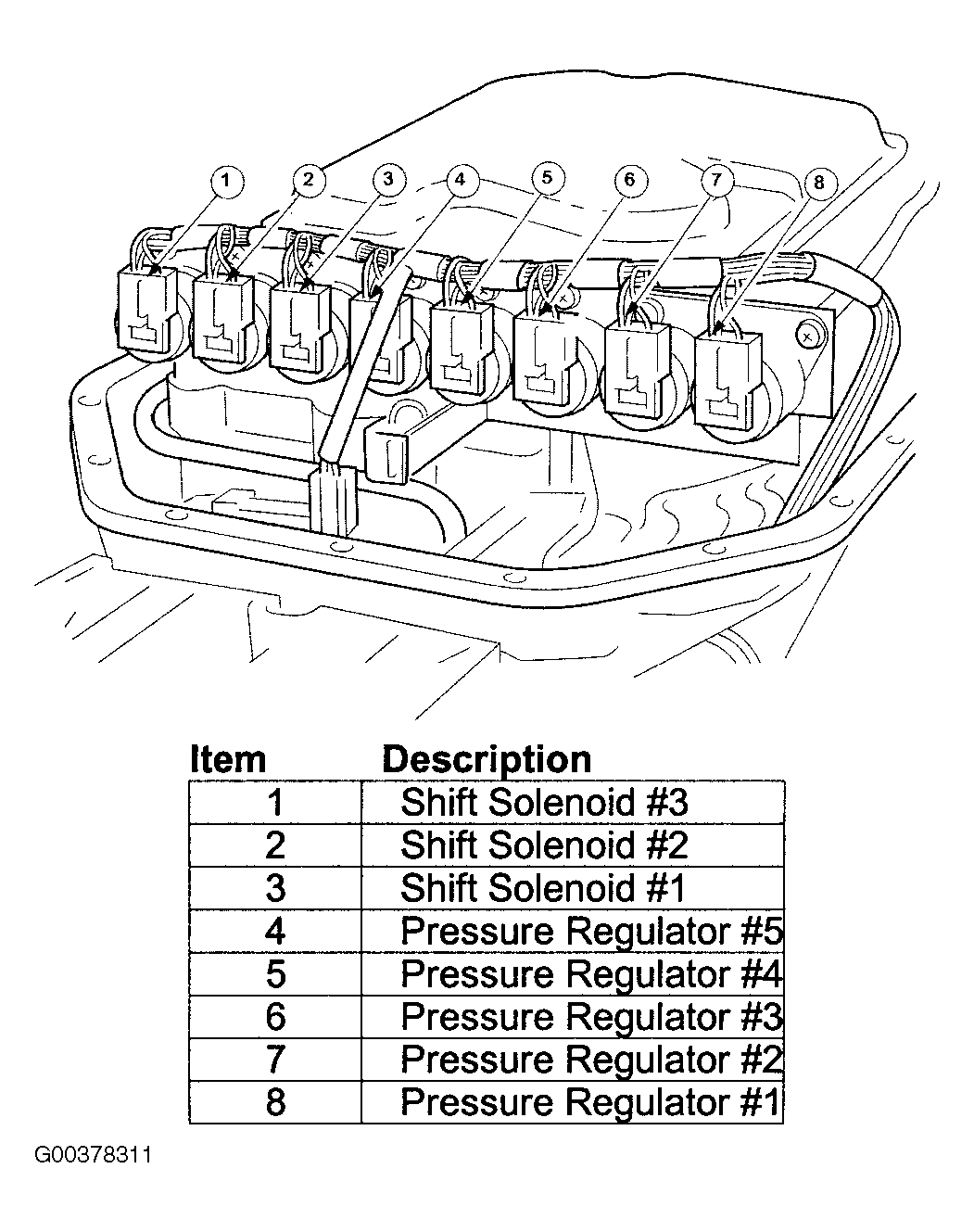

- Connect the five pressure regulator connectors and three solenoid connectors. See Figure.

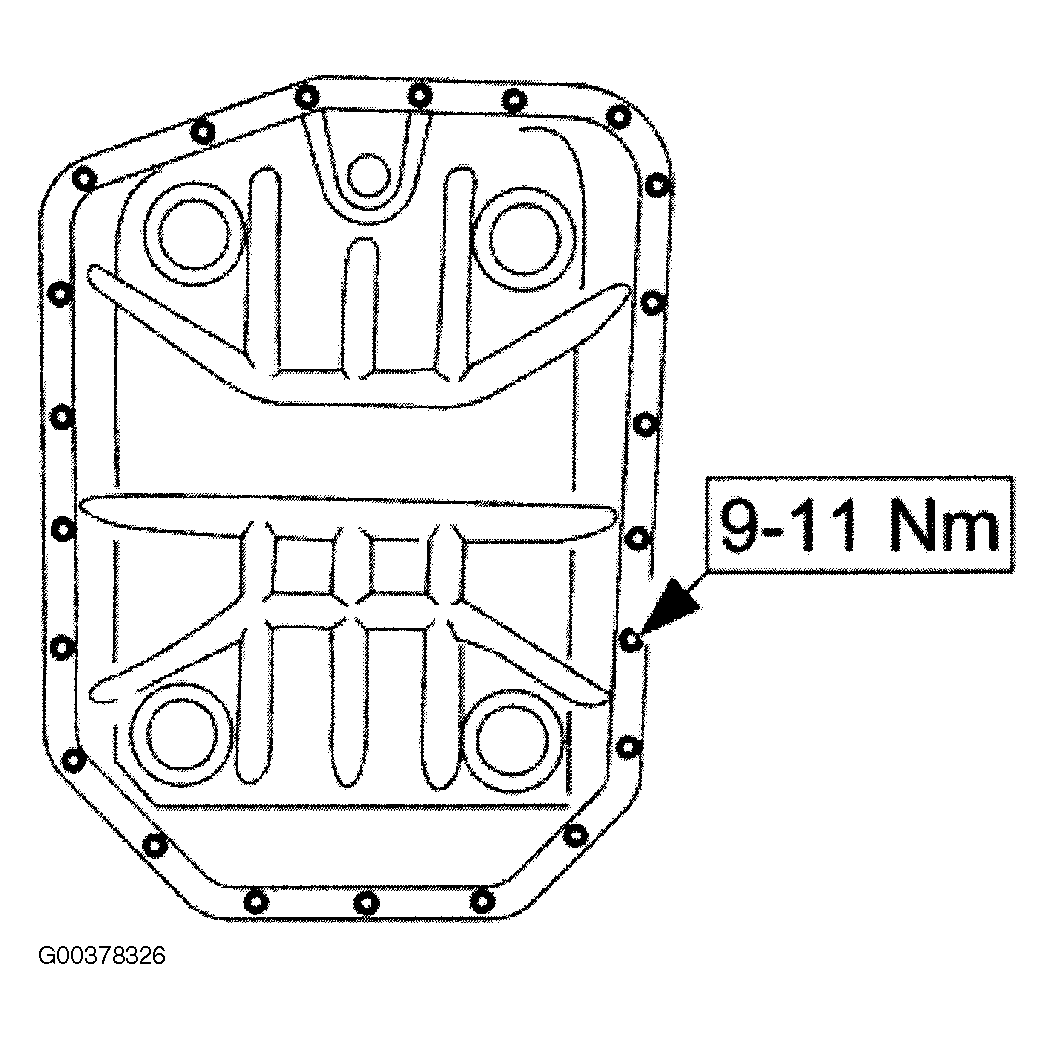

- Using a new gasket, install the fluid pan and tighten the twenty-two fixings to the specified. See Figure.
- Connect the battery and fit the battery cover.
- Reset the radio and the clock.
- Check the transmission fluid level. Refer to TRANSMISSION FLUID FILLING .
- Check for leaks and remove split fluid.
NOTE:
M6 fixing.
NOTE:
M5 fixing.
NOTE:
Ensure extreme cleanliness and never reuse transmission fluid.
