Anti-Lock Brake System (ABS) Module: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES for information.
CAUTION: Remove brake fluid spillage immediately from paint work, with clean water.
  1. Disconnect battery ground cable (IMPORTANT, see DISCONNECTING/CONNECTING THE BATTERY for further information).
  2. Position vehicle on a four-post lift.
  3. Open engine compartment and fit paint work protection covers to fenders.
  4. NOTE: The following three pictorial procedures must be carried-out to minimize brake fluid loss when disconnecting the brake tubes.
  5. Open Left-Hand-Front and Left-Hand-Rear caliper bleed nipples.
    • Connect a bleed tube and container to the calipers.
    • Open bleed nipples.

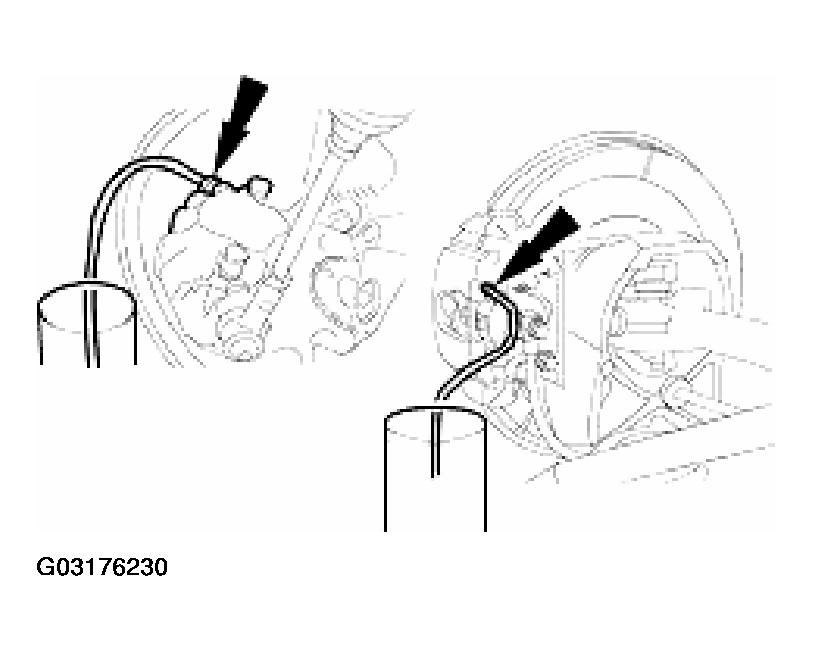

      Fig 1: Opening Left-Hand-Front And Left-Hand-Rear Caliper Bleed Nipples
      G03176230Courtesy of JAGUAR CARS, INC.
  6. Depress and hold down brake pedal using special tool.
    • Position tool between brake pedal and seat frame. (1)
    • Turn the tool wheel until the brake pedal is held 60mm down from its released position. (2)

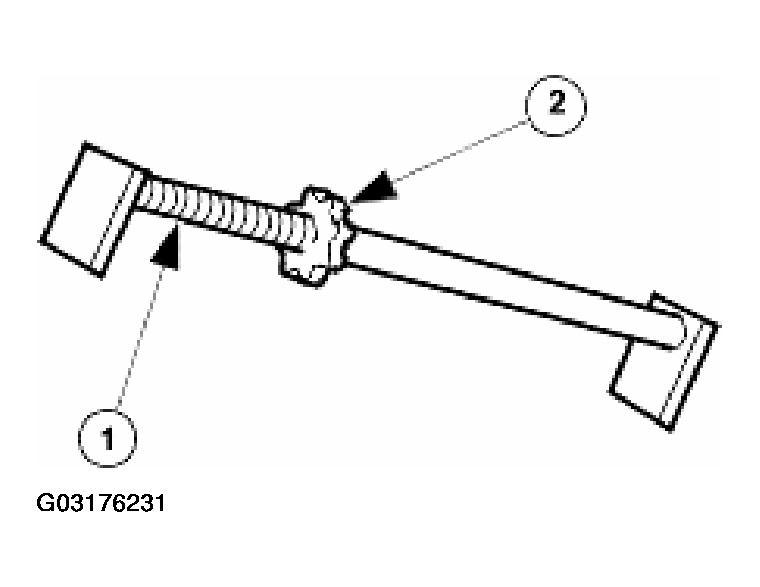

      Fig 2: Depressing And Holding Down Brake Pedal
      G03176231Courtesy of JAGUAR CARS, INC.
  7. Tighten bleed nipples to:
    • Front caliper bleed nipple 4-6 Nm.
    • Rear caliper bleed nipple 8-11 Nm.
    • Remove bleed tubes and containers.

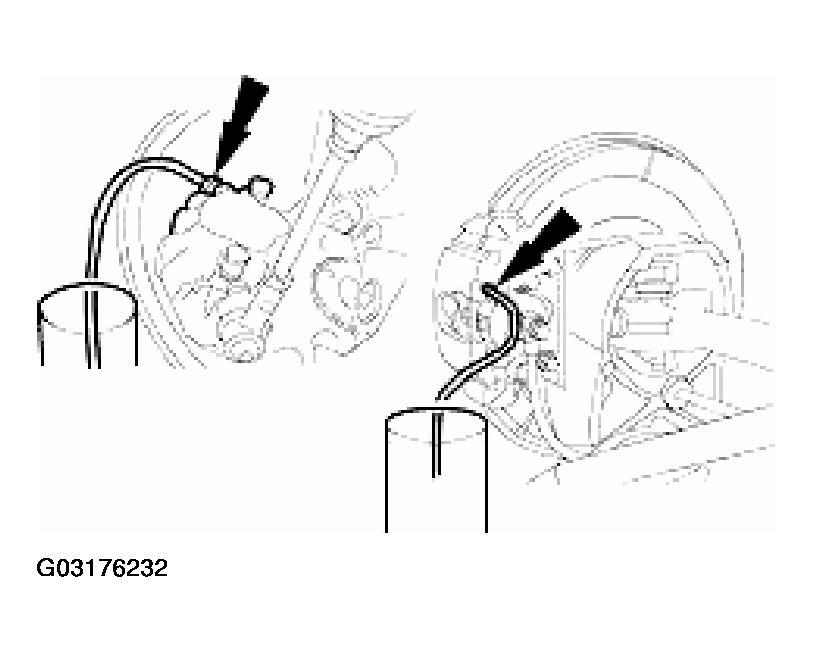

      Fig 3: Tightening Bleed Nipples
      G03176232Courtesy of JAGUAR CARS, INC.
  8. Disconnect electrical connectors from ABS/TCCM.
    • Pull plunger upwards. (1)
    • Disconnect electrical connector. (2)
    • Disconnect electrical connector. (3)

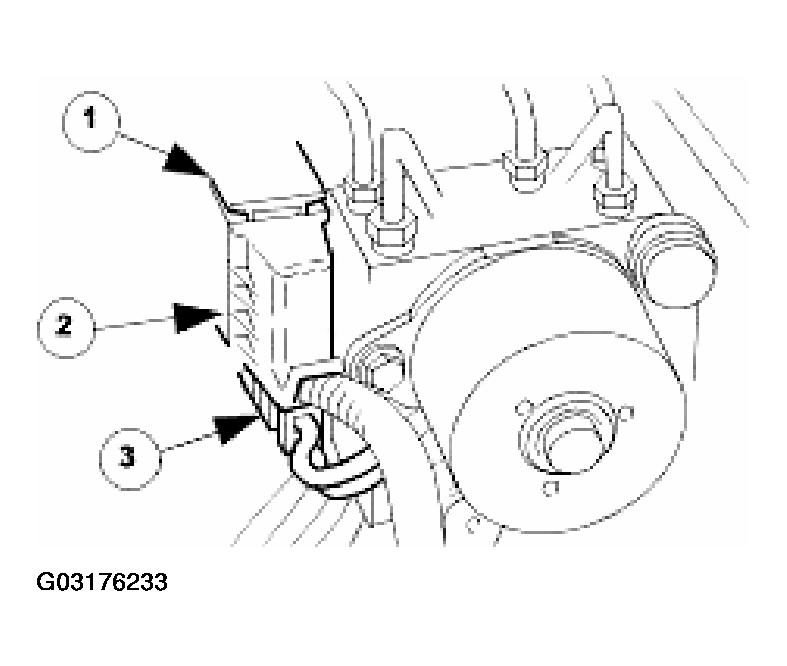

      Fig 4: Disconnecting ABS/TCCM Electrical Connectors
      G03176233Courtesy of JAGUAR CARS, INC.
  9. CAUTION: Remove brake fluid spillage immediately from paint work, with clean water.
  10. Position an absorbent cloth underneath the HCU to collect brake fluid spillage.
  11. NOTE: To minimize brake fluid loss, release the brake tubes from the HCU in the order shown.
  12. Release brake tubes from HCU.
    • Undo union nuts and release inlet brake tubes. (1)
    • Install plugs to HCU inlet ports and brake tubes. (2)
    • Undo union nuts and release outlet brake tubes. (1)
    • Install plugs to HCU outlet ports and brake tubes. (2)

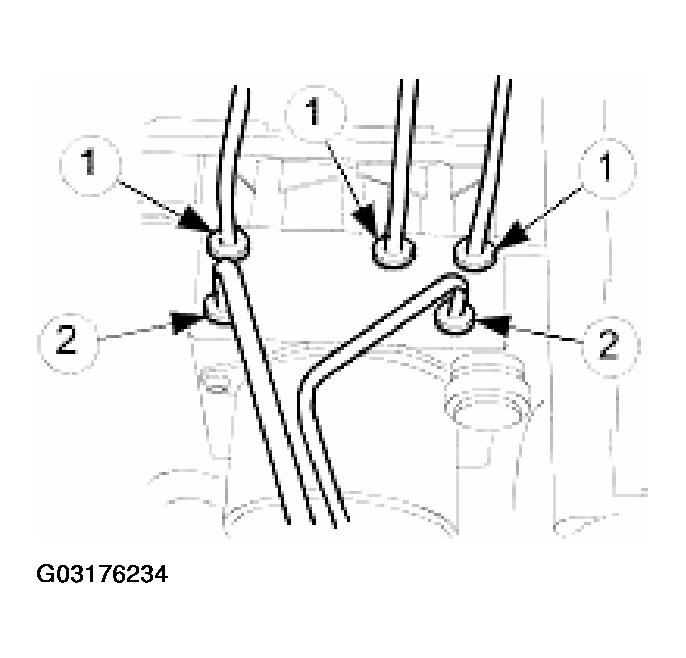

      Fig 5: Releasing Brake Tubes From HCU
      G03176234Courtesy of JAGUAR CARS, INC.
  13. Remove HCU from vehicle.
    • Remove bolts.
    • Taking care not to distort brake tubes remove HCU.

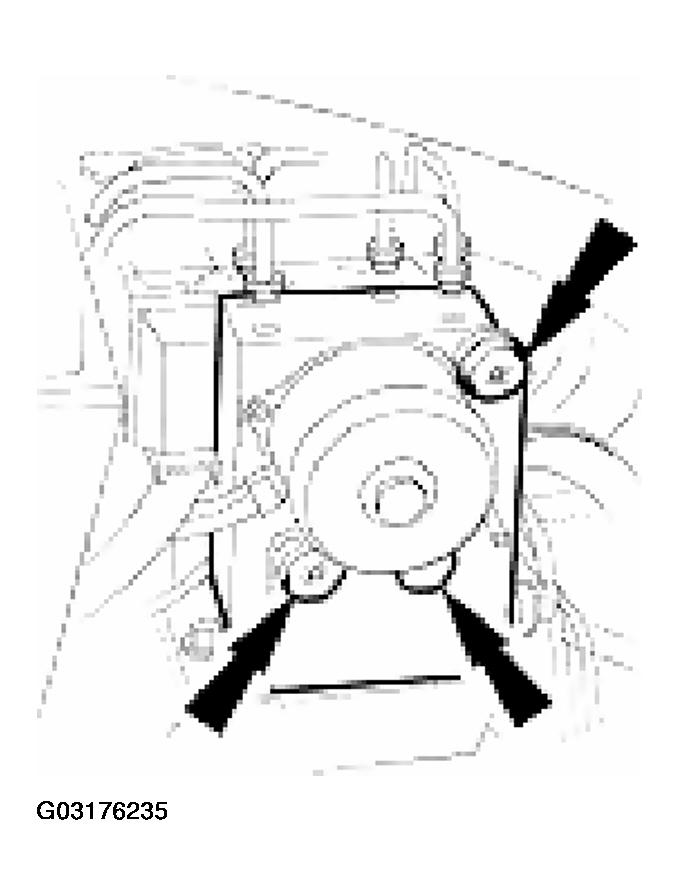

      Fig 6: Removing HCU From Vehicle
      G03176235Courtesy of JAGUAR CARS, INC.
  14. Remove ABS/TCCM from the HCU.
    • Place the HCU on a work bench. (1)
    • Disconnect electrical connector. (2)
    • Remove bolts. (3)
    • Remove ABS/TCCM.

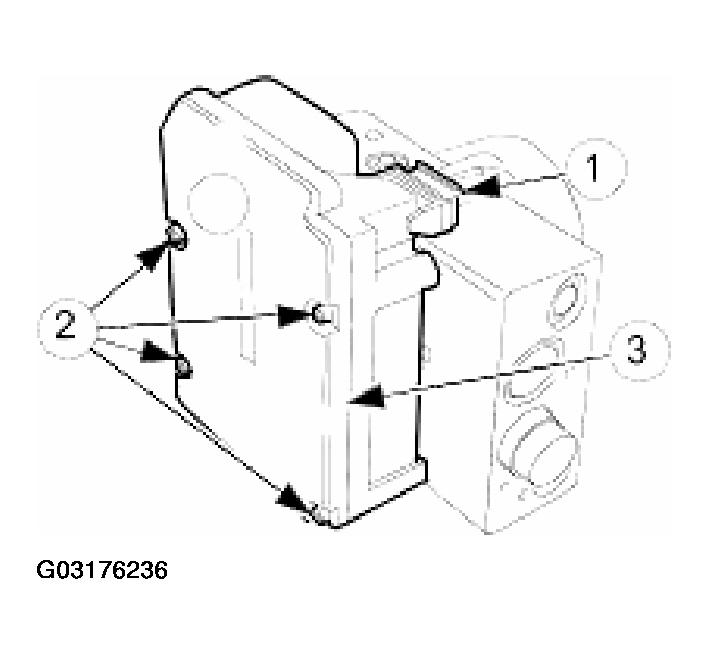

      Fig 7: Removing ABS/TCCM From HCU
      G03176236Courtesy of JAGUAR CARS, INC.
  15. Clean components and mating surfaces.
