Front Wheel Speed Sensor: Removal

  1. Raise front of vehicle and support on stands. Refer to LIFTING & JACKING .
  2. Remove wheel speed sensor.
    • Disconnect harness connector.
    • Remove bolt.

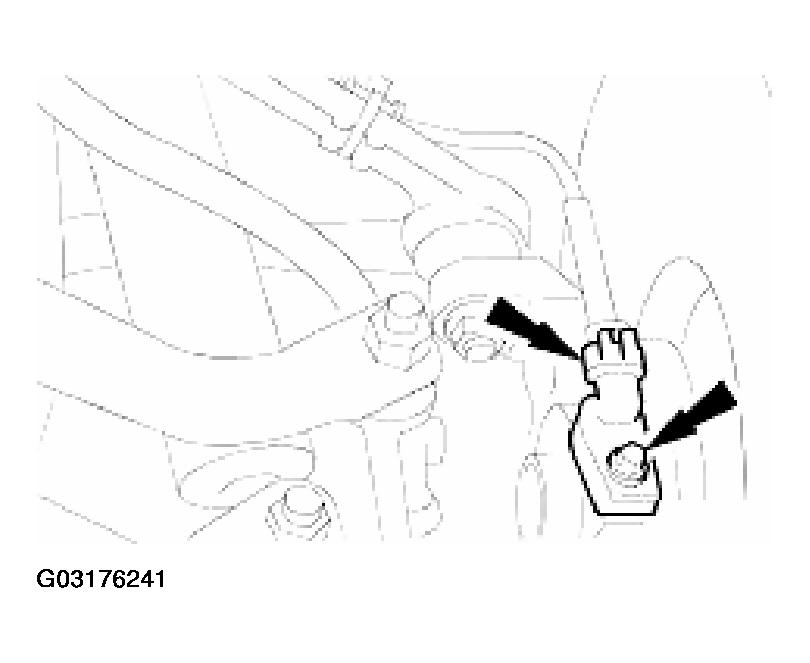

      Fig 1: Removing Wheel Speed Sensor
      G03176241Courtesy of JAGUAR CARS, INC.
  3. Clean components and mating surfaces.
