Wheel Speed Sensor Ring: Removal

CAUTION: Replacement of nuts and bolts: Various thread-locking devices are used on nuts and bolts throughout the vehicle. These devices restrict the number of times a nut or bolt can be used. See THREAD LOCKING DEVICES for information.

Open engine compartment and fit paintwork protectors to fenders.
Raise front of vehicle and support on stands. Refer to LIFTING & JACKING .
Remove front wheel. Refer to WHEELS & TIRES .
Remove front brake disc. Refer to FRONT DISC BRAKE ROTOR .
Remove vertical link and hub assembly. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY .

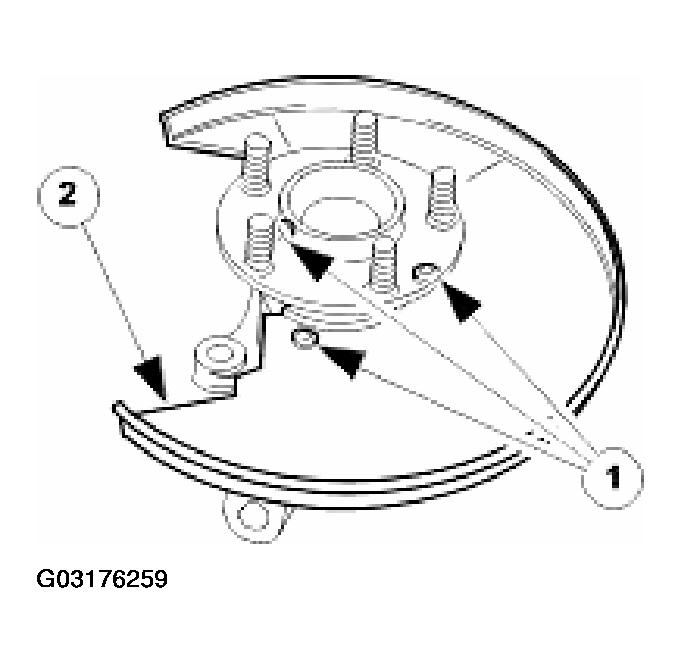

Remove brake-disc shield from vertical link.
- Remove screws. (1)
- Remove disc shield. (2)

  Fig 1: Removing Brake-Disc Shield From Vertical Link
  Courtesy of JAGUAR CARS, INC.

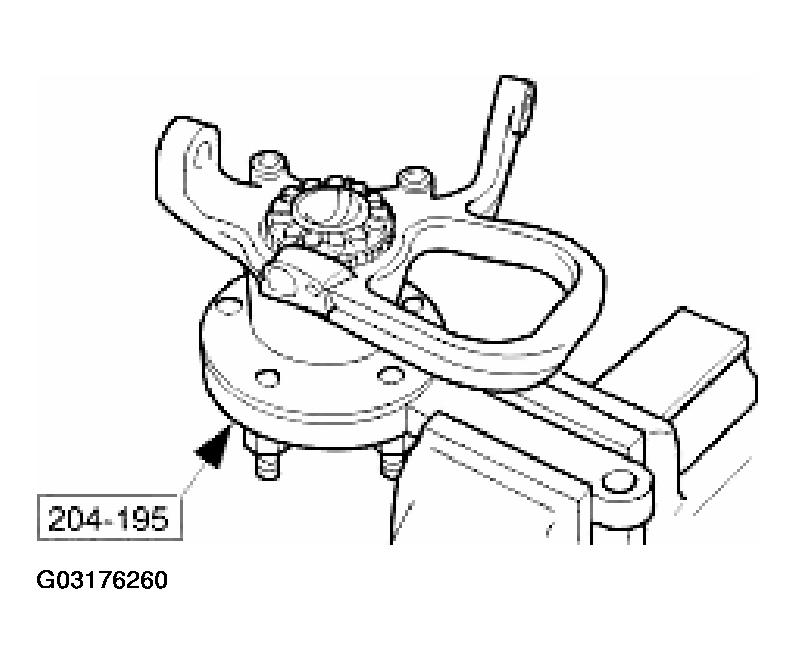

Using special tool, secure vertical link and hub assembly in a vice.
- Secure special tool in a vice.
- Position hub in tool.
- Fit and tighten wheel nuts.

  Fig 2: Securing Vertical Link And Hub Assembly In A Vice
  Courtesy of JAGUAR CARS, INC.

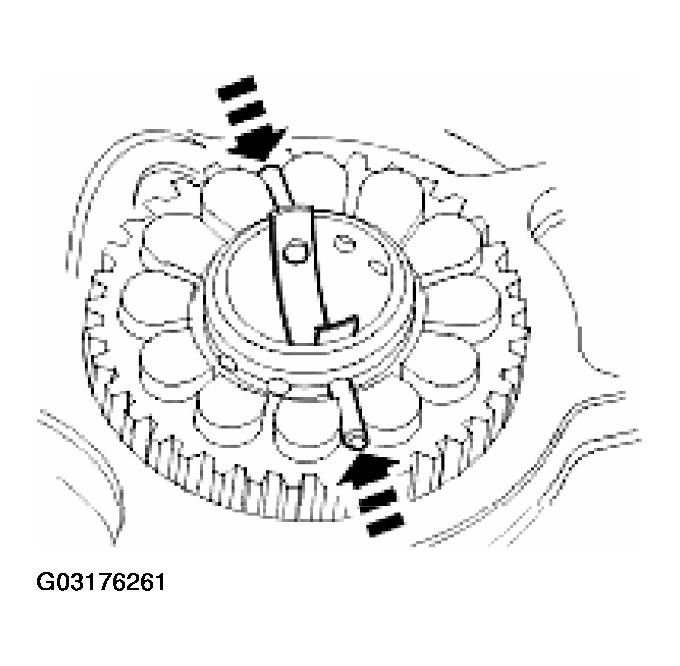

Remove rotor nut spring-clip.

Fig 3: Removing Rotor Nut Spring-Clip
Courtesy of JAGUAR CARS, INC.

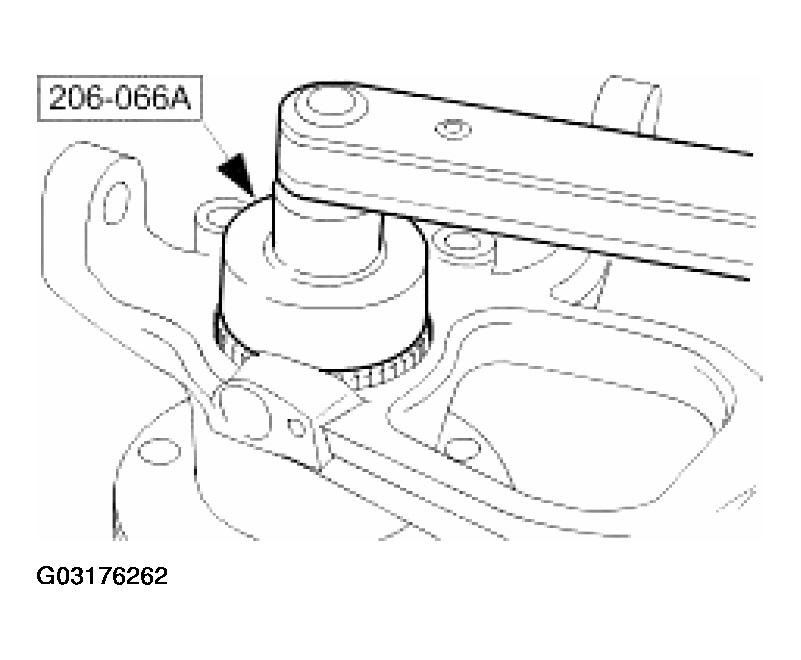

Using special tool remove rotor nut.
