Component Locations

Component Locations

Component	Location
Battery	In Luggage Compartment. See Fig 1 .
Generator	On Right Front Of Engine. See Fig 2
Generator Suppression Module	On Right Inner Panel In Engine Compartment, Adjacent To Generator. See Fig 3 .
High Power Protection Module	In Luggage Compartment. See Fig 4 .
Starter Motor	On Right Rear Of Engine. See Fig 5 .

Fig 1: Locating Battery

G00311053

Courtesy of JAGUAR CARS, INC.

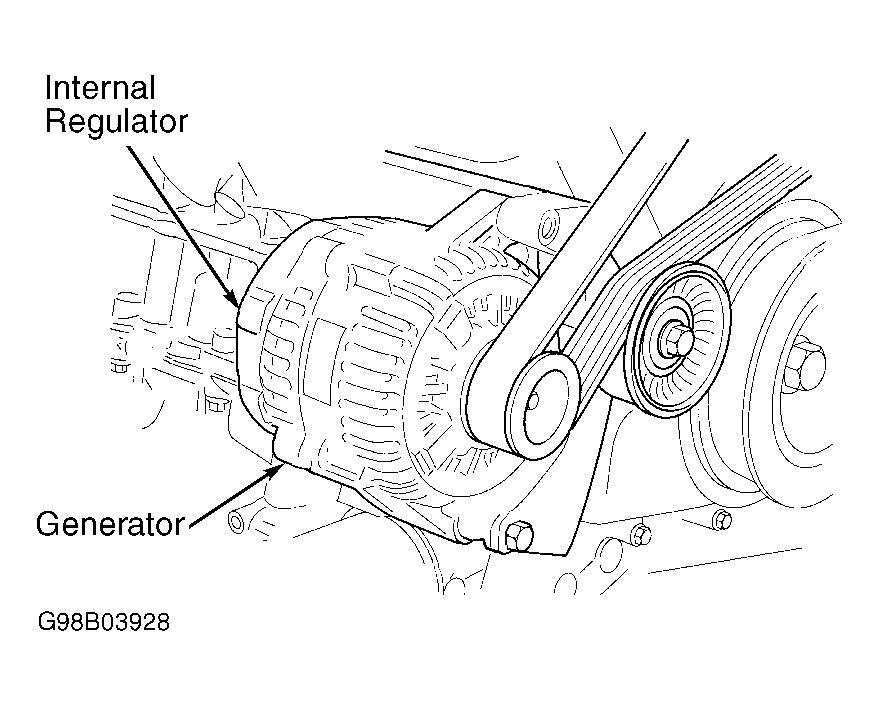

Fig 2: Locating Nippondenso Type L3B-HE Generator

G98B03928

Courtesy of AUDI OF AMERICA, INC.

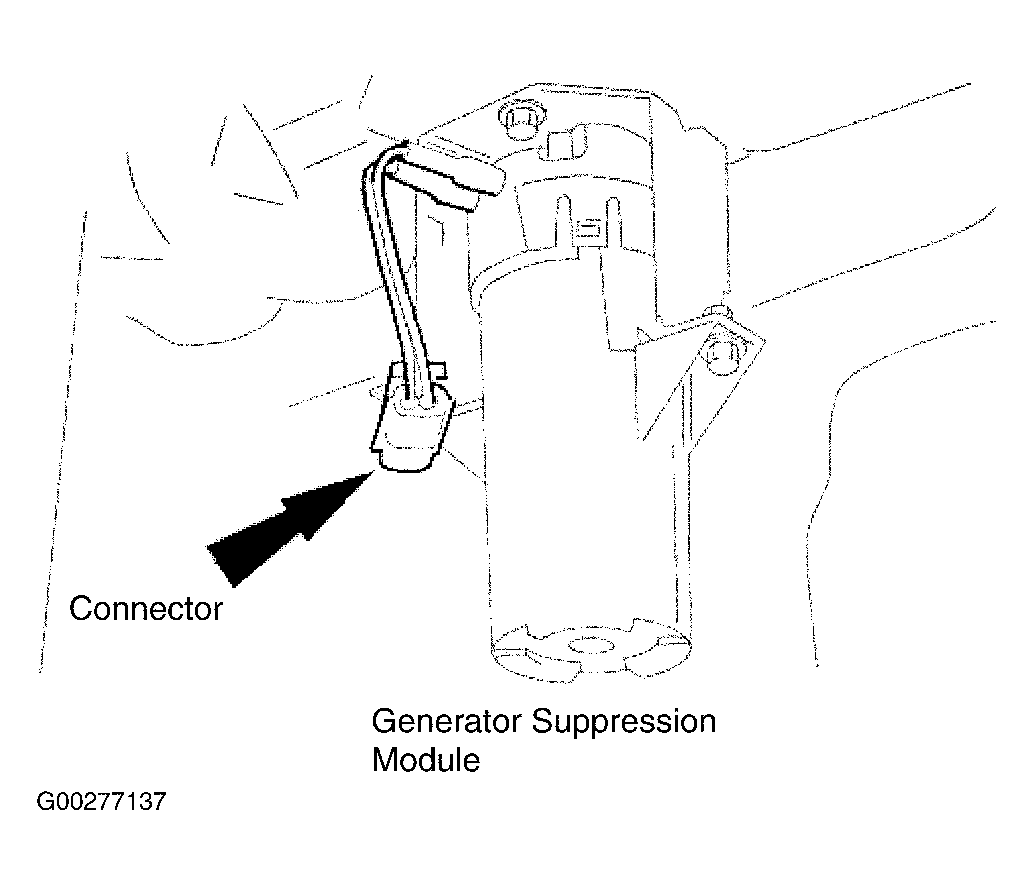

Fig 3: Locating Generator Suppression Module

G00277137

Courtesy of JAGUAR CARS, INC.

Fig 4: Locating High Power Protection Module

G00290053

Courtesy of JAGUAR CARS, INC.

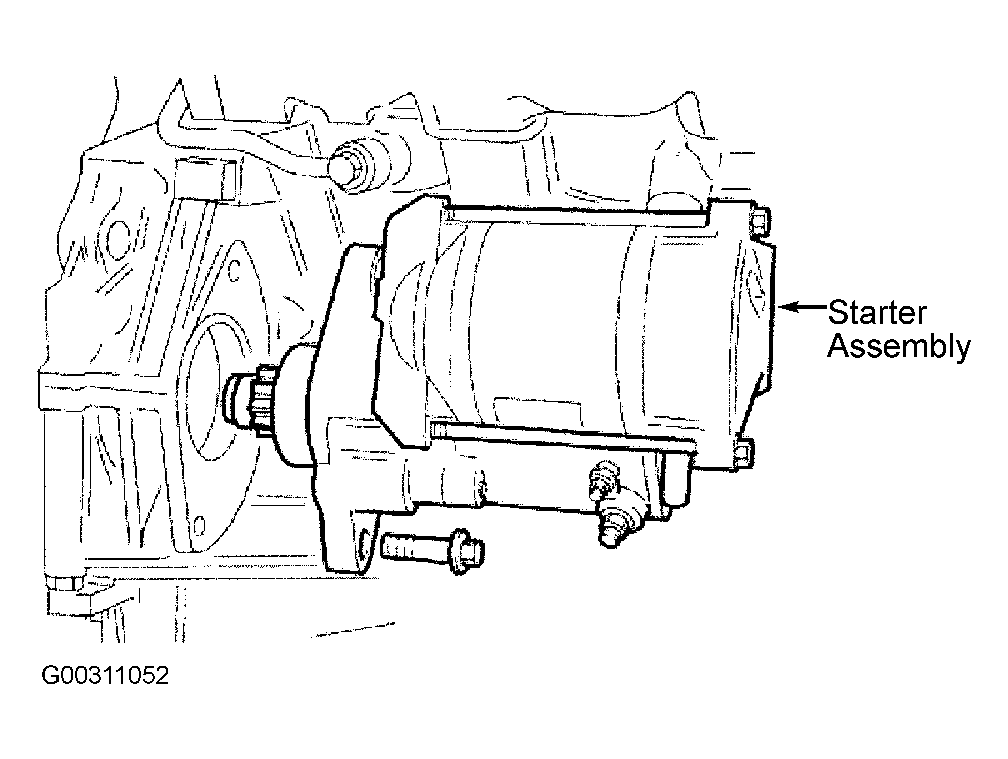

Fig 5: Locating Starter Motor

G00311052

Courtesy of JAGUAR CARS, INC.
