Control Units

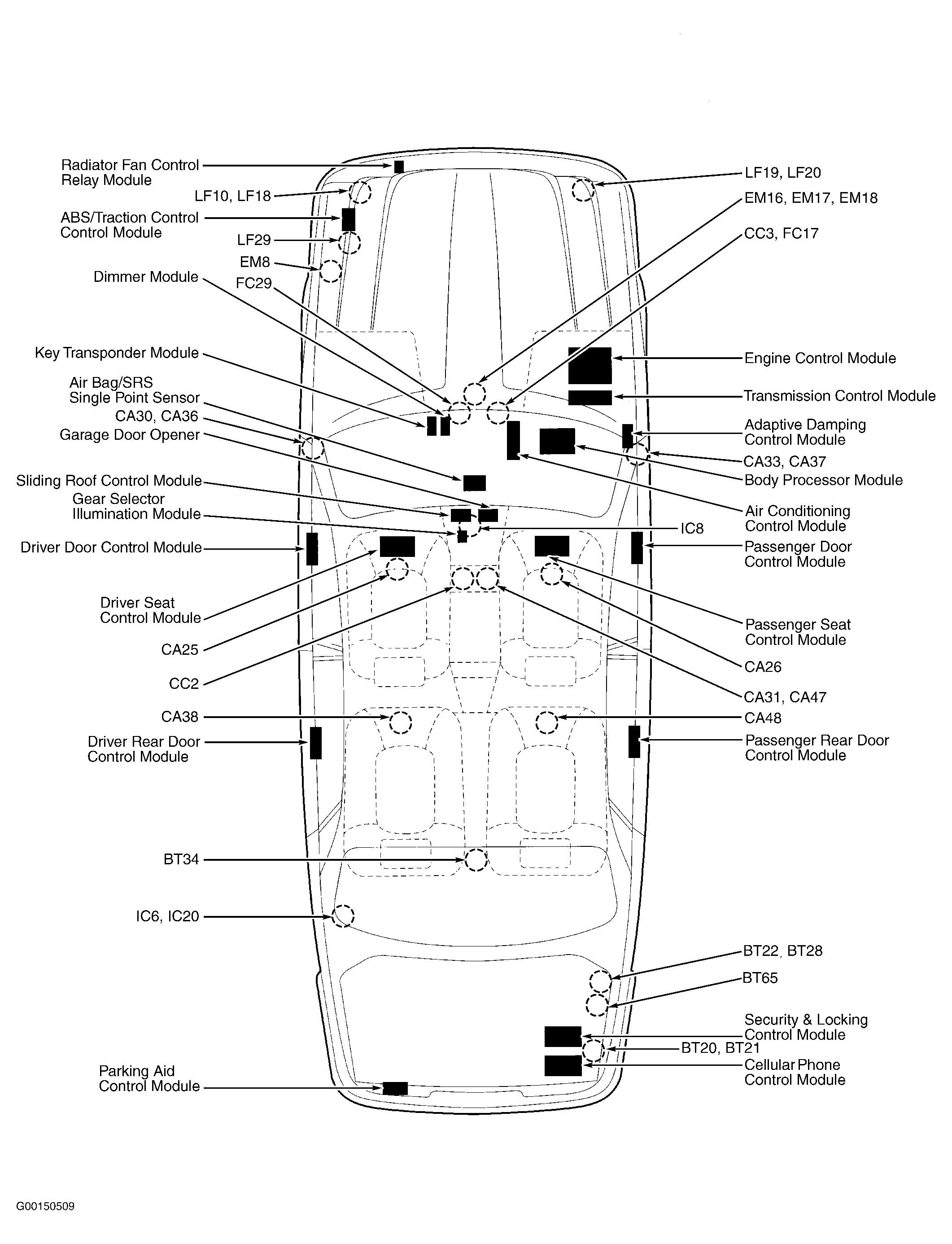

CONTROL UNITS LOCATION

Component	Component Location
ABS/Traction Control, Control Module	At left side of engine compartment, behind headlight assembly. See Figure .
Adaptive Damping Control Module	Behind glove box, next to blower motor. See Figure .
Air Bag/SRS Single Point Sensor	Below center console assembly. See Figure .
Air Conditioning Control Module A/CCM	At right side of transmission tunnel, near glove box. See Figure .
Body Processor Module	Behind glove box. See Figure .
Cellular Phone Control Module	At right side of trunk. See Figure .
Dimmer Module	Behind left side of dash, below instrument cluster. See Figure .
Driver Door Control Module	In driver's door. See Figure .
Driver Rear Door Control Module	In left rear door. See Figure .
Driver Seat Control Module	Under driver's seat. See Figure .
Engine Control Module	At right rear side of engine compartment, in control module enclosure. See Figure .
Gear Selector Illumination Module	In center console assembly. See Figure .
High Power Protection Module	In trunk, next to battery.
Key Transponder Module	Below instrument cluster. See Figure .
Navigation Control Module	At left side of trunk.
Parking Aid Control Module	At left side of trunk. See Figure .
Passenger Door Control Module	In right front door. See Figure .
Passenger Rear Door Control Module	In right rear door. See Figure .
Passenger Seat Control Module	Under right front seat. See Figure .
Power Assisted Steering Control Module	Behind left kick panel.
Radiator Fan Control Relay Module	At left front of engine compartment, near crush tube. See Figure .
Rain Sensing Module	At right rear side of engine compartment, in control module enclosure.
Security & Locking Control Module	Below trunk fuse box. See Figure .
Sliding Roof Control Module	In roof console. See Figure .
Suppression Module	At right front of engine compartment.
Transmission Control Module	At right rear side of engine compartment, in control module enclosure. See Figure .
