Component Locations

COMPONENT LOCATIONS

Component Location
Battery In Right Rear Of Luggage Compartment. See Fig 1.
Body Processor Module (BPM) Behind Right Side Of Instrument Panel. See Fig 2.
Engine Compartment Fuse Box In Left Front Of Engine Compartment. See Fig 3.
Engine Control Module In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 2.
Engine Management Fuse Box In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 3.
High Power Protection Module In Trunk, To The Right Front Of Spare Tire. See Fig 3.
Ignition Key Transponder Exciter On Steering Column, Near Ignition Key Cylinder. Fig 4.
Ignition Switch On Steering Column, Behind Ignition Key Cylinder. See .Fig 5
Key Transponder Module Center Of Vehicle, Behind Instrument Panel. See Fig 2.
Not-In-Park Switch On Gear Selector. See Fig 6.
Park/Neutral Switch On Gear Selector. See Fig 6.
Starter Motor Lower Right Rear Of Engine. See Fig 7.
Starter Relay In Control Module Enclosure, Right Rear Of Engine Compartment. See Fig 8.
Trunk Fuse Box In Right Rear Of Luggage Compartment, Next To Battery. See Fig 3.

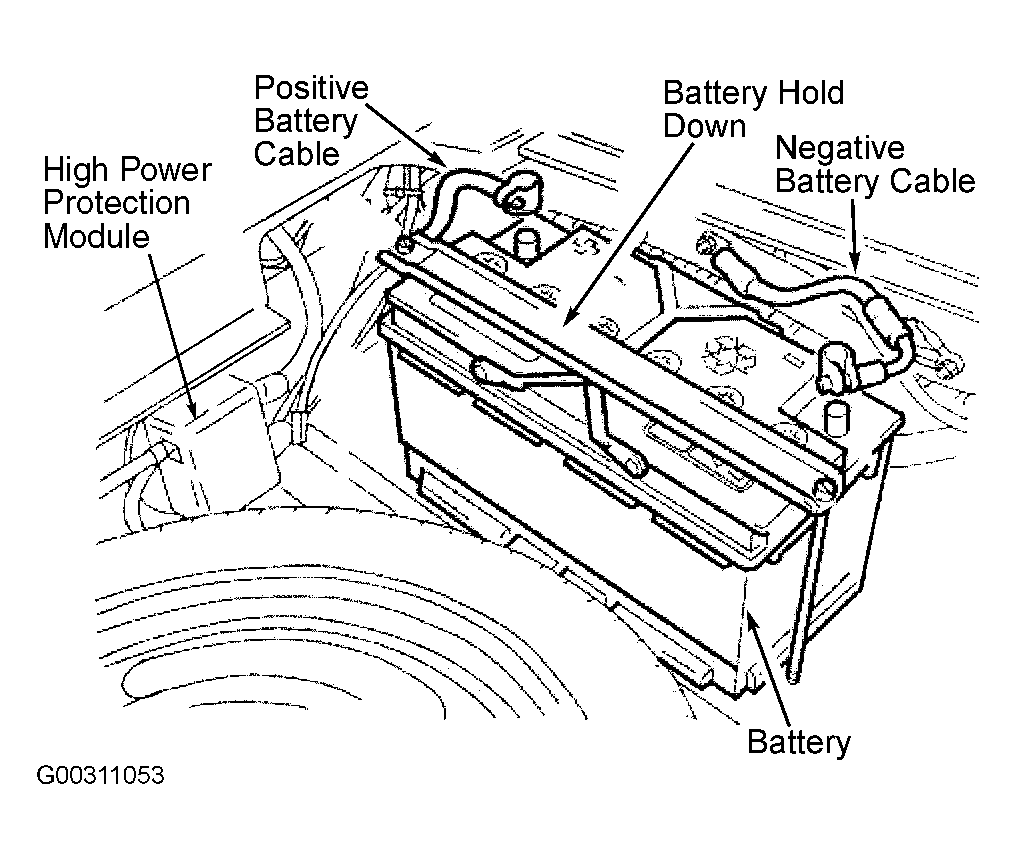

Fig 1: Locating Battery
G00311053Courtesy of JAGUAR CARS, INC.

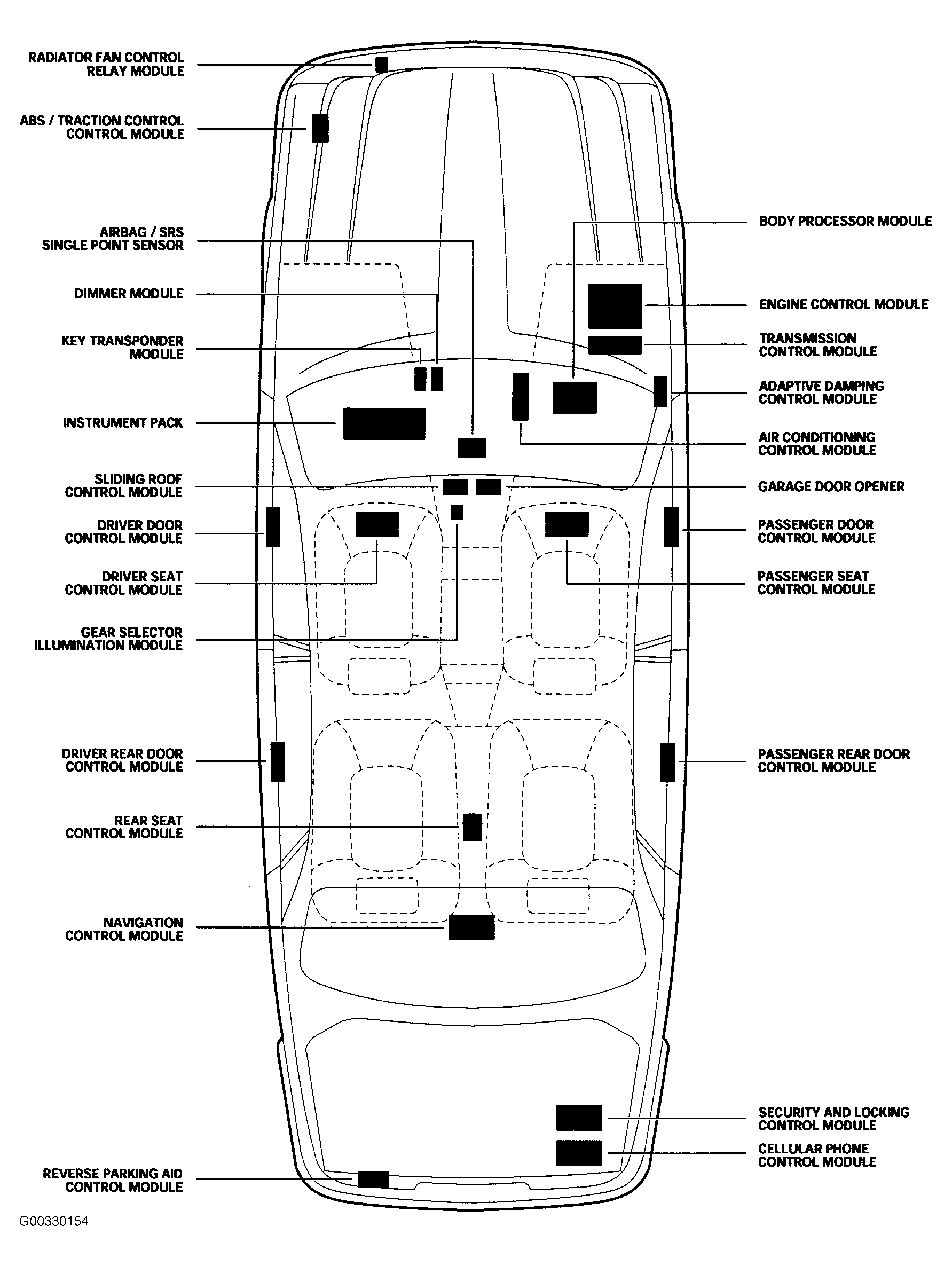

Fig 2: Locating Control Modules
G00330154Courtesy of JAGUAR CARS, INC.
Fig 3: Locating Fuse Boxes & High Power Protection Module
G00290053Courtesy of JAGUAR CARS, INC.

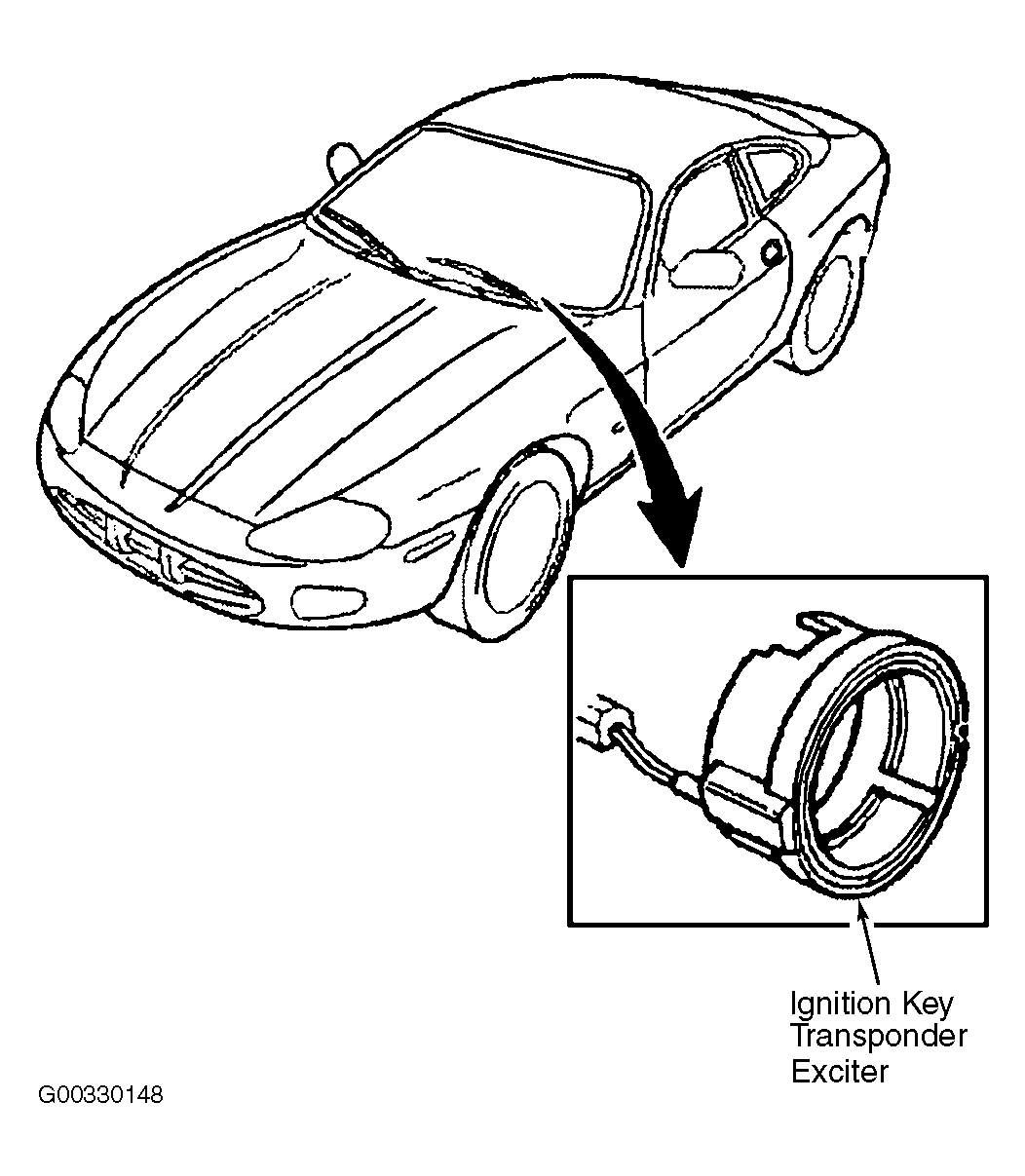

Fig 4: Locating Ignition Key Transponder Exciter
G00330148Courtesy of JAGUAR CARS, INC.

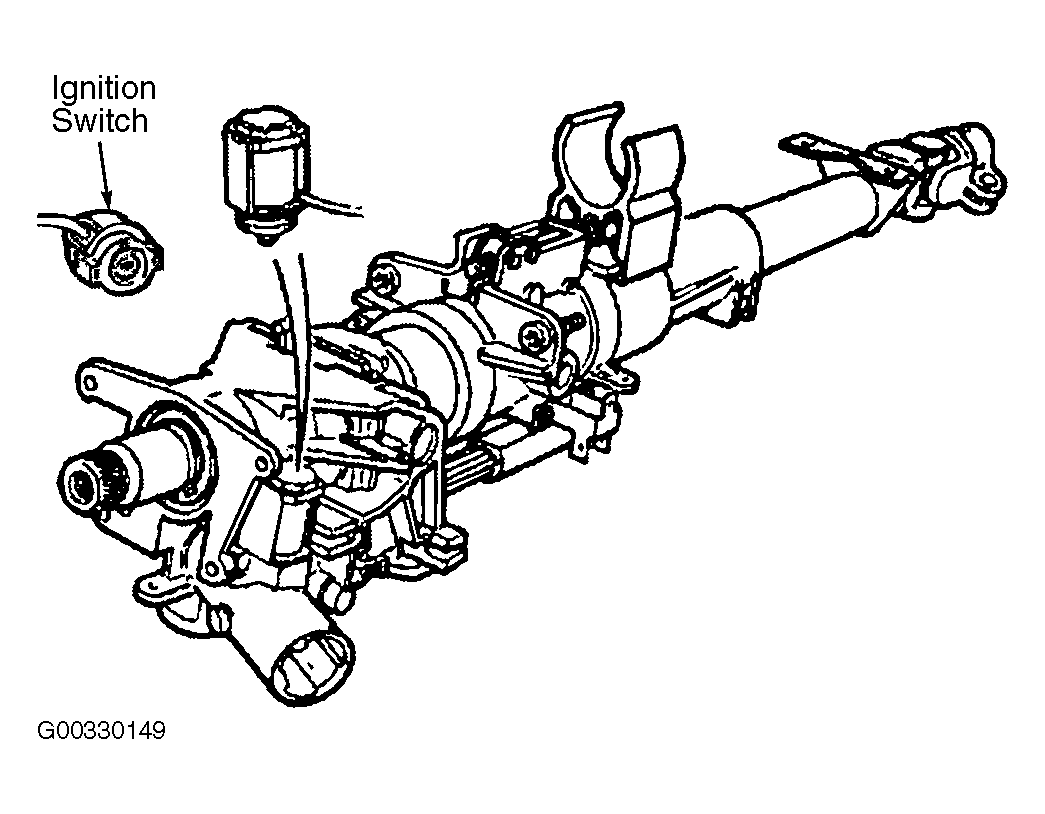

Fig 5: Locating Ignition Switch
G00330149Courtesy of JAGUAR CARS, INC.

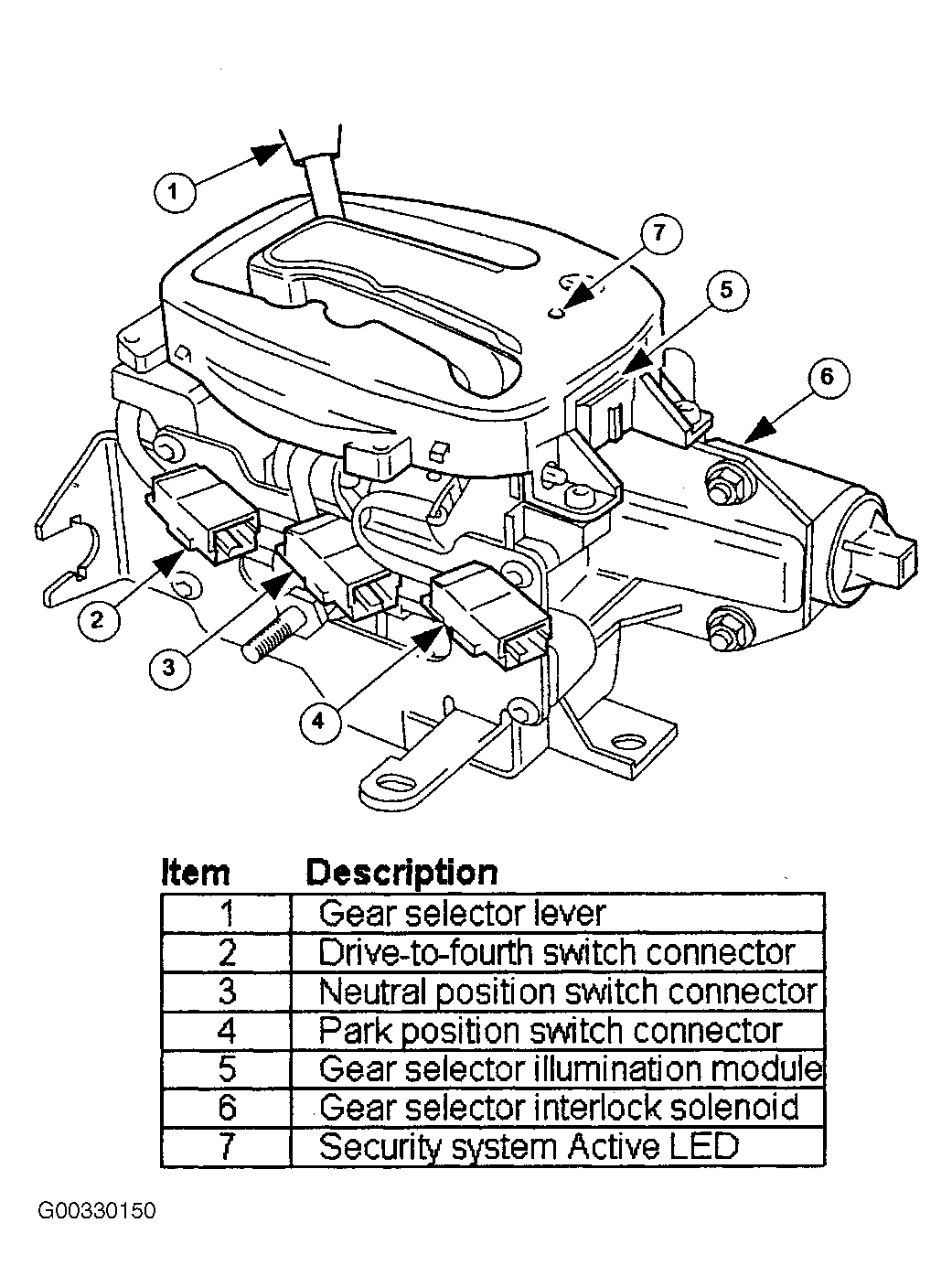

Fig 6: Locating Gear Selector Switches
G00330150Courtesy of JAGUAR CARS, INC.

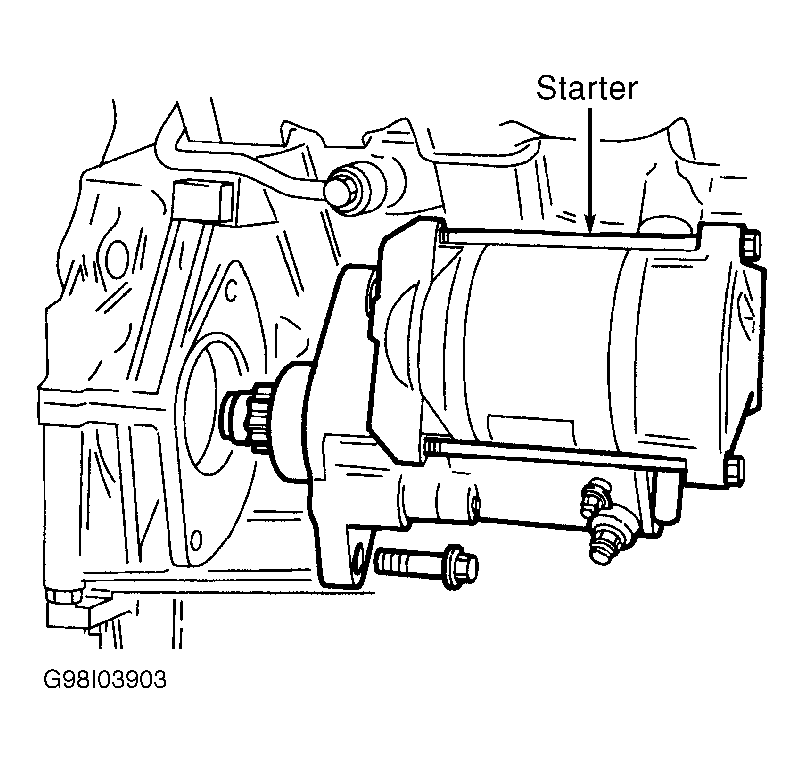

Fig 7: Locating Starter
G98I03903Courtesy of JAGUAR CARS, INC.
Fig 8: Locating Starter Relay
G00290062Courtesy of JAGUAR CARS, INC.
