Operators Selector Module ("J" Gate): Notes

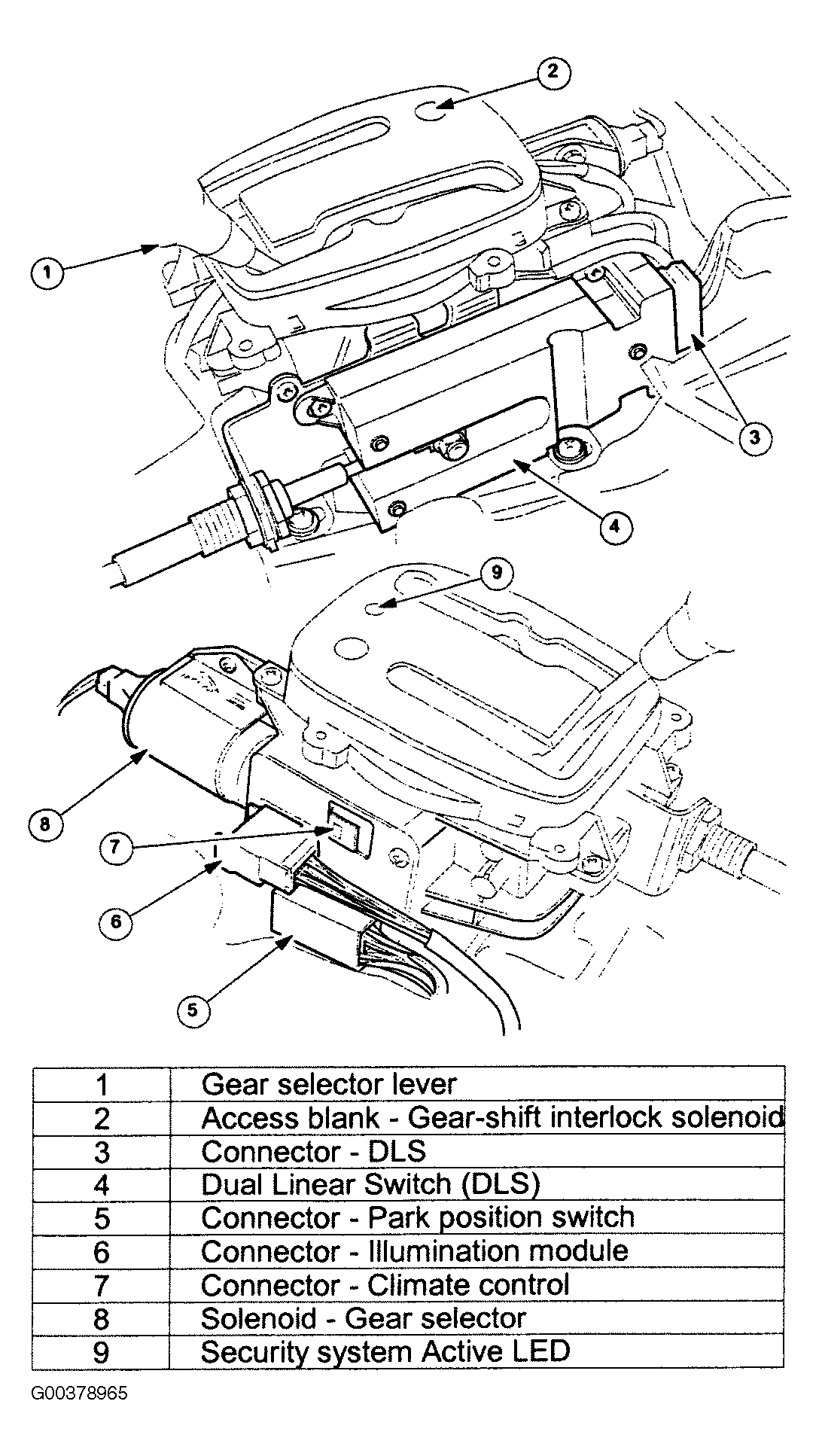

Fig 1: Identifying Operator's Selector Module "J" Gate Components

Courtesy of JAGUAR CARS, INC.

Gear selector positions are:

• P Transmission mechanically locked, starting available.
• R Reverse gear.
• N Neutral gear, no power to the rear wheels (starting available).
• D Drive gear, all 5 forward gears available. See Performance Mode Push-Button  .
• 4 Upshift to 4th gear only.
• 3 Upshift to 3rd gear only.
• 2 Upshift to 2nd gear only.
