Connector Identification

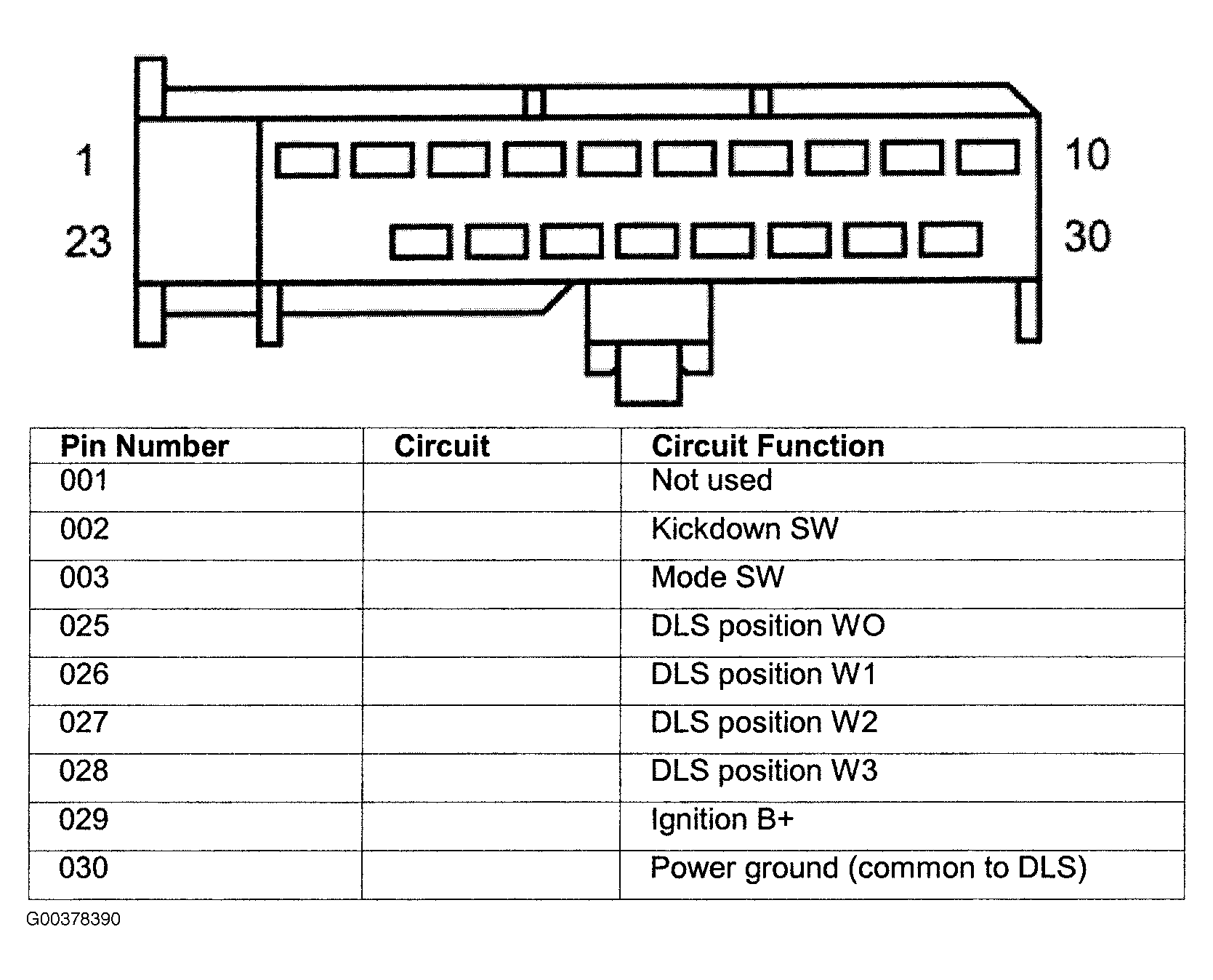

Fig 1: Identifying Connector EM061 Terminals

G00378390

Courtesy of JAGUAR CARS, INC.

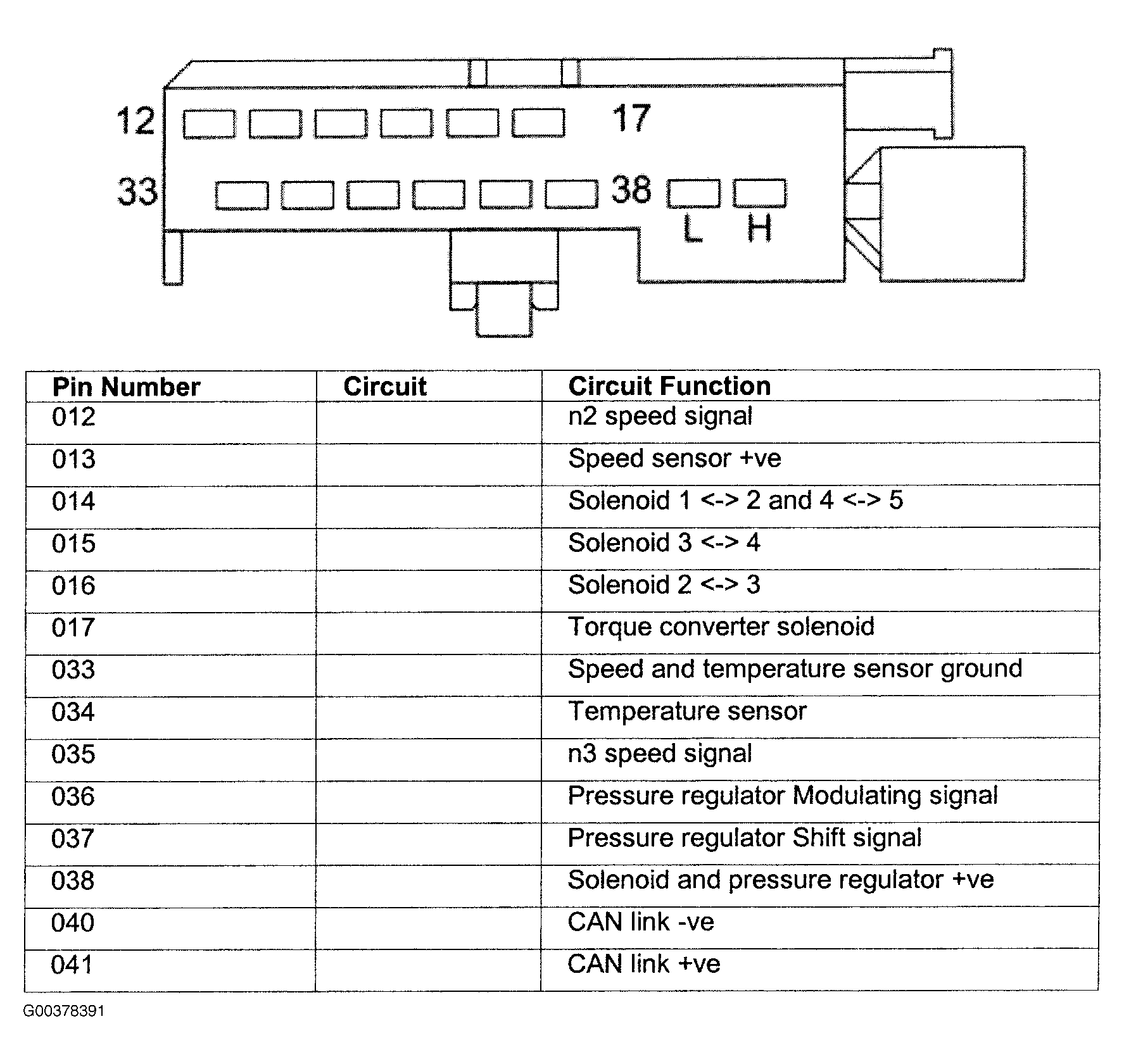

Fig 2: Identifying Connector EM062 Terminals

G00378391

Courtesy of JAGUAR CARS, INC.

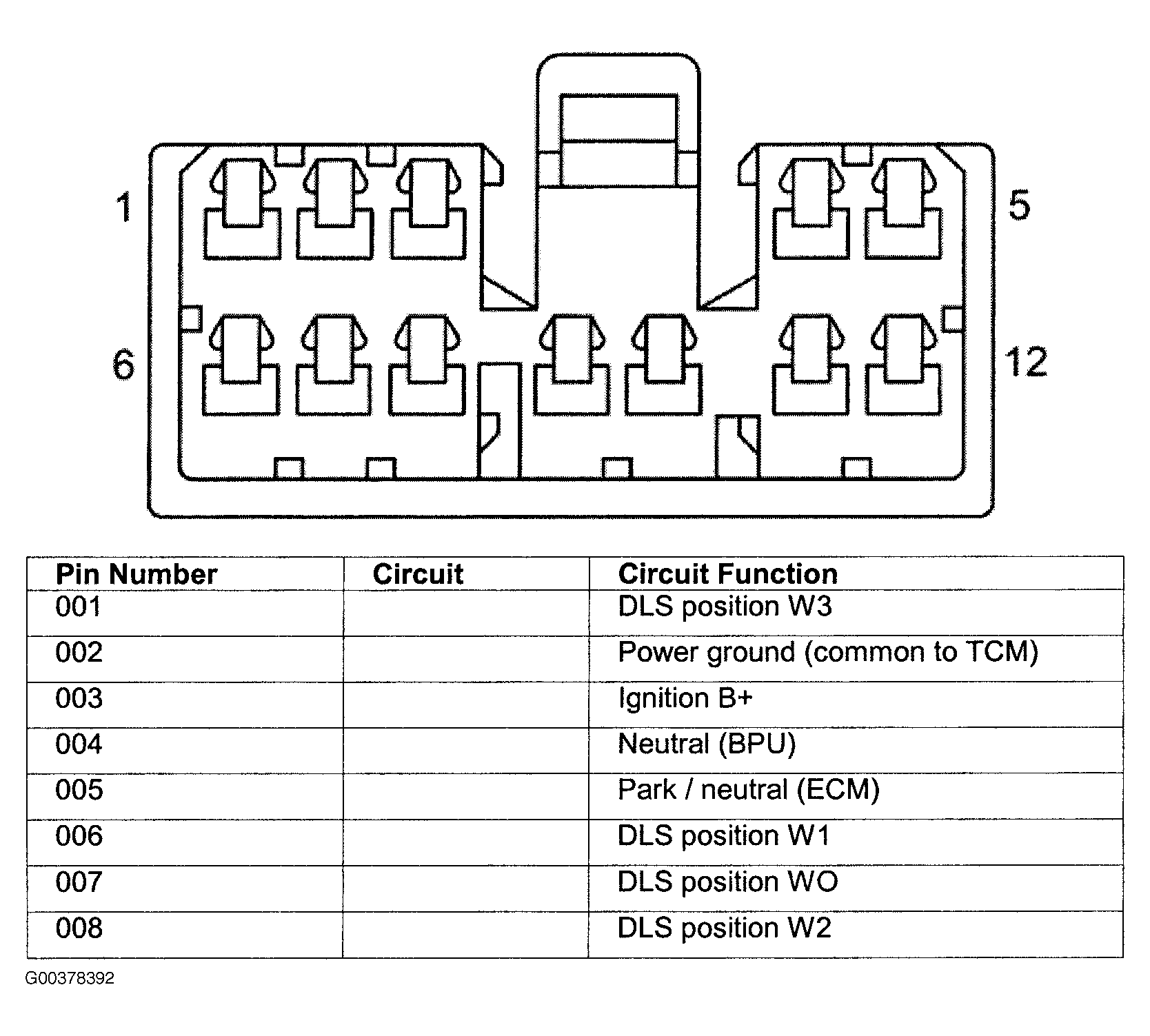

Fig 3: Identifying Connector CC008 Terminals

G00378392

Courtesy of JAGUAR CARS, INC.

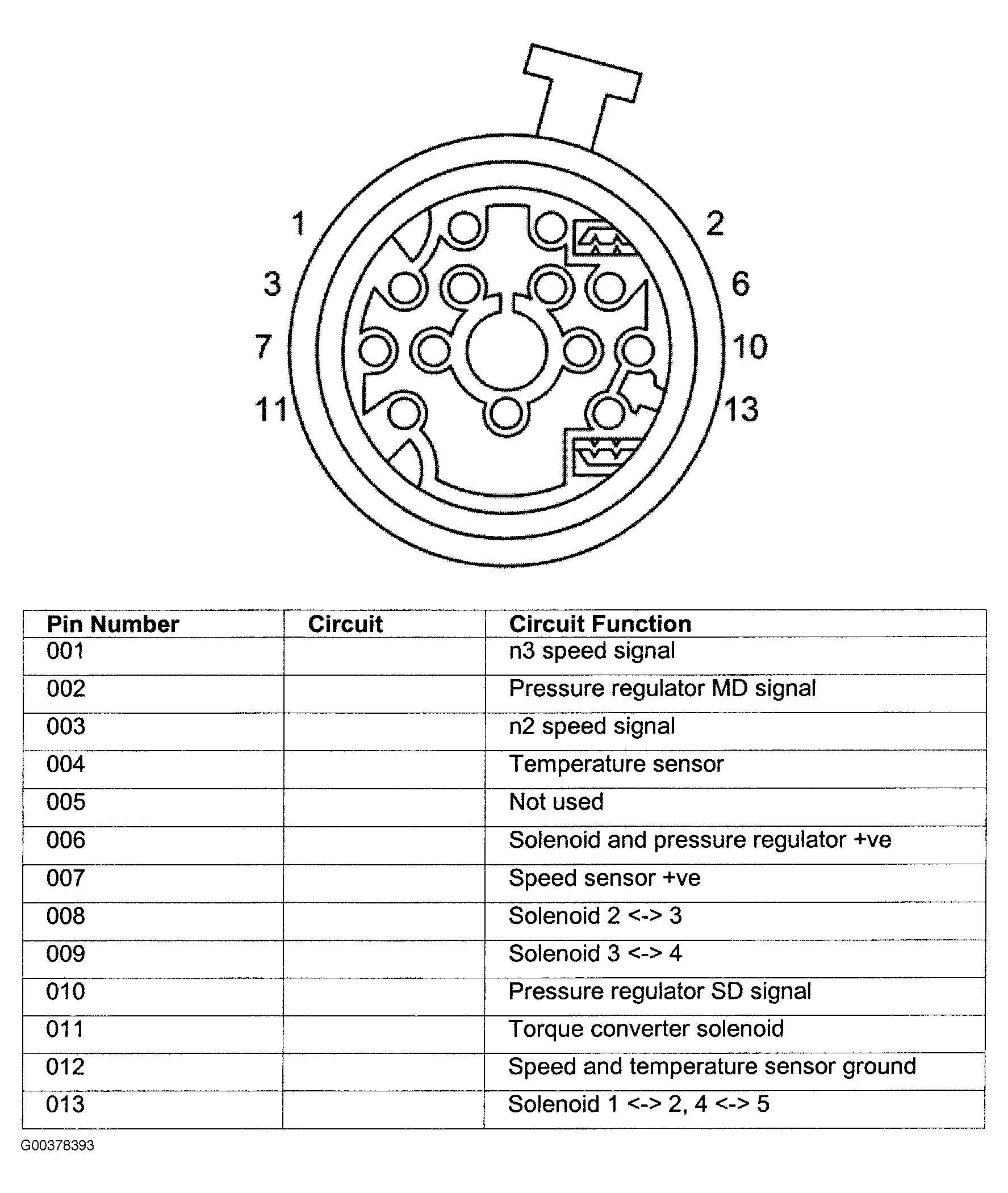

Fig 4: Identifying Connector GB001 Terminals

G00378393

Courtesy of JAGUAR CARS, INC.

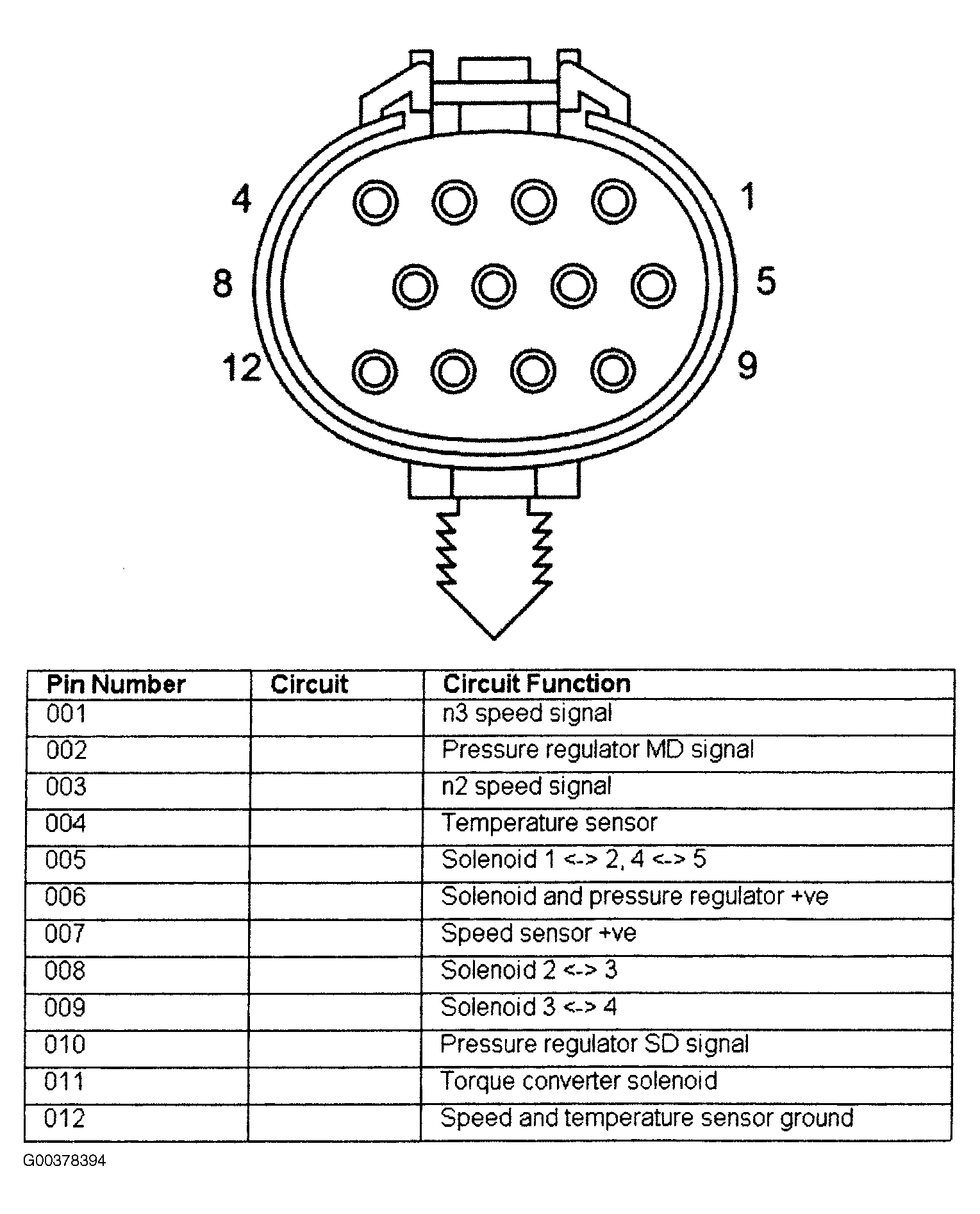

Fig 5: Identifying Connector EM044 Terminals

G00378394

Courtesy of JAGUAR CARS, INC.
