Removal & Installation

  1. Drain the transmission fluid. See TRANSMISSION FLUID DRAINING .
  2. Remove the transmission unit. See REMOVAL .
  3. Remove the torque converter from the transmission unit. See TORQUE CONVERTER .
  4. Remove the front pump seal.
    • Remove and discard the seal retaining snap-ring.
    • Using a "Snap-on" oil seal puller, remove and discard the seal.

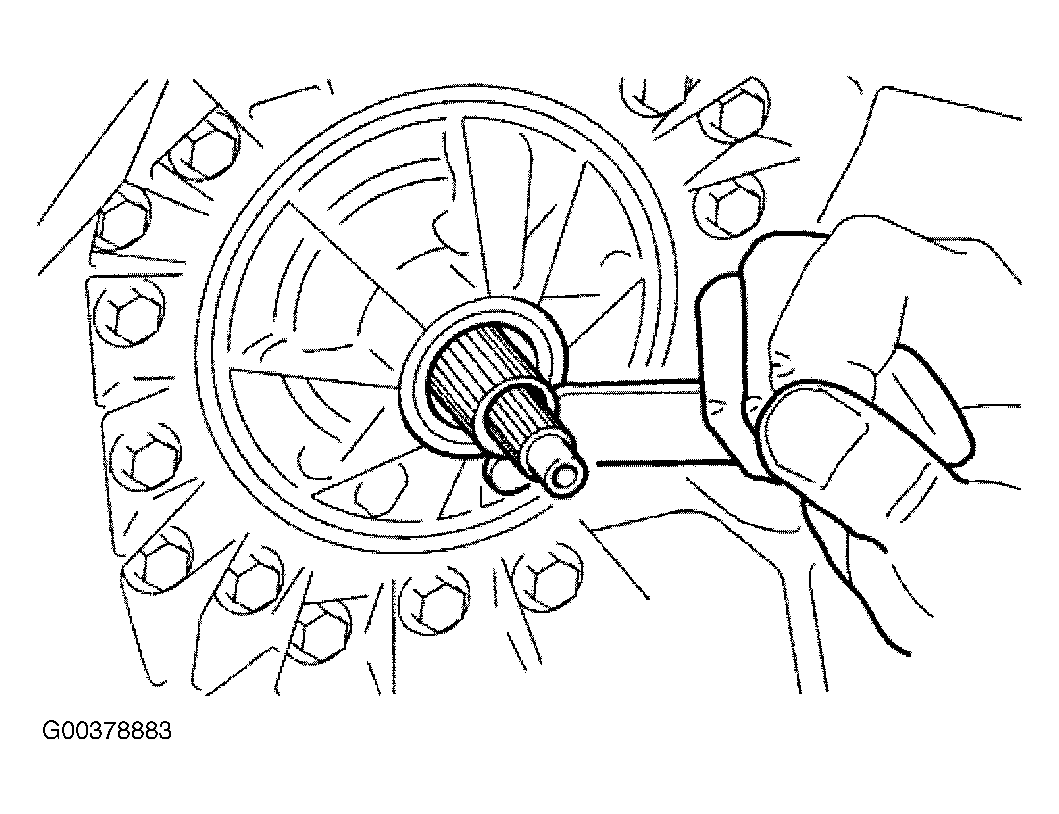

    Fig 1: Removing Input Oil Seal
    G00378883Courtesy of JAGUAR CARS, INC.
  5. Fit the oil seal.
    1. Lubricate the housing seal bore.
    2. Lubricate the outside diameter of the seal.
    3. Using seal replacer 307-379, drive the seal squarely into place.

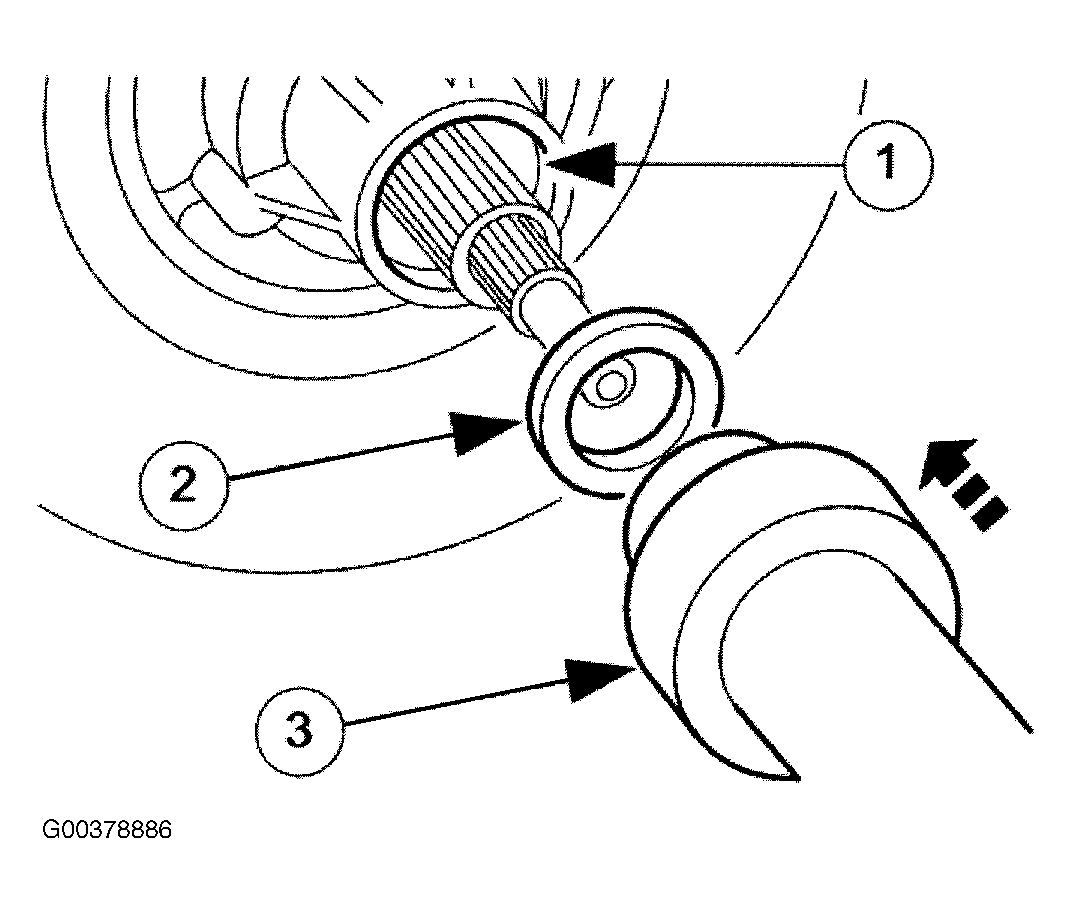

    Fig 2: Installing Input Oil Seal
    G00378886Courtesy of JAGUAR CARS, INC.
  6. Installation is the reverse of the removal procedure.
    • Install the transmission unit; refer to INSTALLATION , noting especially the alignment instructions.
