Accelerator Cable: Removal

Disconnect the battery ground cable.
Remove the windshield and wiper arm assembly.
Remove the plenum chamber finisher, Refer to COWL VENT SCREEN .
Disconnect the throttle cable from the electronic throttle assembly quadrant.
- Rotate the throttle quadrant to release the cable. (1)
- Disconnect the throttle cable from the electronic throttle assembly quadrant. (2)

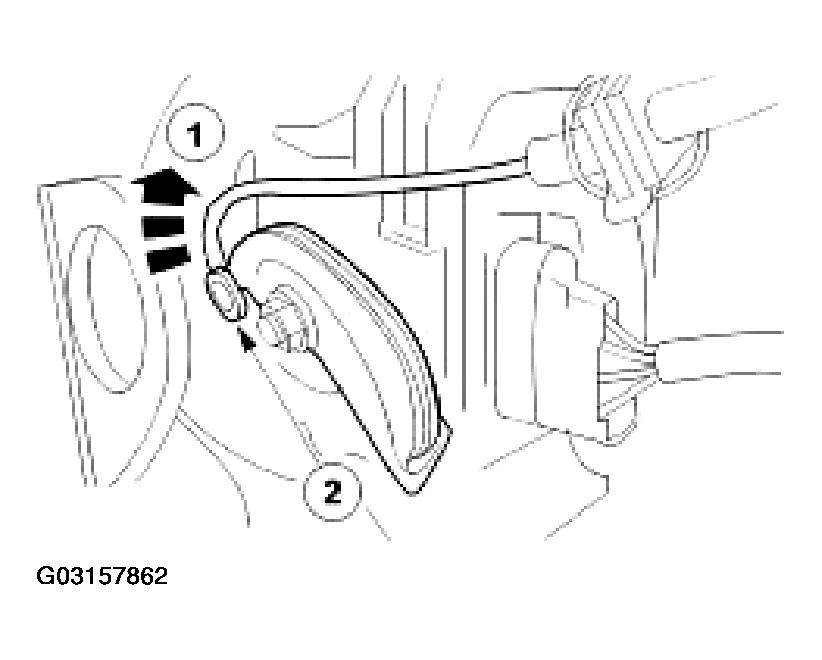

Fig 1: Disconnecting Throttle Cable
Courtesy of JAGUAR CARS, INC.
Displace the outer cable from the abutment bracket.
- Cut the retaining strap. (1)
- Displace the outer cable from the abutment bracket. (2)

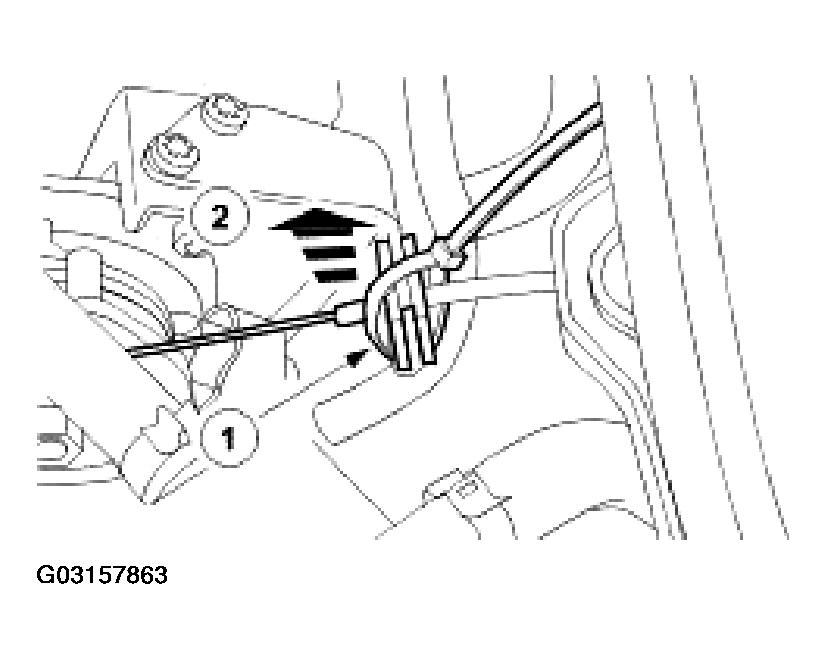

Fig 2: Removing Outer Cable From Abutment Bracket
Courtesy of JAGUAR CARS, INC.
Release the grommet from the plenum chamber closing plate and route the cable/grommet through the aperture.

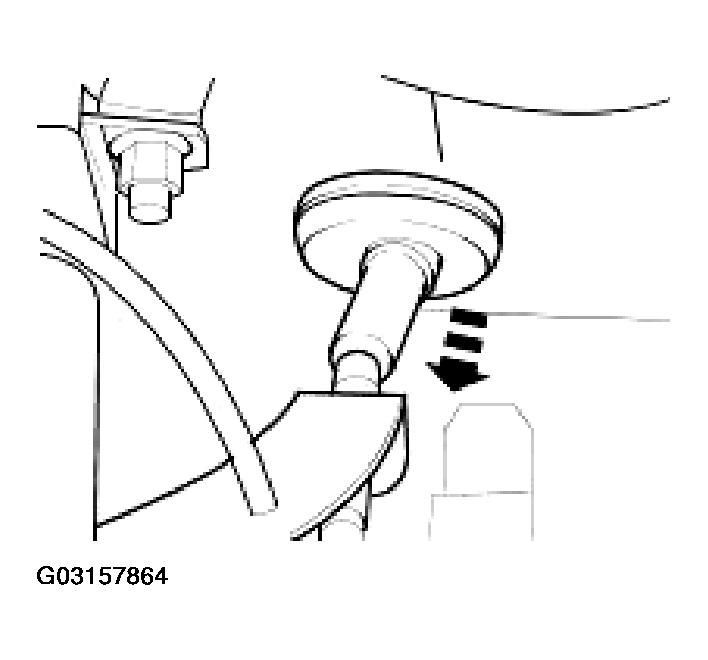

Fig 3: Routing Cable/Grommet Through Aperture
Courtesy of JAGUAR CARS, INC.
Remove the throttle cable from the bulkhead retaining clip.

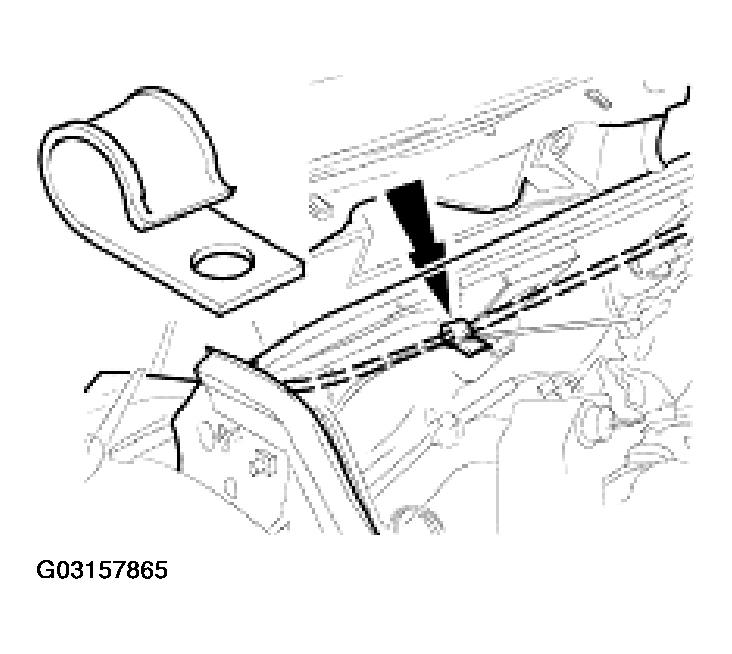

Fig 4: Removing Throttle Cable From Bulkhead Retaining Clip
Courtesy of JAGUAR CARS, INC.
Route the throttle cable through the water deflector bracket.

Fig 5: Routing Throttle Cable Through Water Deflector Bracket
Courtesy of JAGUAR CARS, INC.
Ensure the drivers seat is fully rearward.
Remove the A-Pillar lower trim pad.
Disconnect the throttle cable from the pedal.
- Remove the throttle cable split pin.
- Remove the throttle cable retaining sleeve.
- Disconnect the throttle cable.

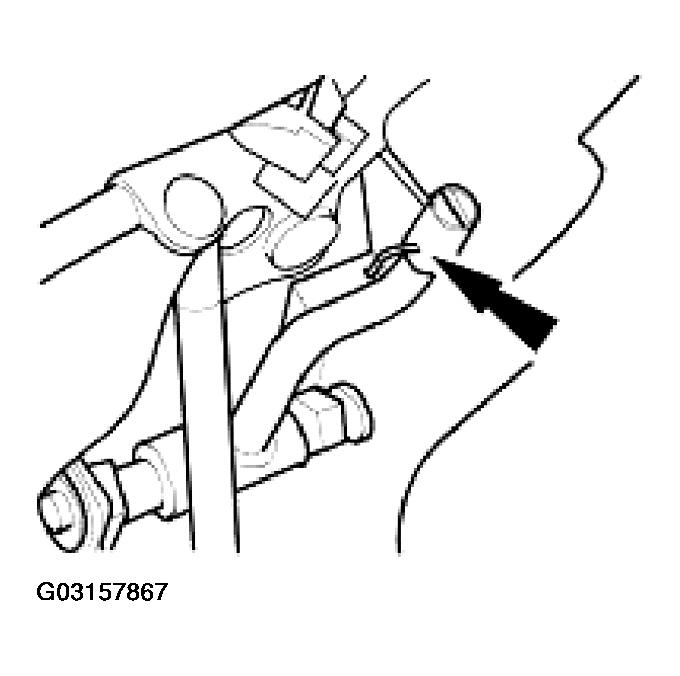

Fig 6: Disconnecting Throttle Cable From Pedal
Courtesy of JAGUAR CARS, INC.
From under the hood, remove the cable from the vehicle.
