Ignition Coil-On-Plug RH: Installation

  1. Installation is a reversal of the removal procedure.

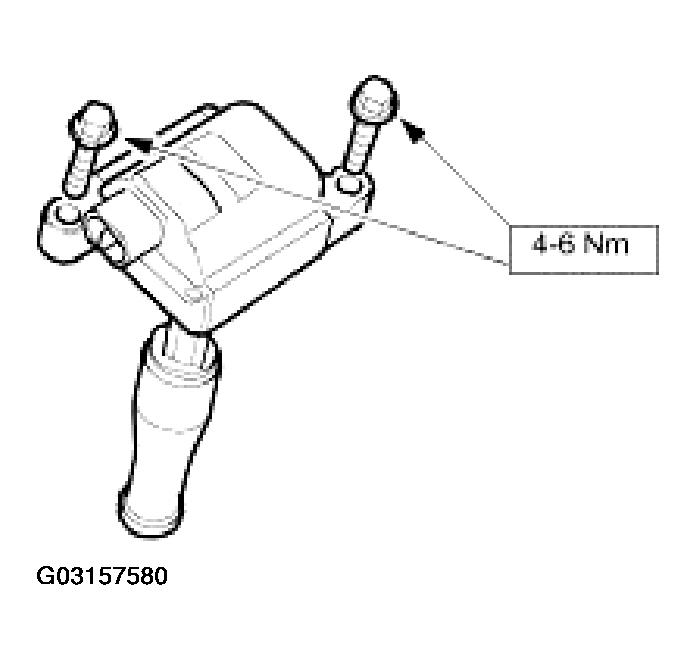

    Fig 1: Installing Ignition Coil (RH)
    G03157580Courtesy of JAGUAR CARS, INC.
  2. 2.

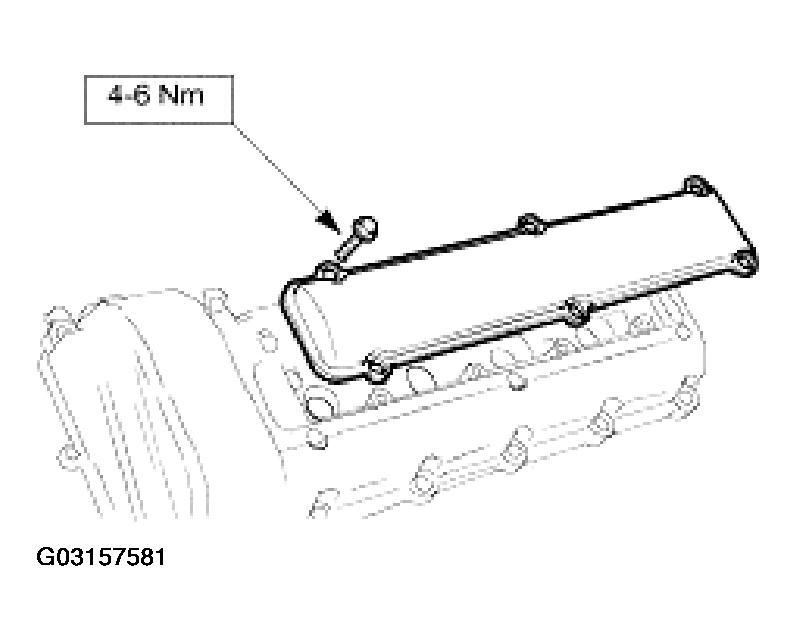

    Fig 2: Installing Coil On-Plug Cover (RH)
    G03157581Courtesy of JAGUAR CARS, INC.
