TCM Connector Pin Identity Chart For EM007

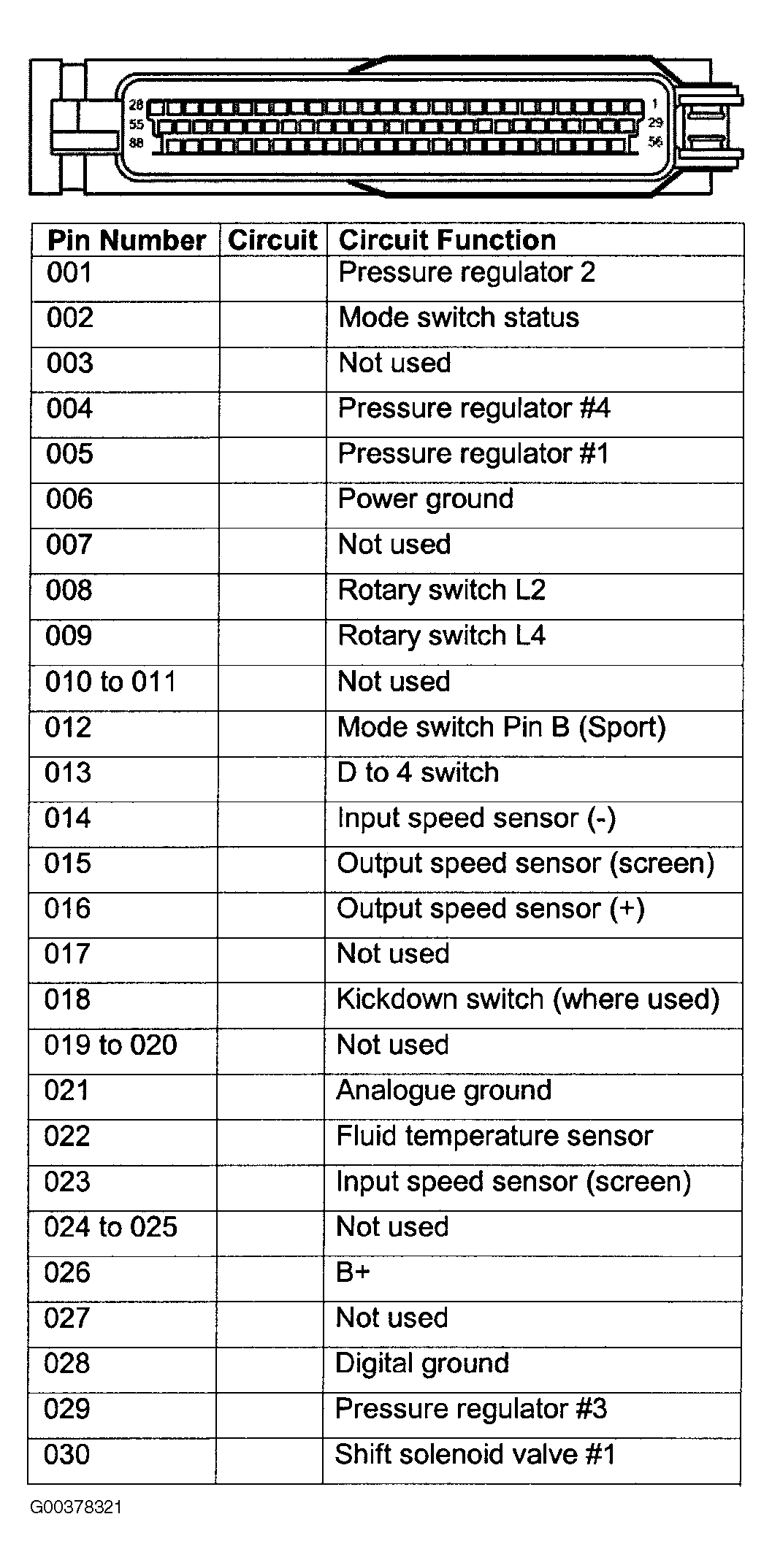

Fig 1: Identifying TCM Connector Terminals (1 Of 2)
G00378321Courtesy of JAGUAR CARS, INC.
Fig 2: Identifying TCM Connector Terminals (2 Of 2)
G00378322Courtesy of JAGUAR CARS, INC.
