Transmission Connector Pin Identity Chart For EM046

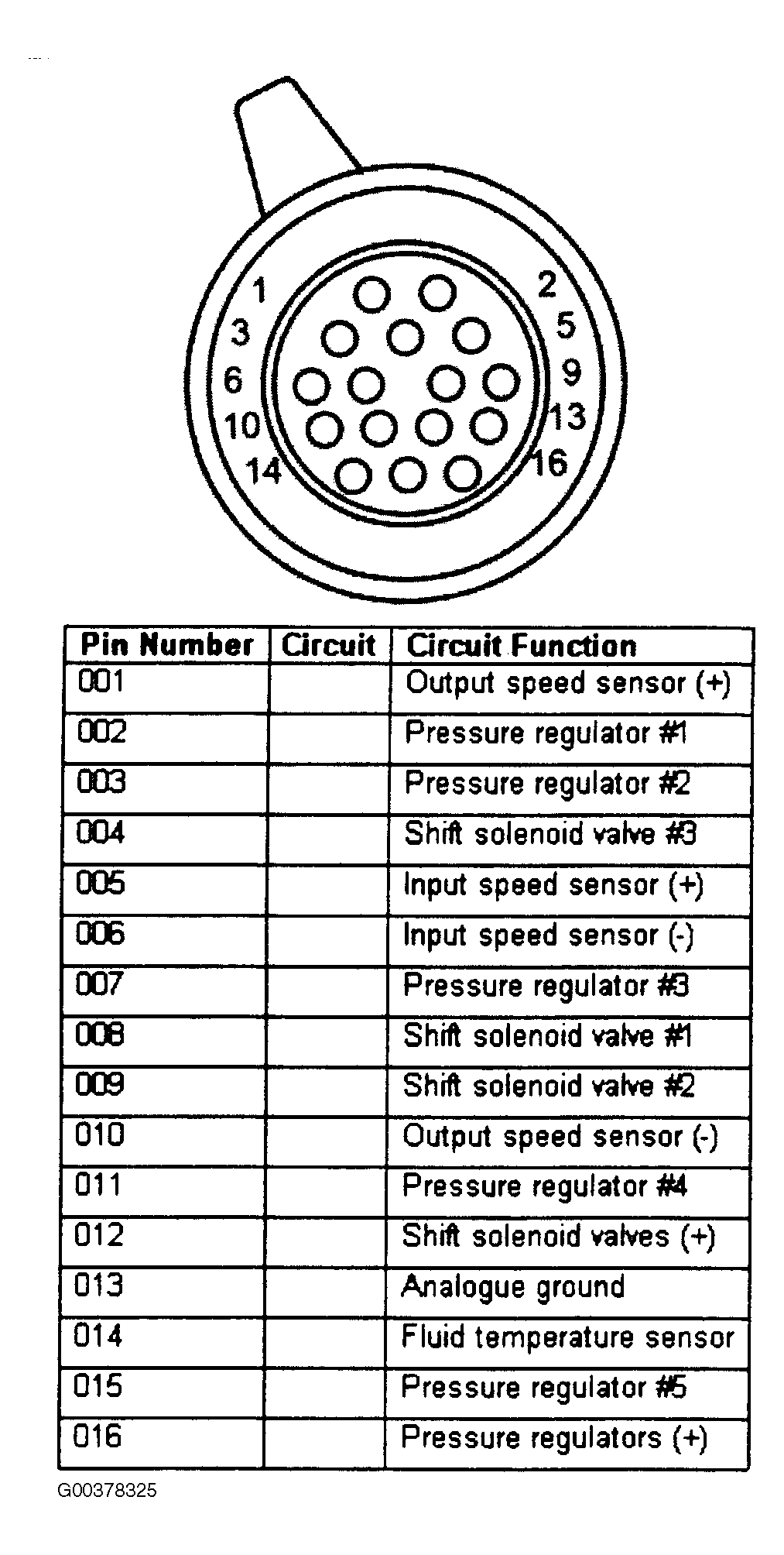

Fig 1: Identifying Transmission Connector Terminals
G00378325Courtesy of JAGUAR CARS, INC.
