Transmission Rotary Switch Connector Pin Identity Chart For EM047

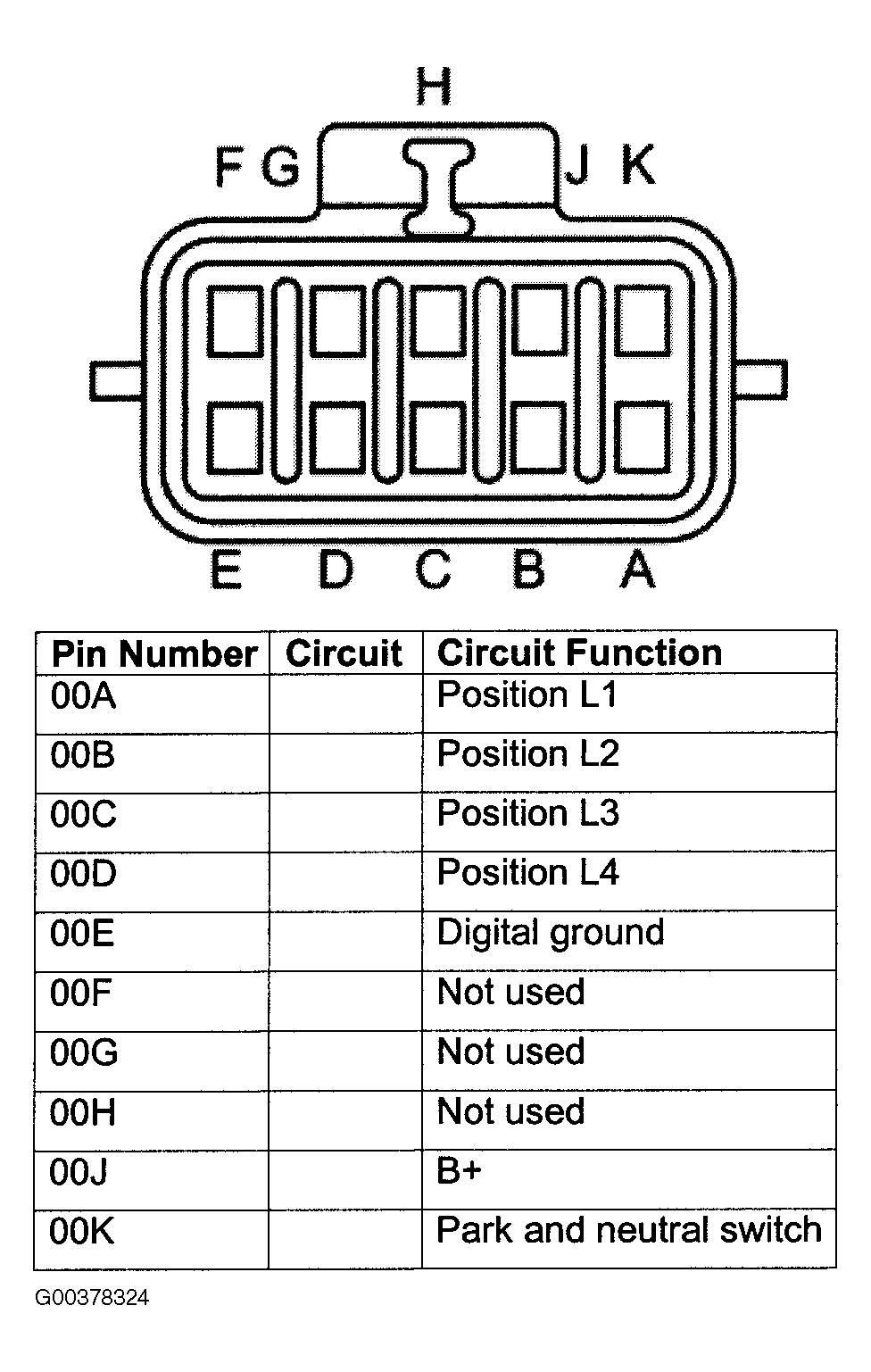

Fig 1: Identifying Transmission Rotary Switch Connector Terminals
G00378324Courtesy of JAGUAR CARS, INC.
