Transmission Support Insulator: Installation

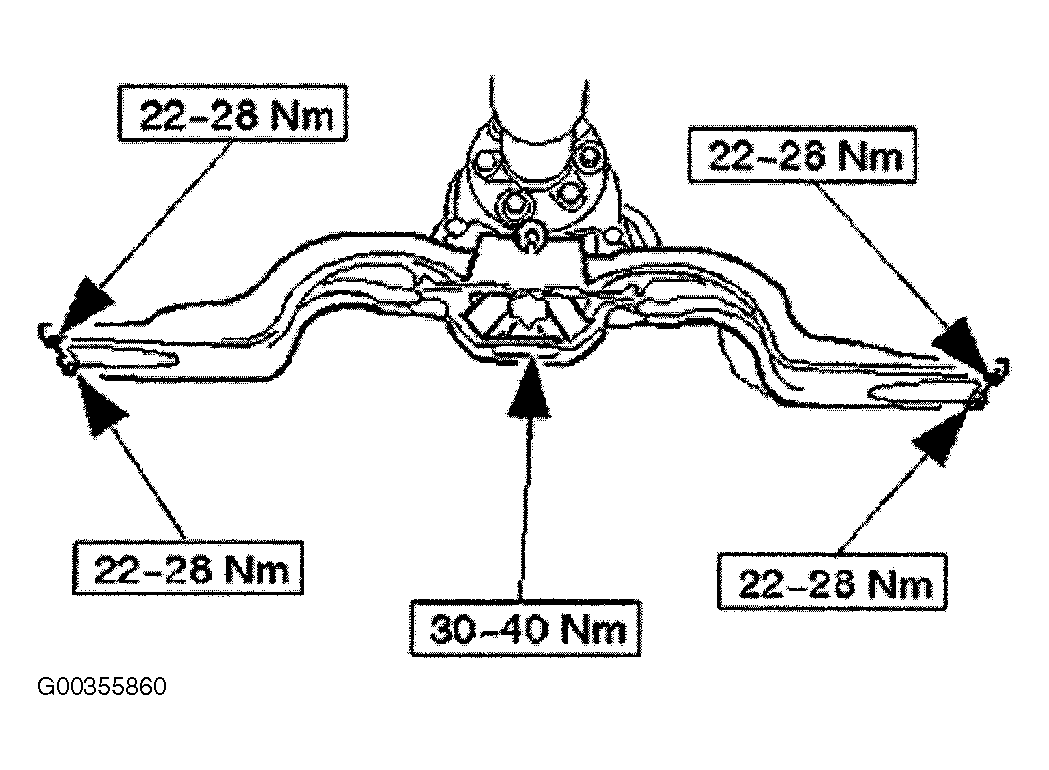

  1. Fit the mounting rubber assembly to position and tighten the center bolt to 30-40 Nm. See Figure.
  2. Tighten the crossmember to body bolts and the mounting rubber to crossmember bolts to 22-28 Nm. See Figure.
