Driver Seat Module (DSM): Removal

Power steering column to fully forward position. (Driver side only)
Power seat to fully forward and upward position.

WARNING: FOLLOWING DISCONNECTION OF THE BATTERY A PERIOD OF AT LEAST ONE MINUTE MUST BE ALLOWED TO ELAPSE BEFORE WORKING ON A FRONT SEAT WITH A SIDE AIRBAG FITTED.

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Slacken and remove seat rear securing bolts.

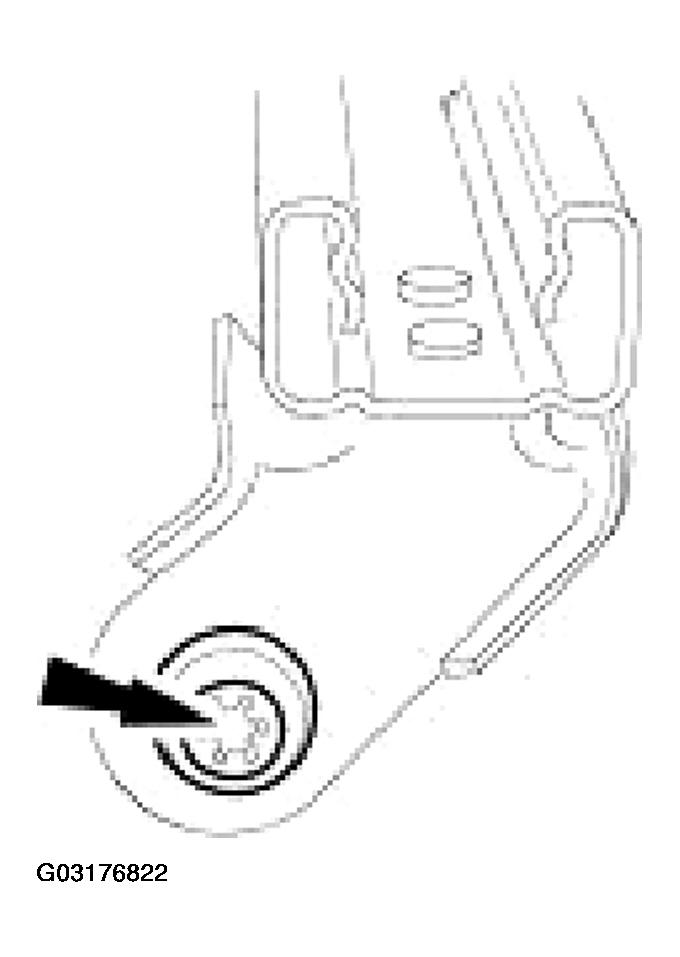

Fig 1: Removing Seat Rear Securing Bolts
Courtesy of JAGUAR CARS, INC.
Slacken and remove seat front securing bolts.

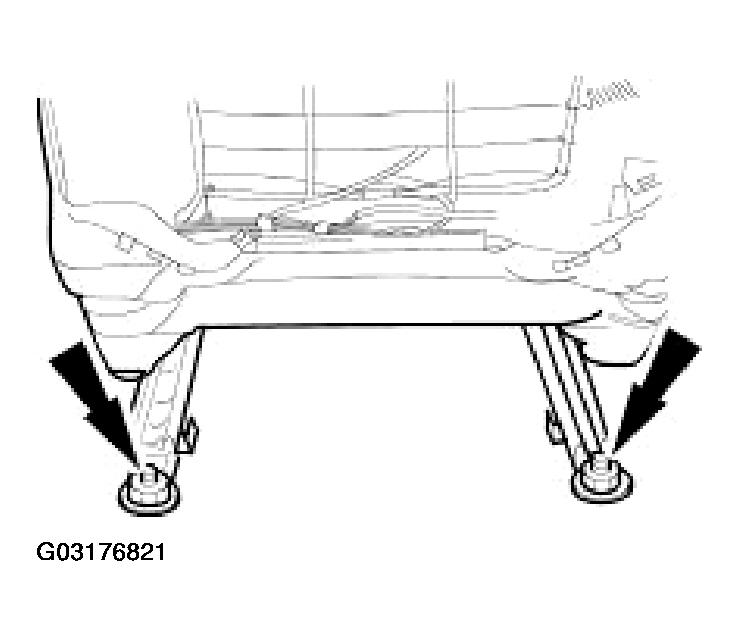

Fig 2: Removing Seat Front Securing Bolts
Courtesy of JAGUAR CARS, INC.
With assistance and exercising care to avoid tensioning harness, tilt seat backwards and support for access.
Slacken and remove module mounting bracket to seat frame securing screw.

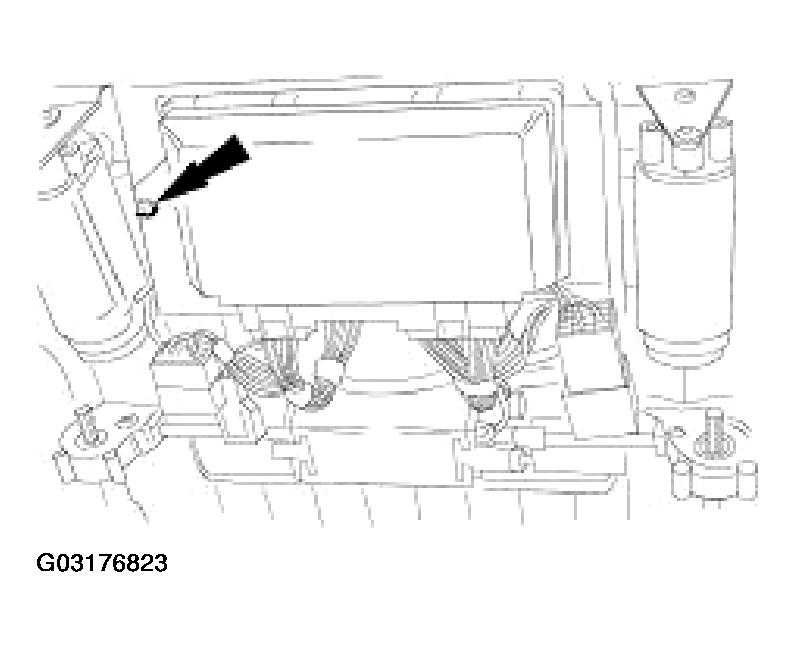

Fig 3: Removing Module Mounting Bracket To Seat Frame Securing Screw
Courtesy of JAGUAR CARS, INC.
Position module/mounting bracket assembly for access and slacken and remove module to bracket securing screws.

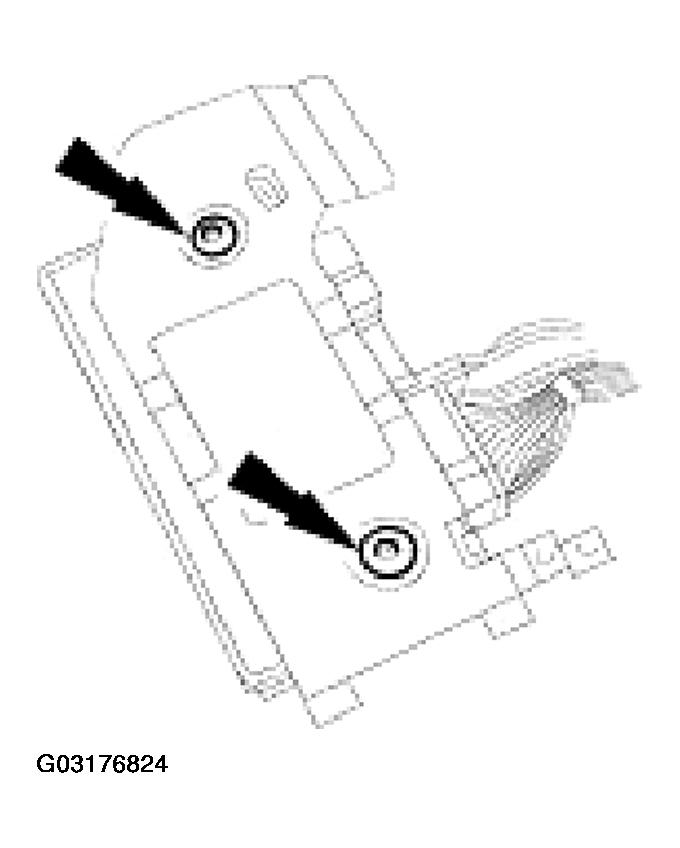

Fig 4: Removing Module To Bracket Securing Screws
Courtesy of JAGUAR CARS, INC.
Remove seat control module.
- Disconnect harness multiplugs from module.
- Withdraw module from seat

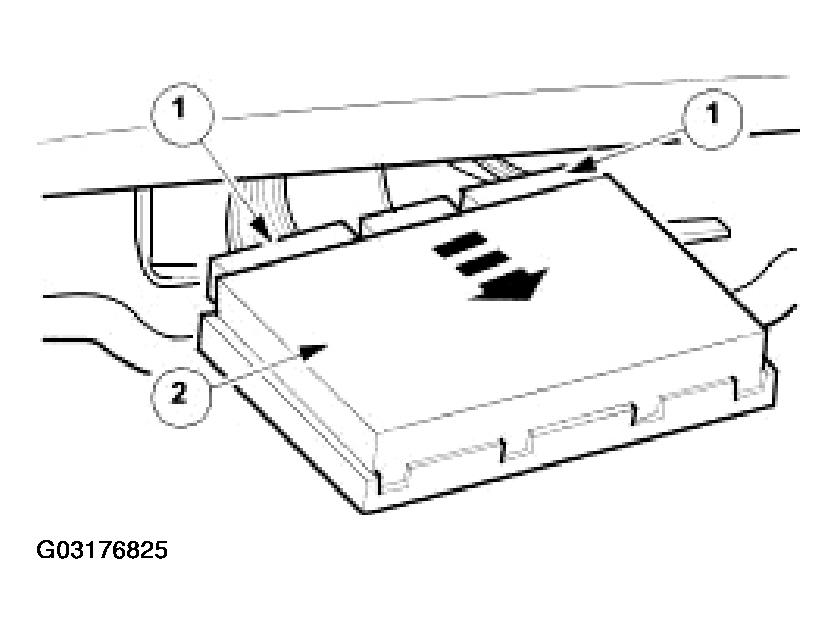

  Fig 5: Removing Seat Control Module
  Courtesy of JAGUAR CARS, INC.
