Anti-Lock Control: Notes

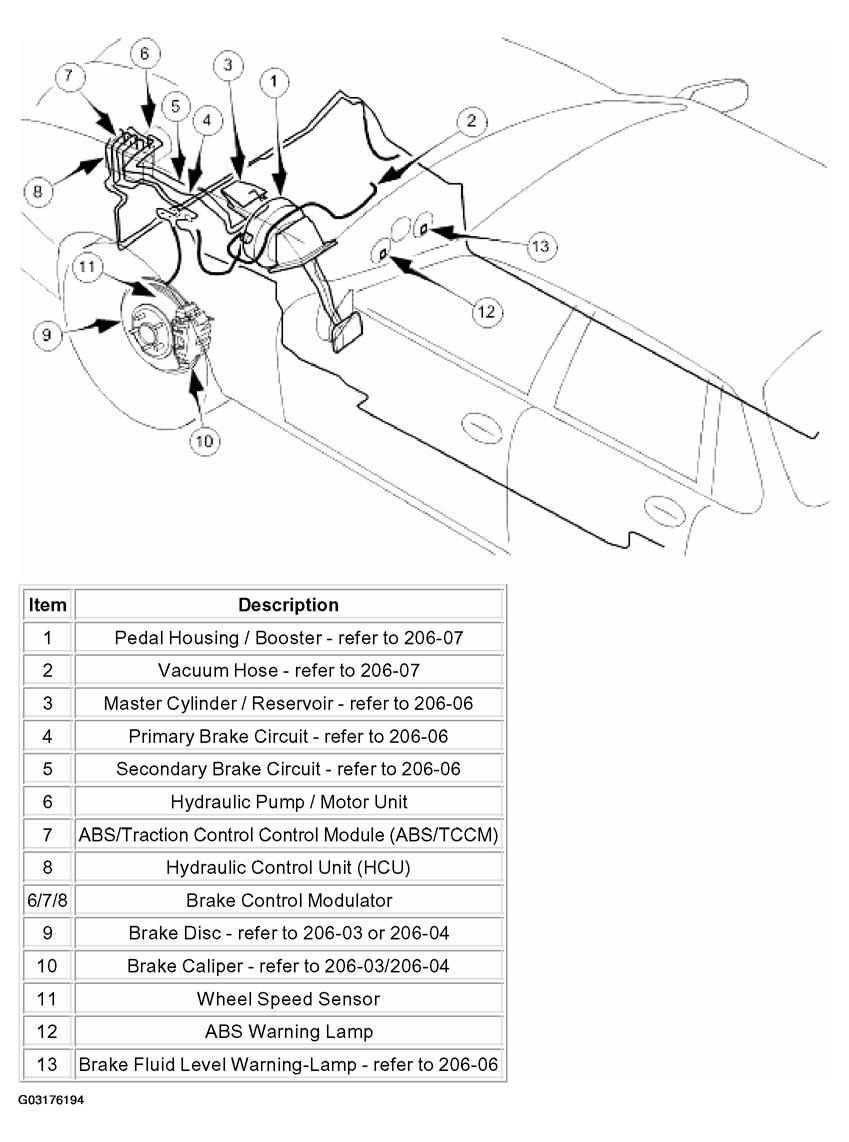

Fig 1: Identifying Anti-Lock Control Components
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
