KICKDOWN Switch: Removal

  1. Disconnect the kickdown switch multiplug
    • Move the carpet for access.

    See Figure .

  2. Remove the kickdown switch
    • Rotate counter-clockwise.

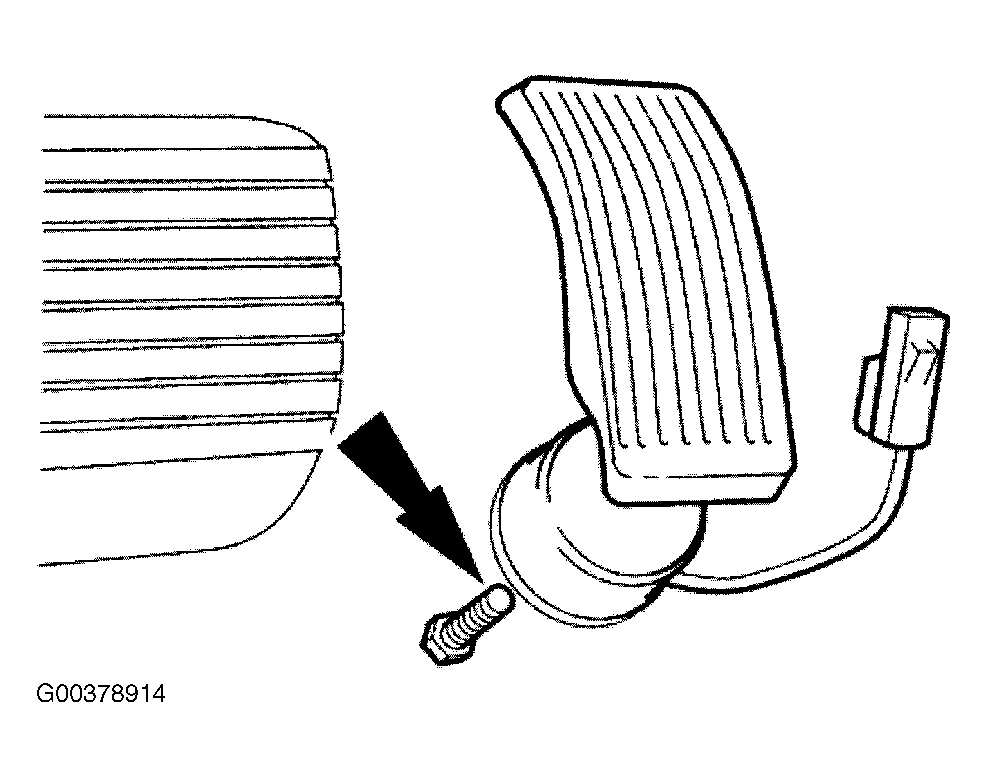

    Fig 1: Removing & Installing Kickdown Switch
    G00378914Courtesy of JAGUAR CARS, INC.
