Speed Sensor/TCM Circuit Diagram

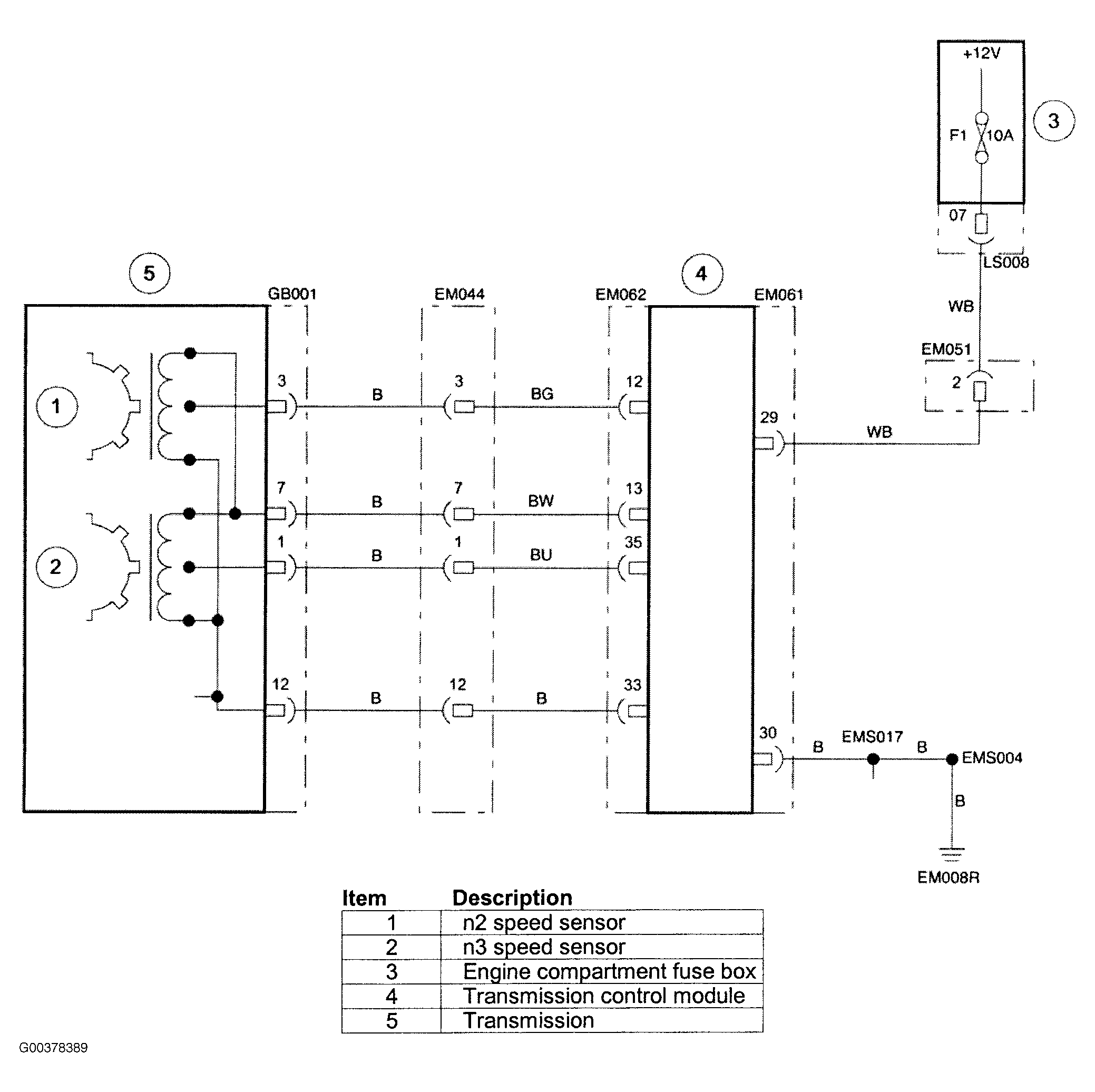

Fig 1: Identifying Speed Sensor/TCM Circuits
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
