General Specifications

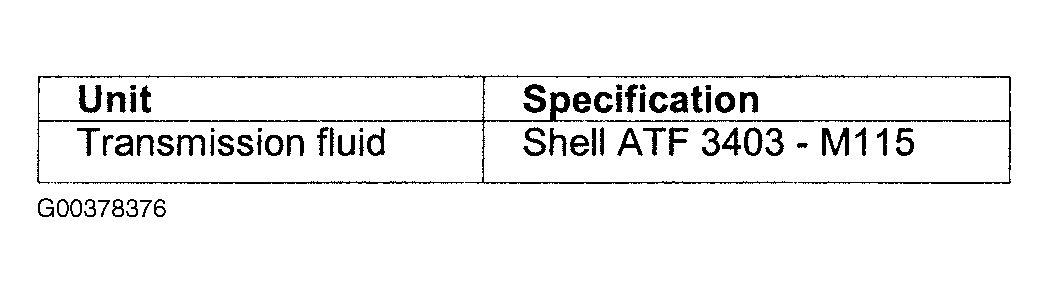

Fig 1: Fluid Specification Table

G00378376

Courtesy of JAGUAR CARS, INC.

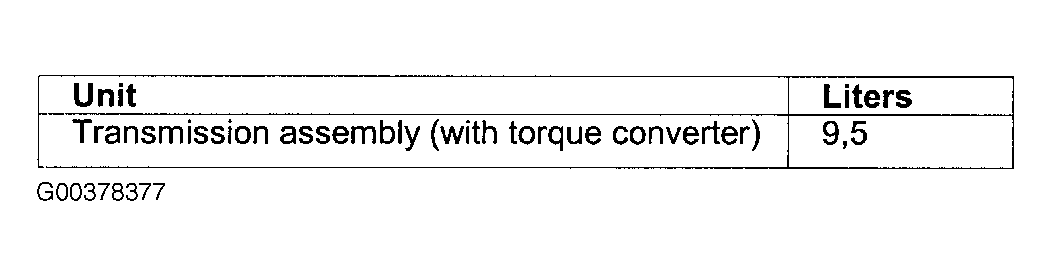

Fig 2: Fluid Capacity Specification Table

G00378377

Courtesy of JAGUAR CARS, INC.

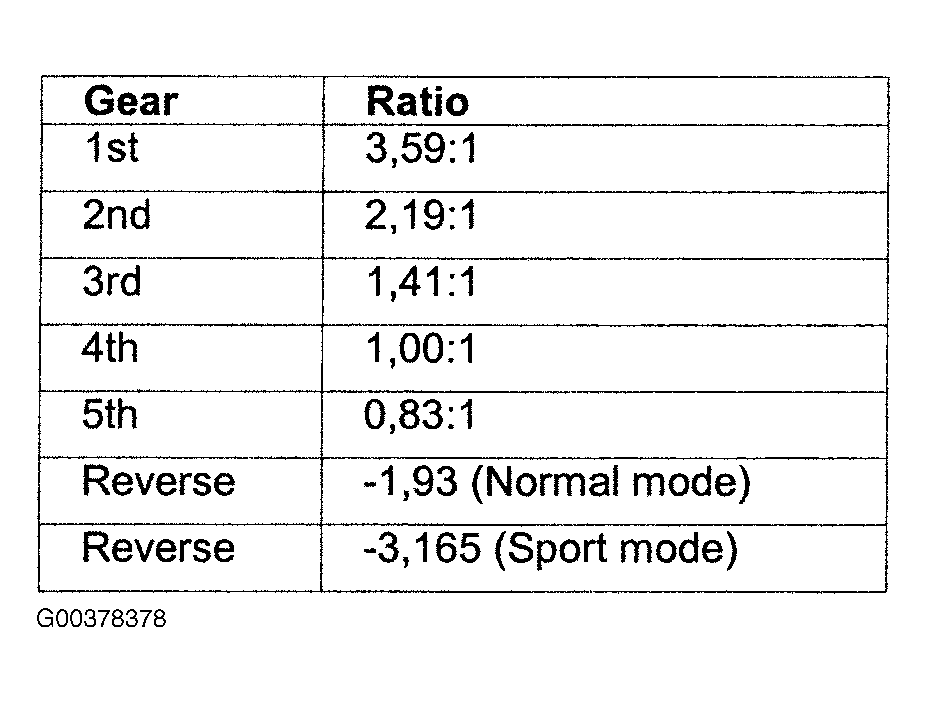

Fig 3: Internal Gear Ratio Table

G00378378

Courtesy of JAGUAR CARS, INC.
