Sunload Sensor - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR CARS, INC.

CAUTION: Protect the surrounding trim from damage when changing the component.

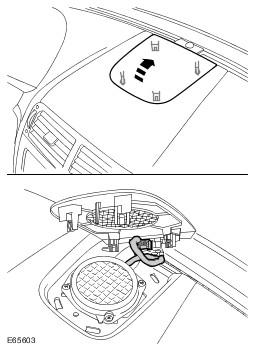

Remove the center speaker grille.
- Carefully release the 4 clips.
- Disconnect the electrical connector.
Courtesy of JAGUAR CARS, INC.
Remove the sunload sensor.
- Remove the 2 screws.
