Transmission Selector Lever: Removal

Remove the INSTRUMENT PANEL CONSOLE .
Remove the ash tray retaining screws.

Fig 1: Removing & Installing Ash Tray Retaining Screws
Courtesy of JAGUAR CARS, INC.
Detach the ash tray.

Fig 2: Removing & Installing Ash Tray
Courtesy of JAGUAR CARS, INC.
Place the transmission selector lever to the "R" position.

NOTE: Shown with the electric parking brake switch removed for clarity.

Fig 3: Disconnecting & Connecting Electrical Connector

Courtesy of JAGUAR CARS, INC.

Disconnect the electrical connector.
Detach the wiring harness bracket.
1. Reposition the wiring harness.
2. Detach the wiring harness bracket.

  Fig 4: Removing Wiring Harness Bracket
  Courtesy of JAGUAR CARS, INC.
Detach the selector lever cable. See Figure.
Detach the transmission selector lever.
- Remove the retaining bolts.

  Fig 5: Removing & Installing Selector Lever Retaining Bolts
  Courtesy of JAGUAR CARS, INC.
Disconnect the ignition switch interlock cable.
1. Detach the ignition switch interlock cable.
2. Disconnect the ignition switch interlock cable.

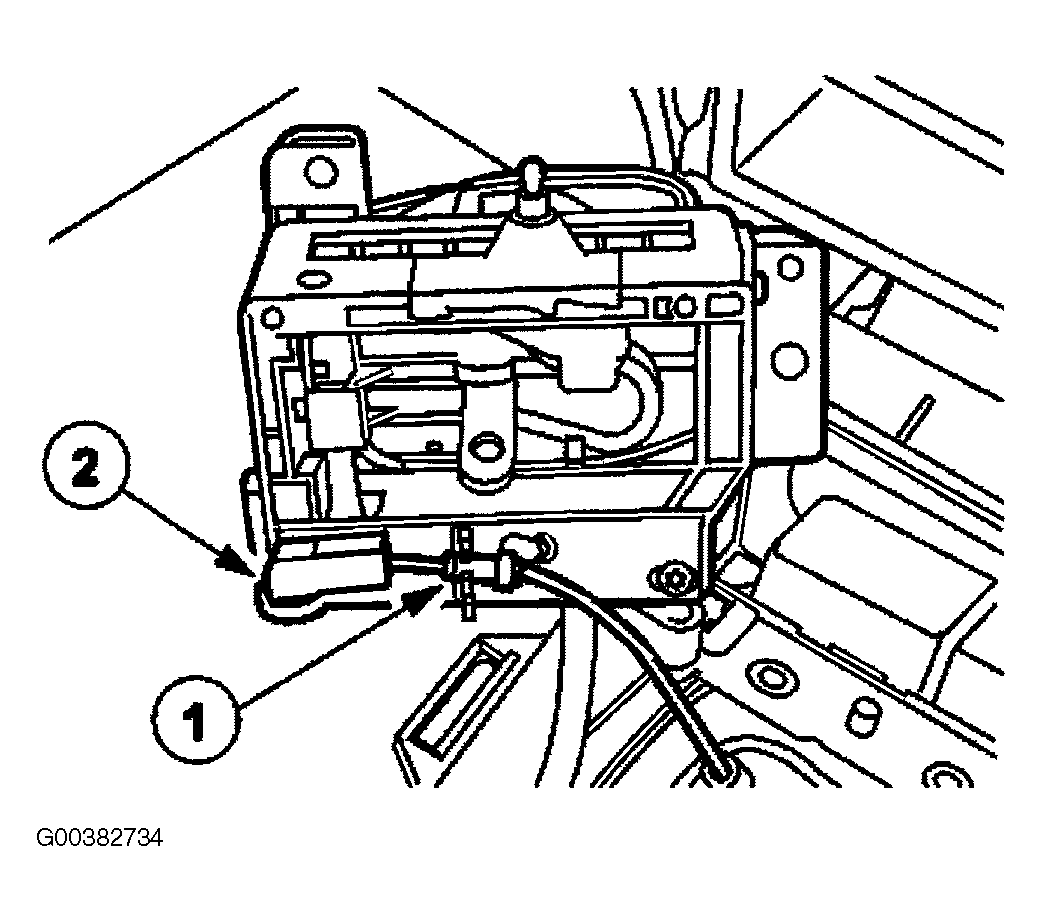

  Fig 6: Removing Ignition Switch Interlock Cable
  Courtesy of JAGUAR CARS, INC.
