Ambient Air Temperature Sensor - Removal and Installation: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle.
- Remove the radiator splash shield. Refer to Radiator Splash Shield
article.

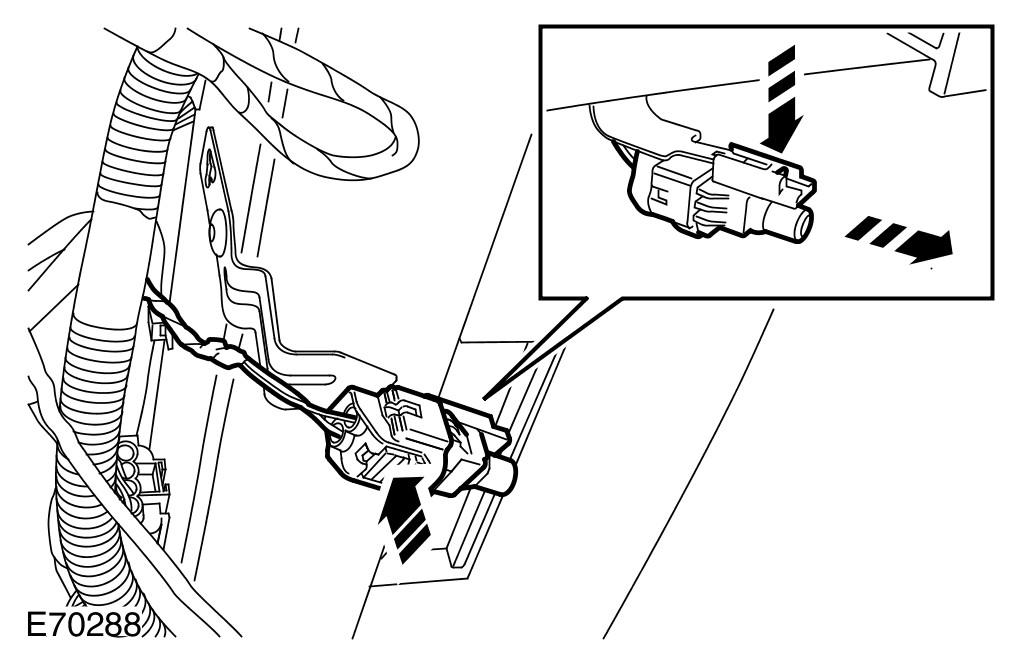

- Remove the ambient air temperature sensor.
- Disconnect the electrical connector.
- Carefully release the clip.
WARNING:
Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
