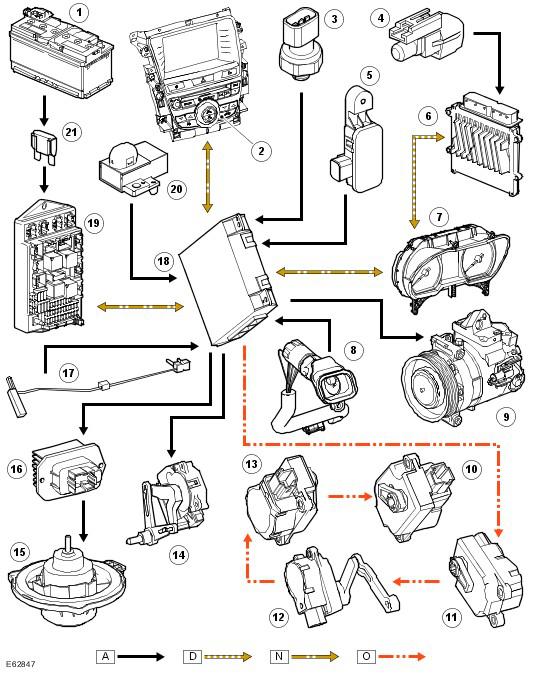

Control Diagram
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Battery |
| 2 | Control switches |
| 3 | Refrigerant pressure sensor |
| 4 | Ambient air temperature sensor |
| 5 | Pollution sensor |
| 6 | Engine Control Module (ECM) |
| 7 | Instrument cluster |
| 8 | Cabin humidity and temperature sensor |
| 9 | A/C compressor solenoid |
| 10 | RH temperature blend stepper motor |
| 11 | Windshield distribution (defrost) stepper motor |
| 12 | Face/feet distribution stepper motor |
| 13 | LH temperature blend stepper motor |
| 14 | Air intake servo motor |
| 15 | Blower motor |
| 16 | Blower motor control module |
| 17 | Evaporator temperature sensor |
| 18 | ATC module |
| 19 | CJB |
| 20 | Sunload/Light sensor |
| 21 | Mega fuse (175A) |
NOTE:
A
= Hardwired; D
= High speed controller area network (CAN) bus; N
= Medium speed controller area network (CAN) bus; O
= local interconnect network (LIN) bus
