Camshaft Position (CMP) Sensor RH - Removal and Installation: Removal

Vehicles without supercharger

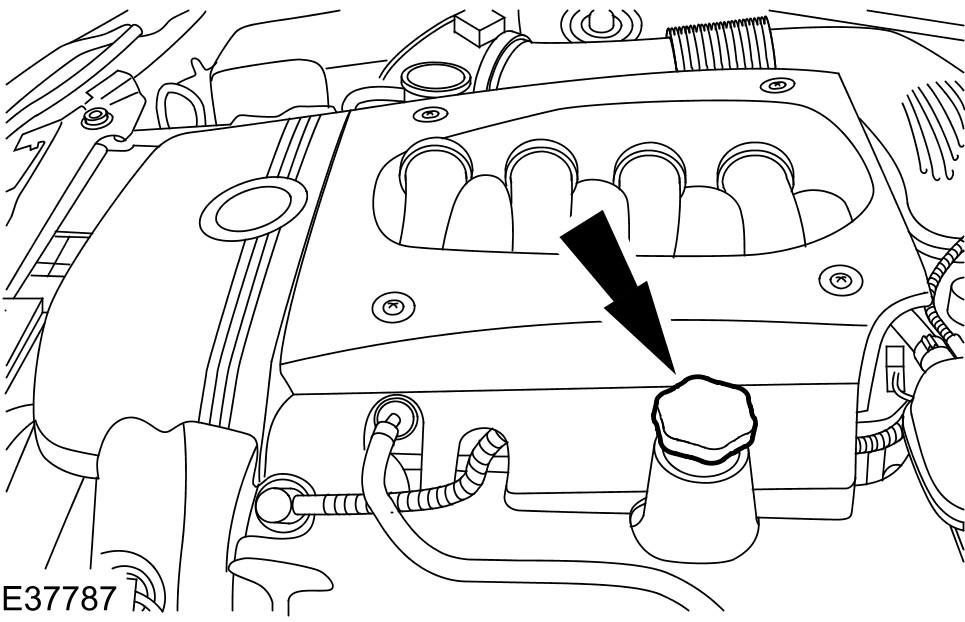

1. Remove the oil filler cap.

   Courtesy of JAGUAR CARS, INC.

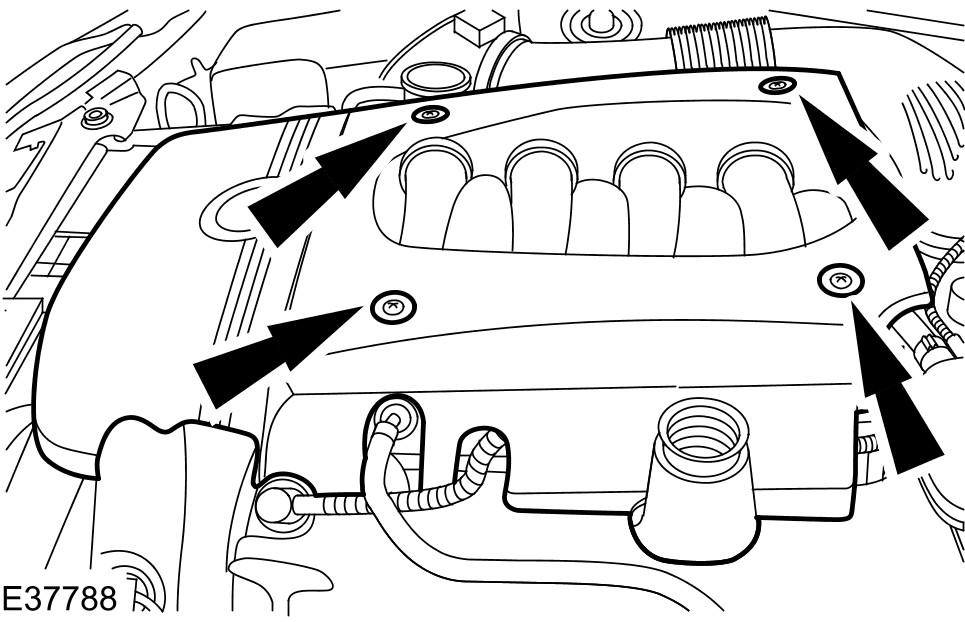

2. Remove the engine cover.

   Courtesy of JAGUAR CARS, INC.

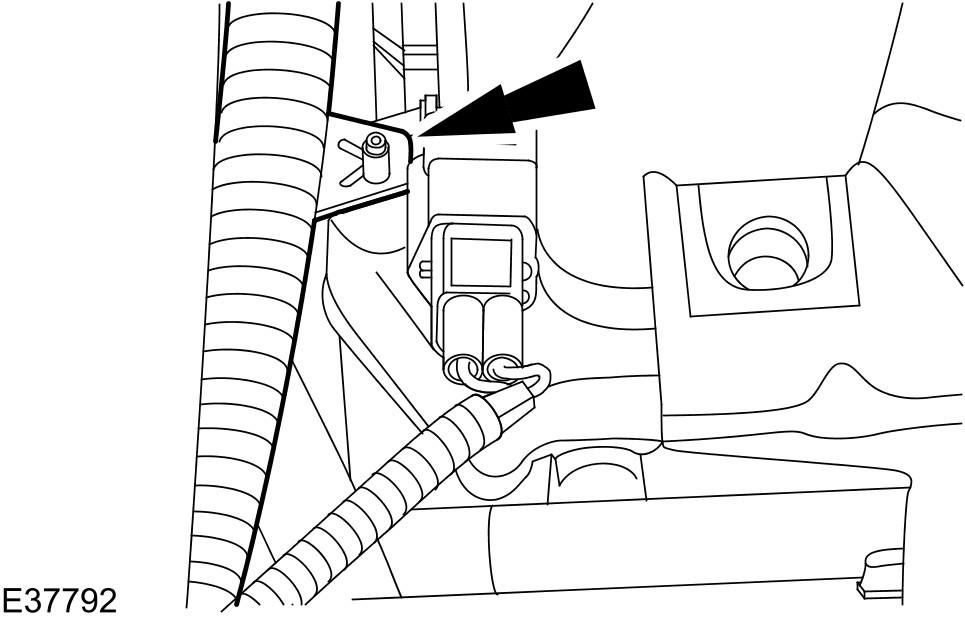

3. Detach the engine wiring harness.

   Courtesy of JAGUAR CARS, INC.

All vehicles

NOTE: Vehicles without supercharger shown, vehicles with supercharger similar.

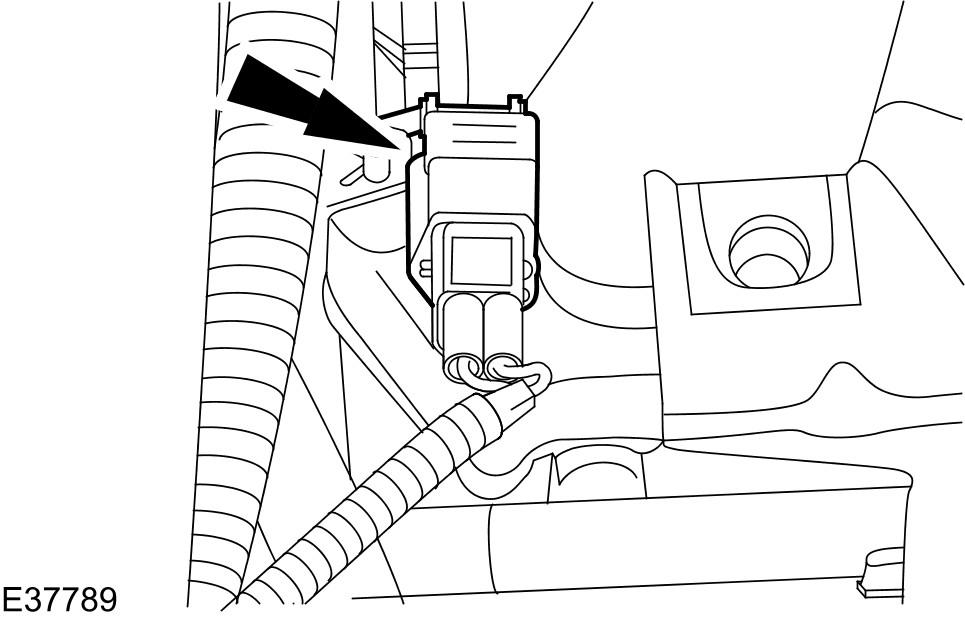

4. Detach the camshaft position (CMP) sensor electrical connector.

   Courtesy of JAGUAR CARS, INC.

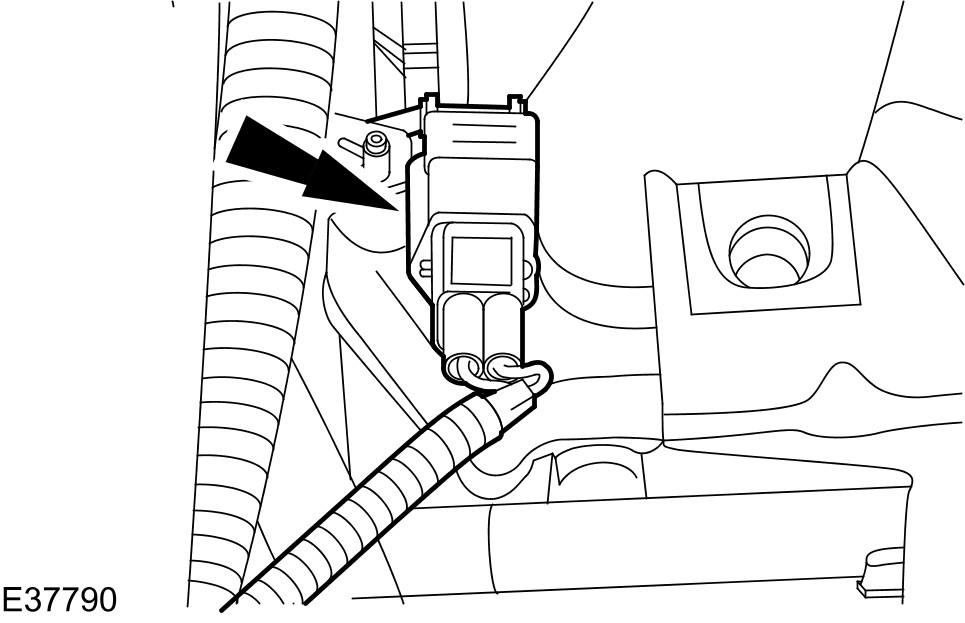

5. Disconnect the CMP sensor electrical connector.

   Courtesy of JAGUAR CARS, INC.

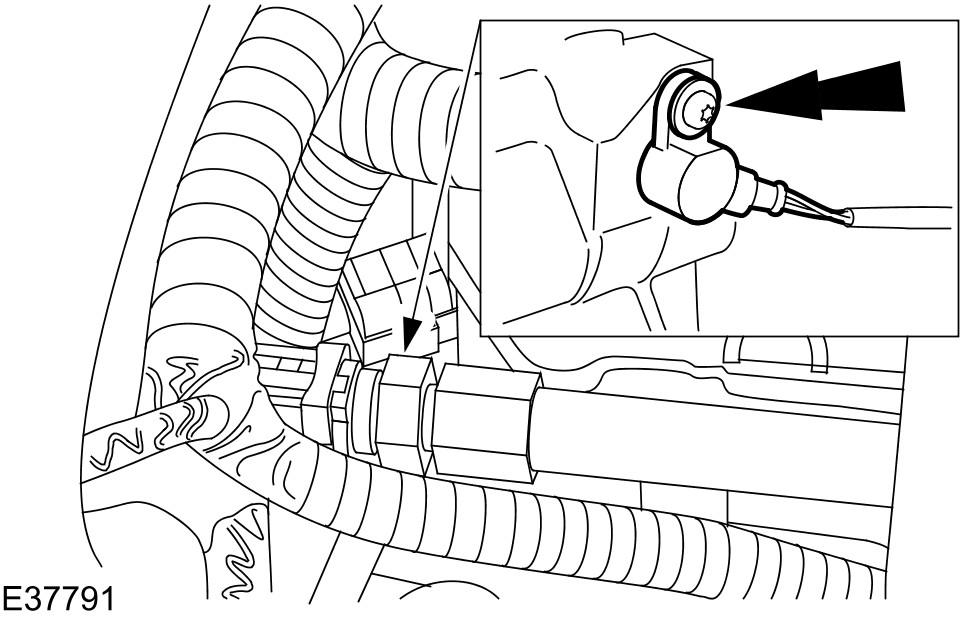

6. Remove the CMP sensor.

   Courtesy of JAGUAR CARS, INC.
