Transmission Control Module (TCM) & Main Control Valve Body: Removal

Remove the fluid pan, gasket and filter. See FLUID PAN, GASKET & FILTER .

CAUTION: Make sure the Transmission Control Module (TCM) and main control valve body are protected against electrostatic discharge. Failure to follow this instruction may result in component damage.

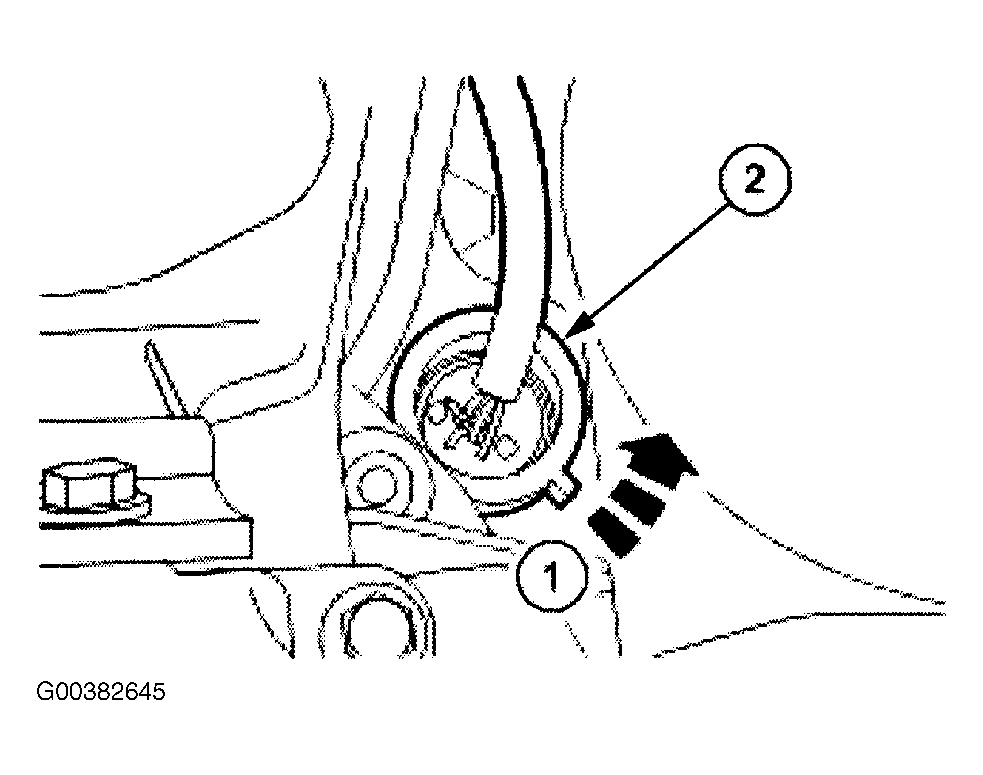

Fig 1: Identifying Locking Device

Courtesy of JAGUAR CARS, INC.

Reposition the locking device.
Disconnect the electrical connector.
- Reposition the electrical connector retaining ring.
- Disconnect the electrical connector.
Fig 2: Disconnecting Electrical Connector
Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure all suitable safety precautions are taken to protect the Transmission Control Module (TCM) and main control valve body electrical connector pins against electrostatic discharge.

Fig 3: Removing & Installing Electrical Connector Sealing Tube

Courtesy of JAGUAR CARS, INC.

Remove the sealing tube.
Remove and discard the seals.

Fig 4: Removing & Installing Electrical Connector Sealing Tube Seals
Courtesy of JAGUAR CARS, INC.
Remove the TCM and main control valve body.
- Remove the retaining bolts.
Fig 5: Removing & Installing TCM & Main Control Valve Body
Courtesy of JAGUAR CARS, INC.
Remove the TCM and main control valve body sealing block.

Fig 6: Removing & Installing TCM & Main Control Valve Body Sealing Block
Courtesy of JAGUAR CARS, INC.
Remove and discard the seals.

Fig 7: Removing & Installing Sealing Block Seals
Courtesy of JAGUAR CARS, INC.
Remove and discard the seals.

Fig 8: Removing & Installing Seals
Courtesy of JAGUAR CARS, INC.
