Intake Air Temperature (IAT) Sensor - Removal and Installation: Removal

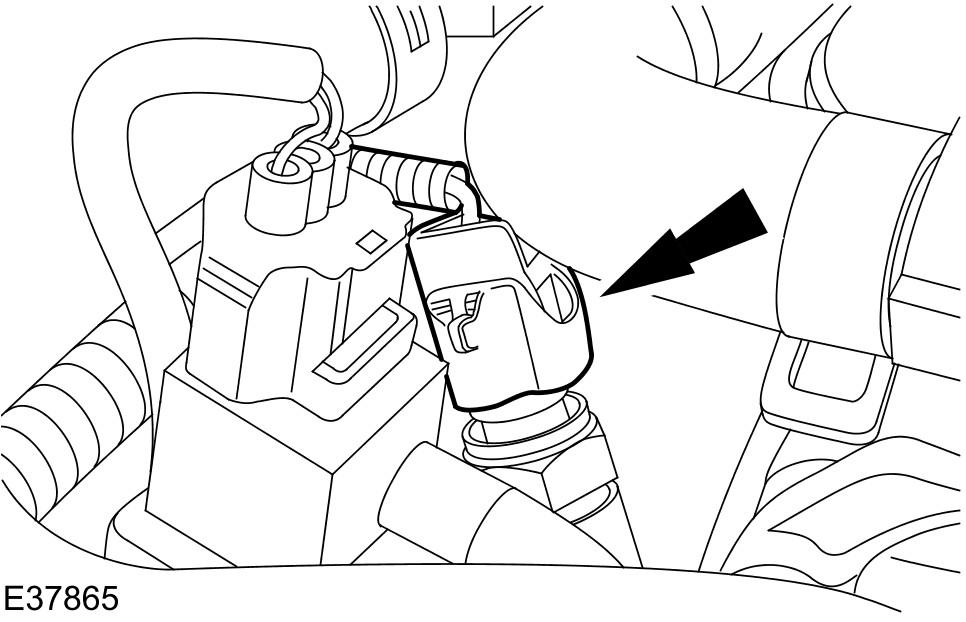

  1. Disconnect the intake air temperature (IAT) sensor electrical connector.
    GJ0002084Courtesy of JAGUAR CARS, INC.

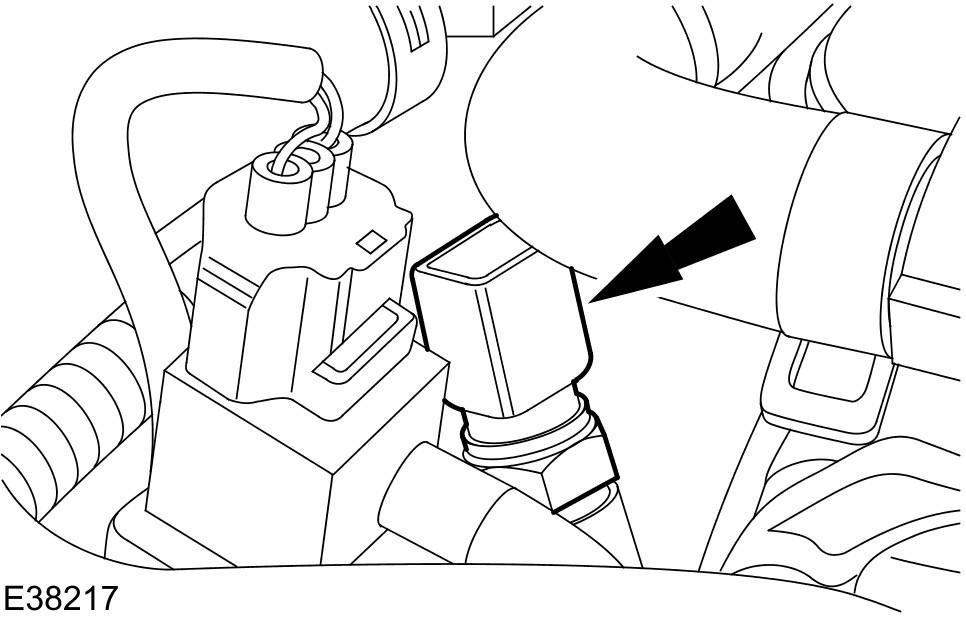

  2. Remove the IAT sensor.
    • Remove and discard the IAT sealing washer.
      GJ0002288Courtesy of JAGUAR CARS, INC.
