Accelerator Cable - Removal and Installation: Installation

Courtesy of JAGUAR CARS, INC.

CAUTION: Do not lubricate the accelerator cable. Failure to follow this instruction may result in incorrect cable adjustment.
NOTE: Install the accelerator cable to the position noted on removal.

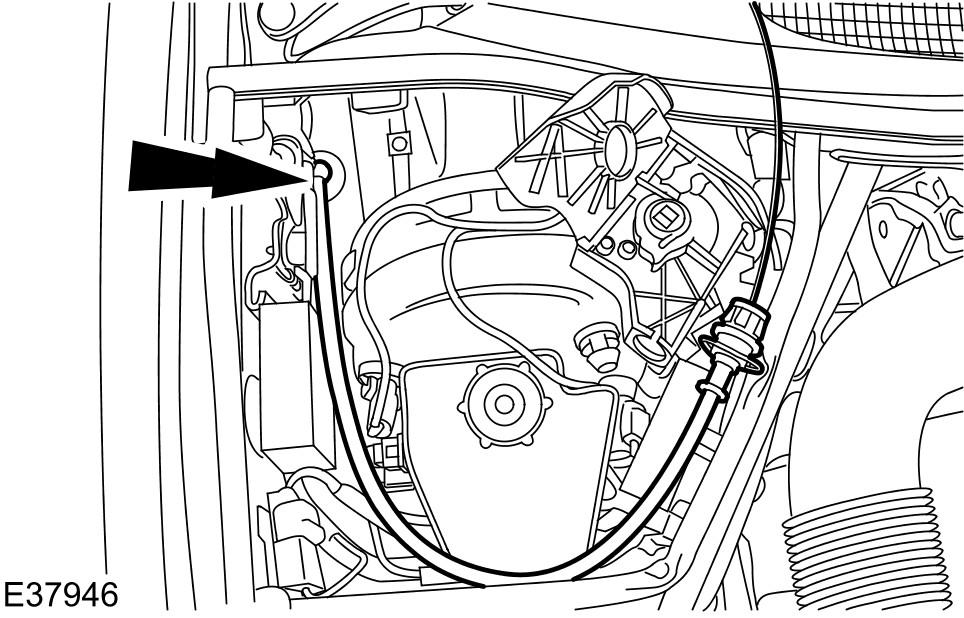

1. Install the accelerator cable.

   Courtesy of JAGUAR CARS, INC.

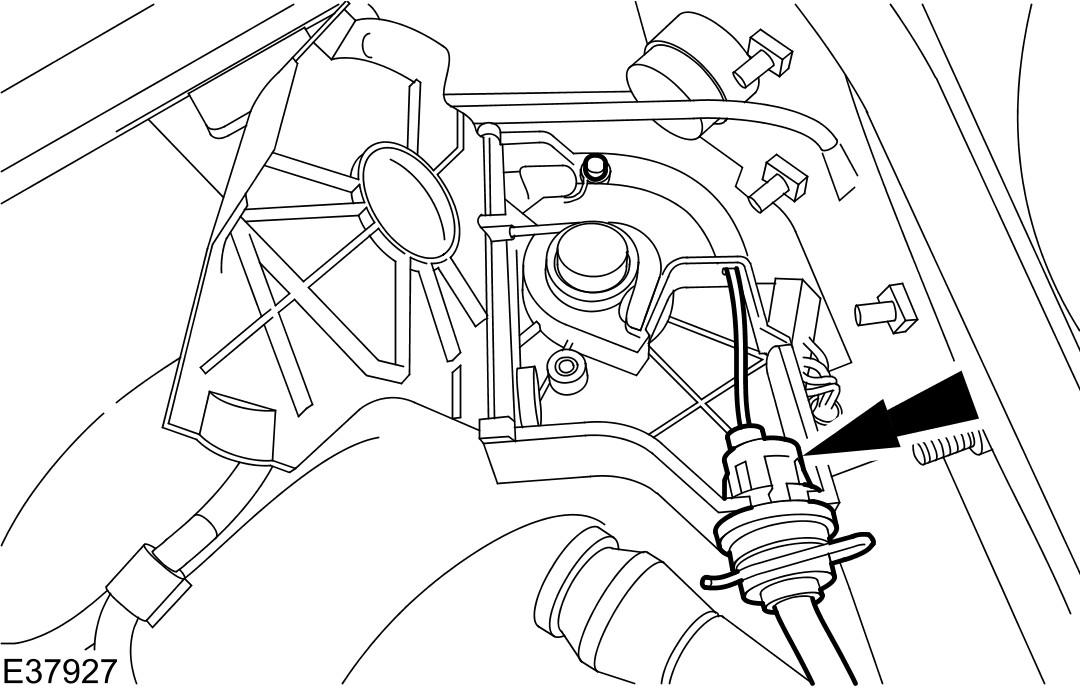

2. Attach the accelerator inner cable.

   Courtesy of JAGUAR CARS, INC.

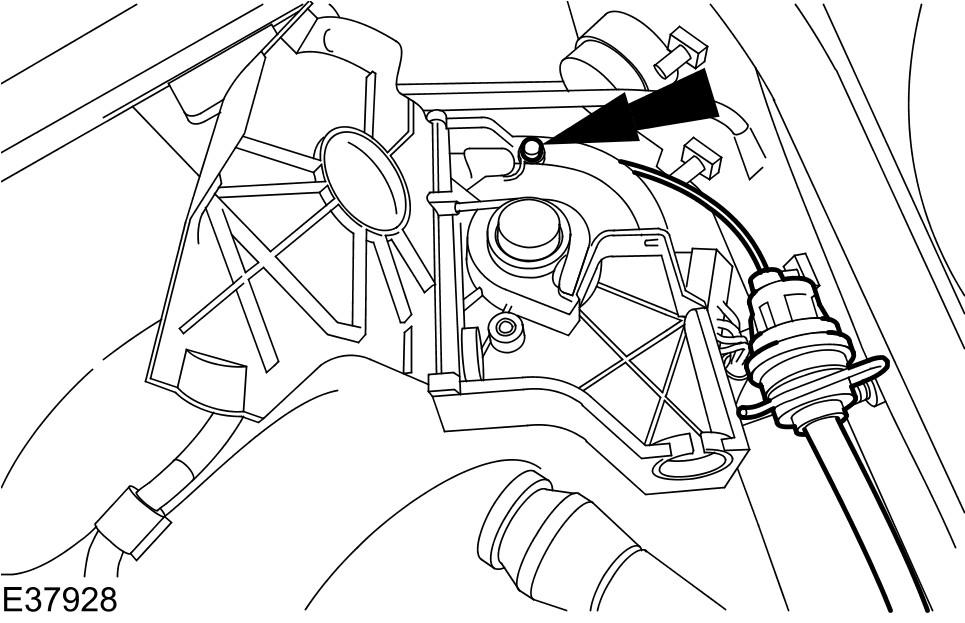

3. Attach the accelerator cable.

   Courtesy of JAGUAR CARS, INC.

4. Attach the accelerator cable retaining sleeve.
   1. Attach the accelerator cable.
   2. Install the accelerator cable retaining sleeve.

   Courtesy of JAGUAR CARS, INC.

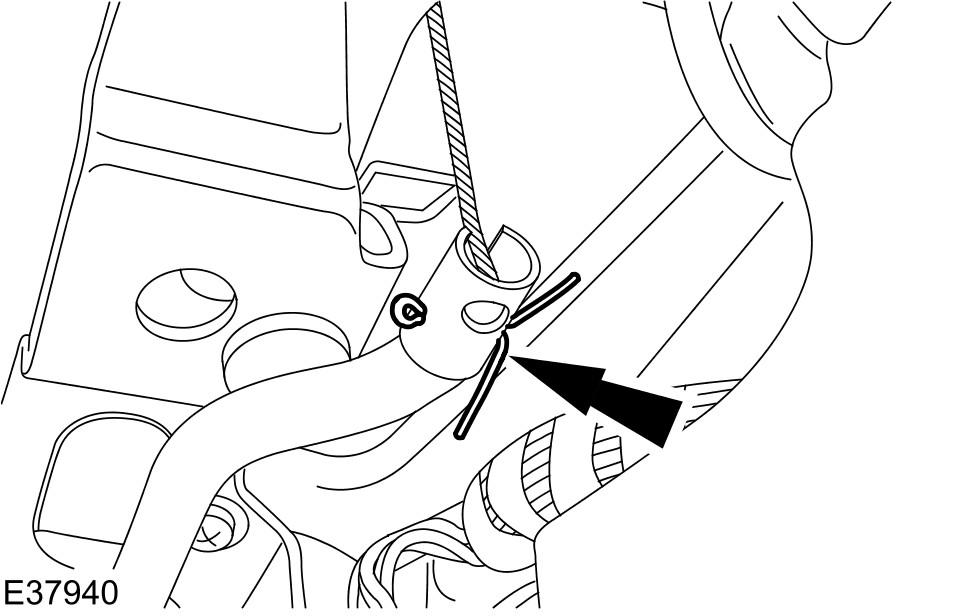

5. Install a new accelerator cable retaining sleeve split pin.
6. Adjust the accelerator cable. Refer to Accelerator Cable Adjustment - General Procedures .
