2.1 Inputs and Outputs

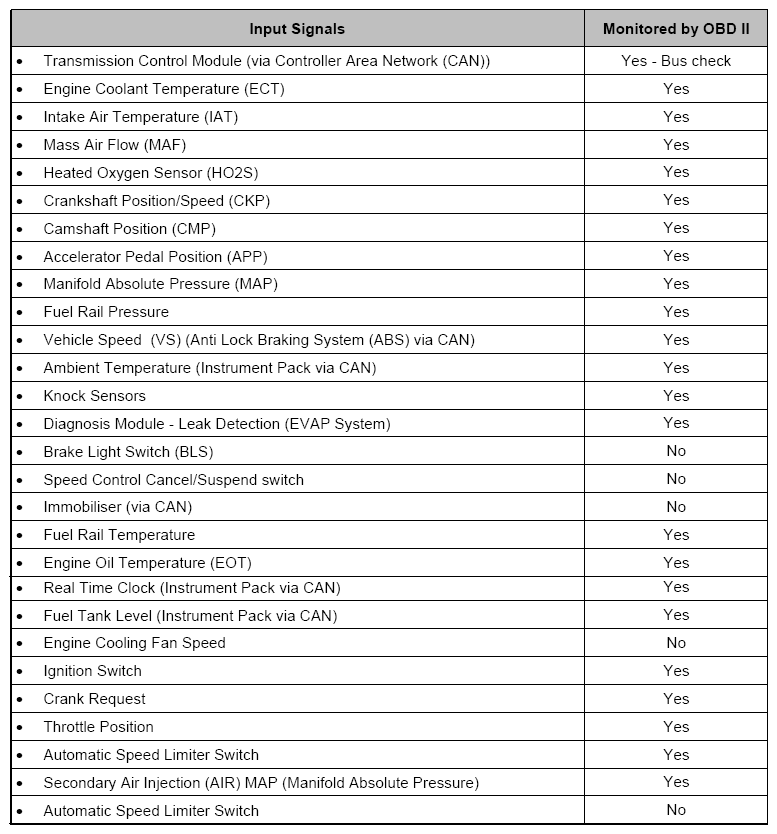

Fig 1: Input Signals Chart
G06421525Courtesy of JAGUAR CARS, INC.

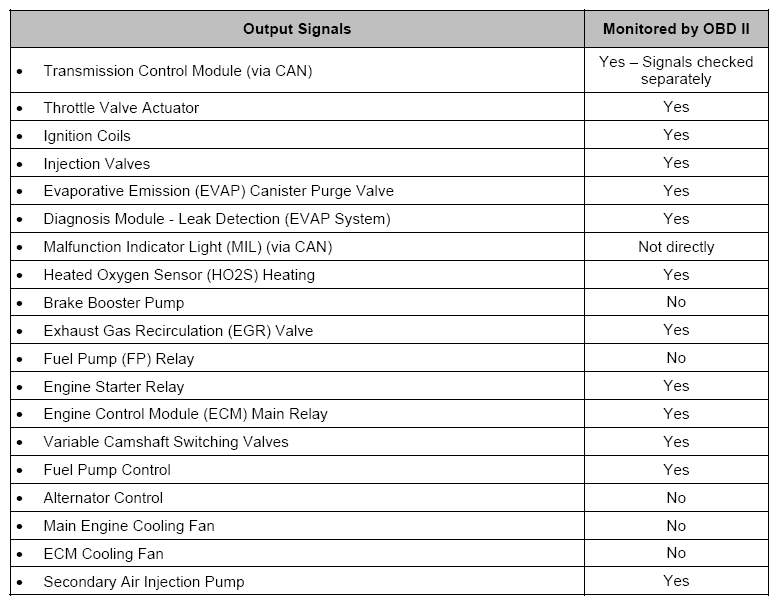

Fig 2: Output Signals Chart
G06421526Courtesy of JAGUAR CARS, INC.
