4.13.3 Monitoring Structure

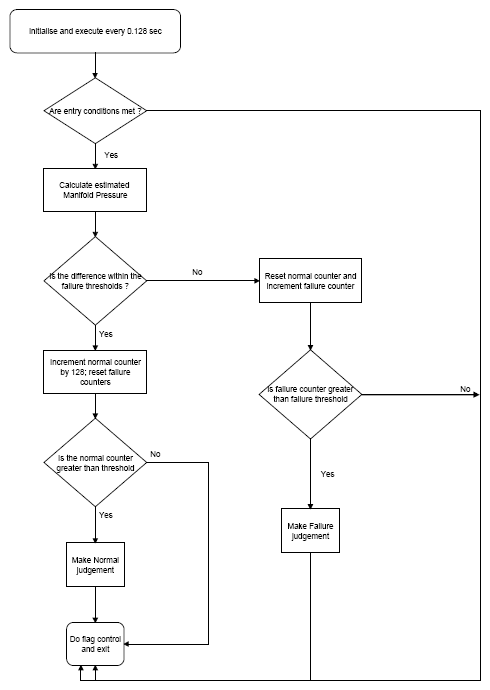

Fig 1: Monitoring Structure
G06421587Courtesy of JAGUAR CARS, INC.

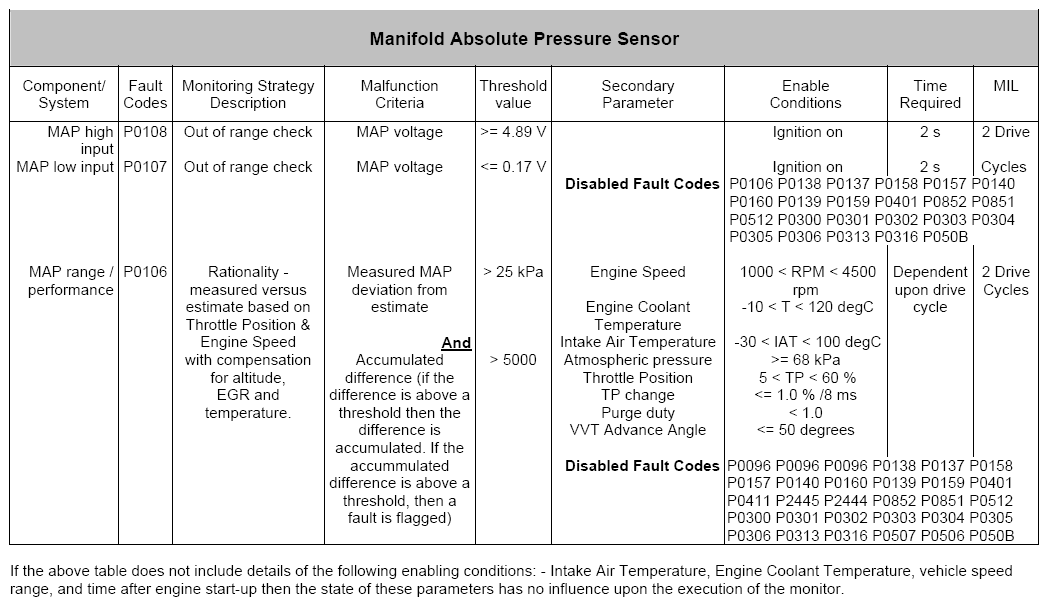

Fig 2: Manifold Absolute Pressure Sensor (P0106, P0107, P0108)
G06421588Courtesy of JAGUAR CARS, INC.
