4.14.3 Monitoring Structure

Fig 1: Monitoring Structure
G06421589Courtesy of JAGUAR CARS, INC.

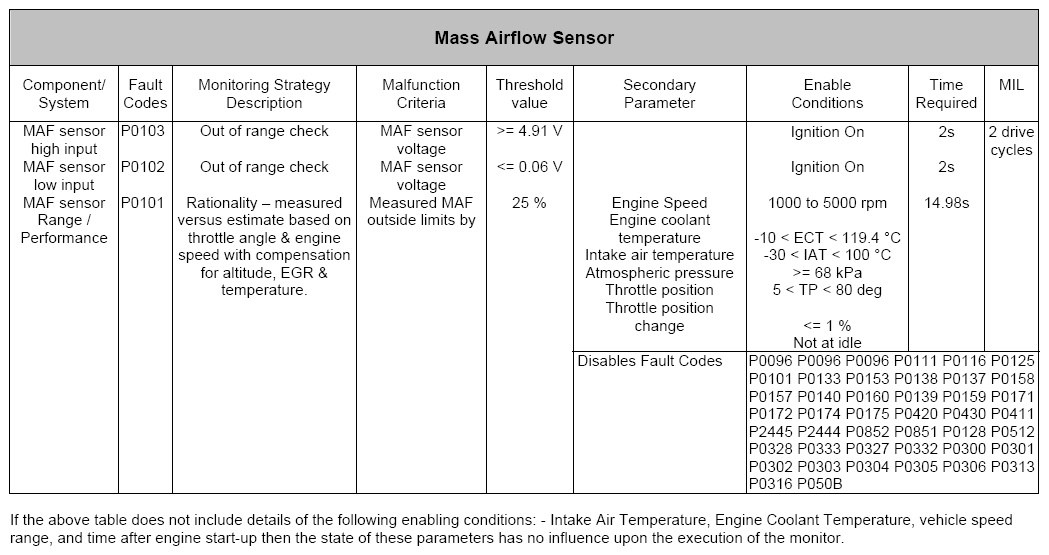

Fig 2: Mass Airflow Sensor (P0101, P0102, P0103)
G06421590Courtesy of JAGUAR CARS, INC.
