4.16.1 Description

This monitor runs continuously. The voltage from the sensor is compared with failure thresholds defined in the software. If the sensor voltage is less than the minimum threshold, a timer will be started. If this timer exceeds a threshold, a failure flag is set and a DTC is stored. If the sensor voltage is greater than the maximum threshold, a timer will be started. If this timer exceeds a threshold, a failure flag is set and a DTC is stored.

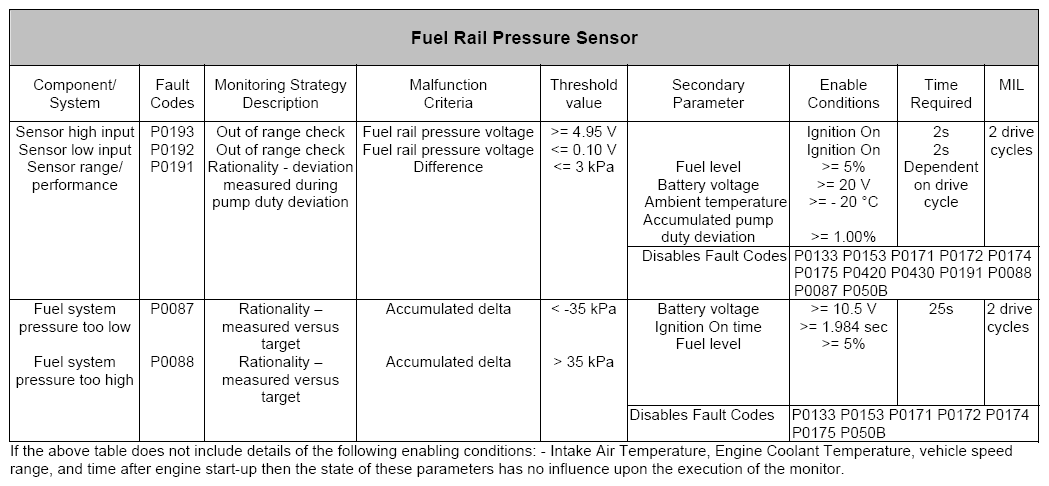

Fig 1: Fuel Rail Pressure Sensor (P0087, P0088, P0191, P0192, P0193)

Courtesy of JAGUAR CARS, INC.
