4.2.2 Misfire Monitor Process Hierarchy

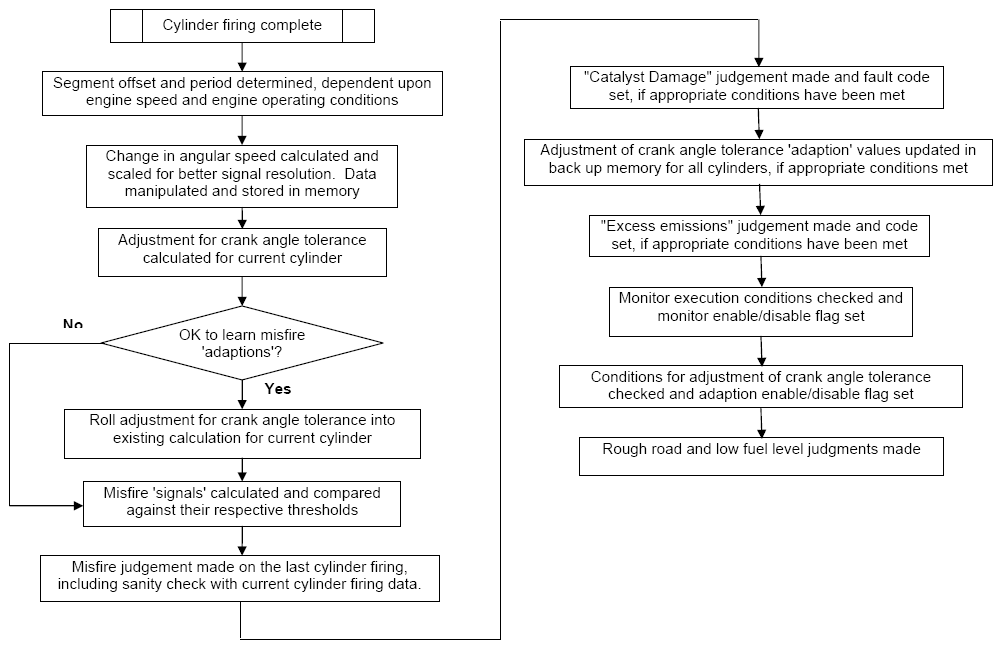

Fig 1: Misfire Monitor Process Hierarchy Flow Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
