4.35.2 Secondary Air Injection System Monitoring Structure

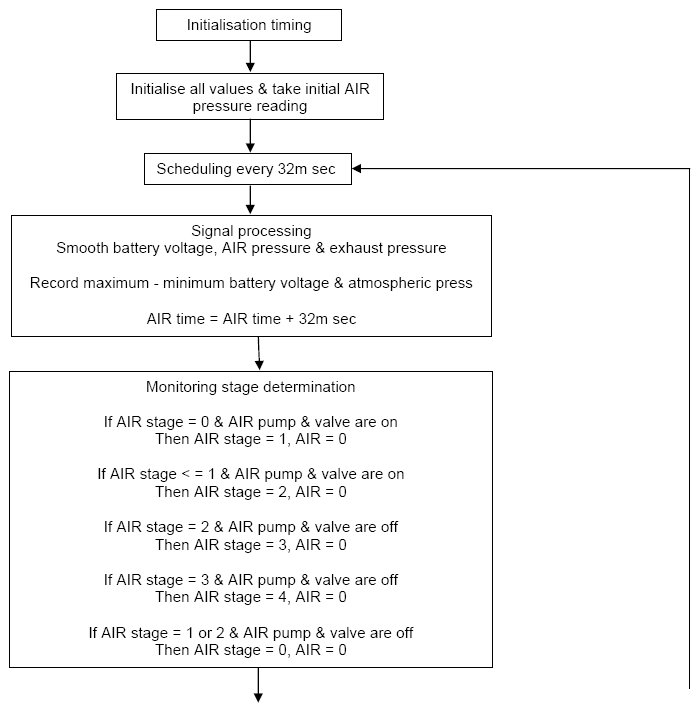

Fig 1: Secondary Air Injection System Monitoring Structure (1 Of 2)

Courtesy of JAGUAR CARS, INC.

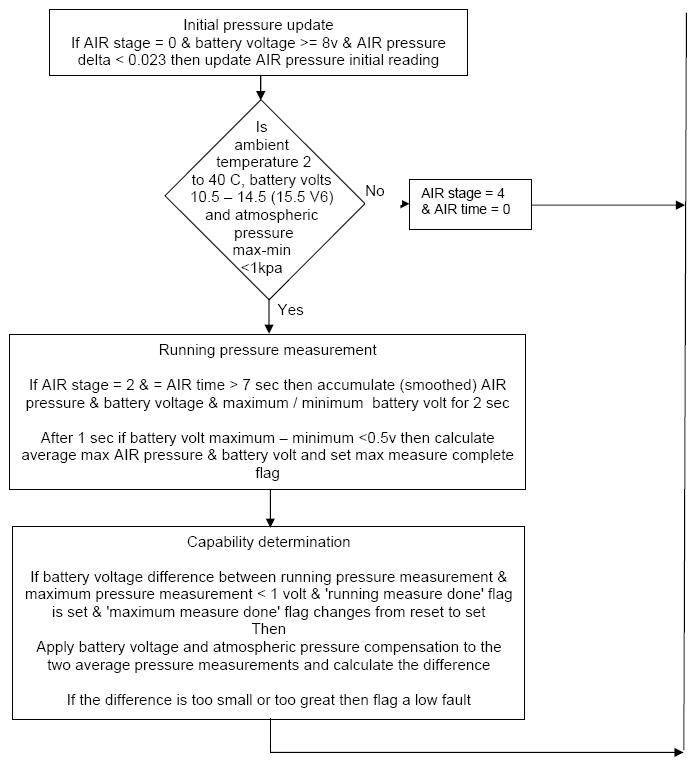

Fig 2: Secondary Air Injection System Monitoring Structure (2 Of 2)

Courtesy of JAGUAR CARS, INC.

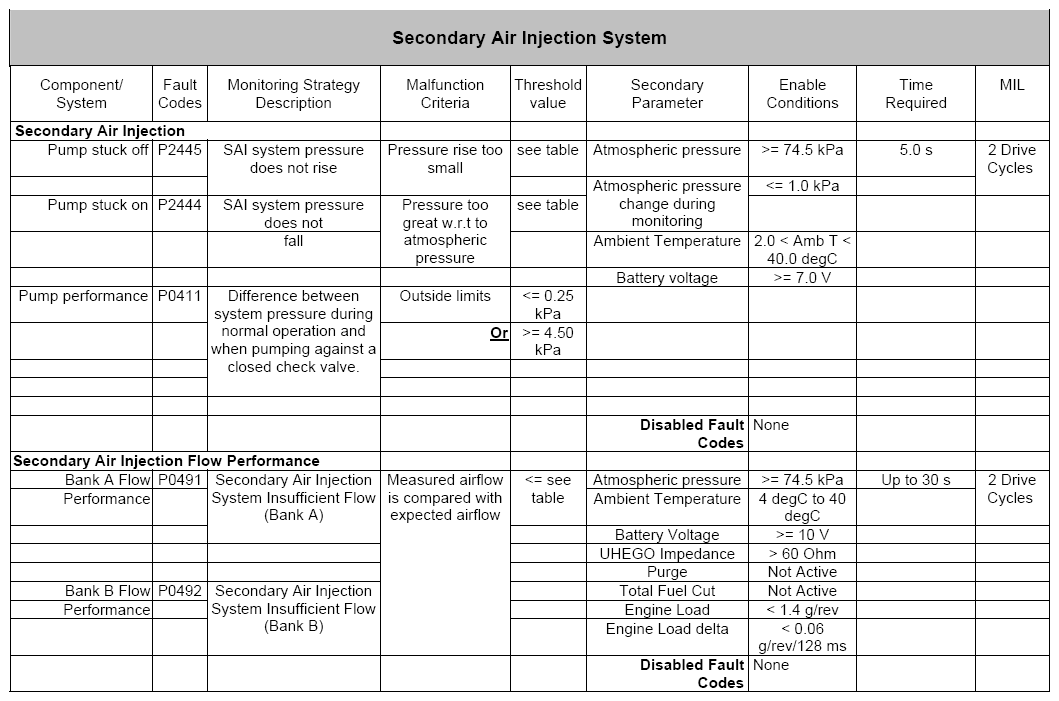

Fig 3: Secondary Air Injection System (1 Of 2) (P0411, P0491, P0492, P2444, P2445)

Courtesy of JAGUAR CARS, INC.

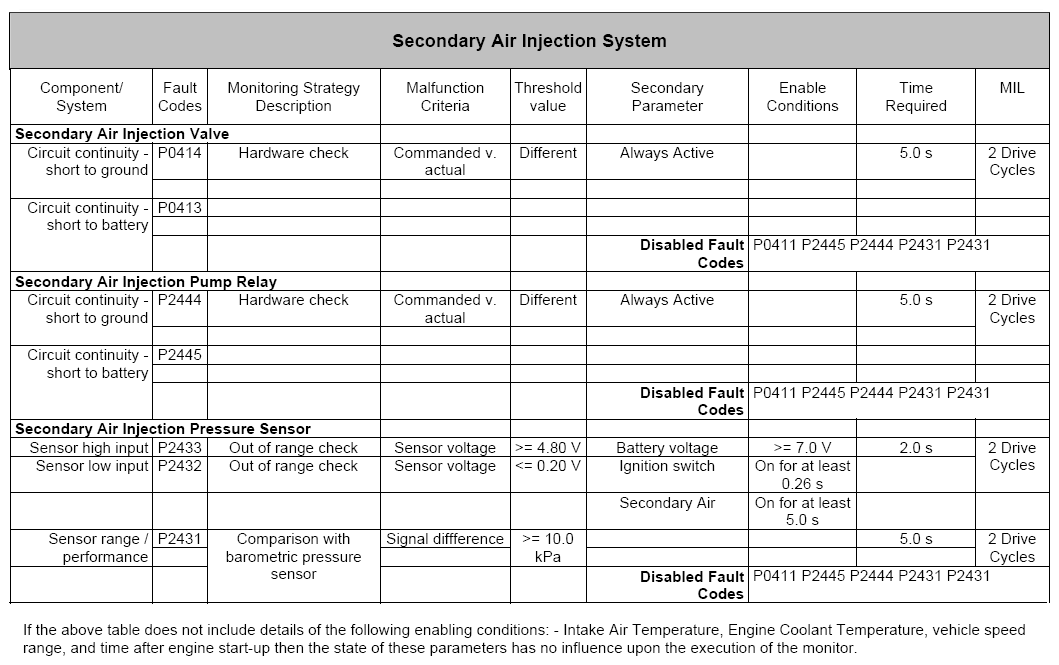

Fig 4: Secondary Air Injection System (2 Of 2) (P0413, P0414, P2431, P2432, P2433, P2444, P2445)

Courtesy of JAGUAR CARS, INC.
