4.4.2 Monitoring Structure

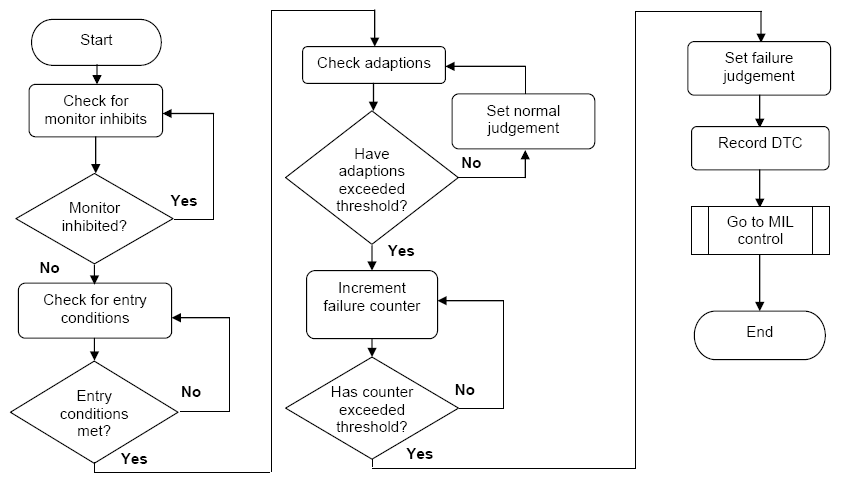

Fig 1: Fuel System Monitoring Structure
G06421561Courtesy of JAGUAR CARS, INC.

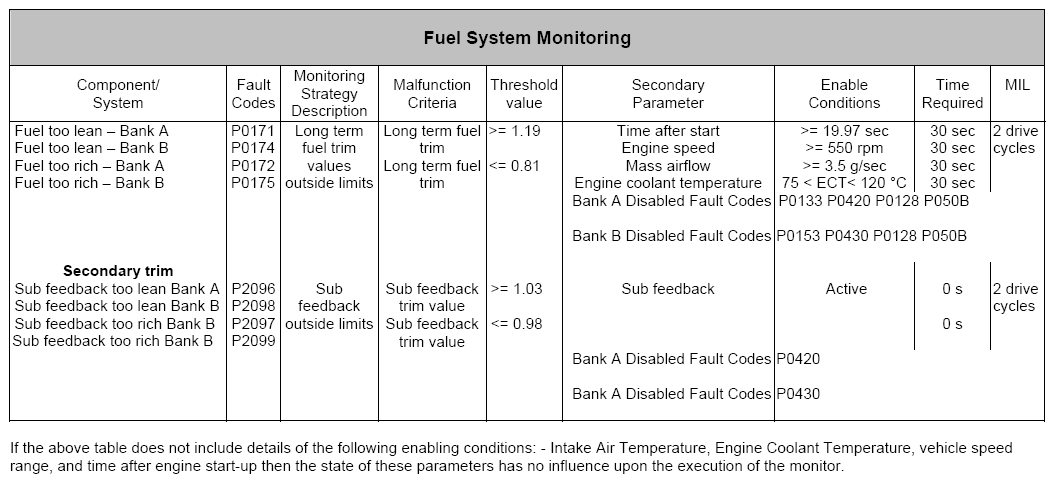

Fig 2: Fuel System Monitoring (P0171, P0172, P0174, P0175, P2096, P2097, P2098, P2099)
G06421562Courtesy of JAGUAR CARS, INC.
