Driver Air Bag Module: Removal

  1. Remove the cover and disconnect the battery ground cable. Refer to Specifications information.
  2. Make the SRS system safe. Refer to Supplemental Restraint System (SRS) Health and Safety Precautions .

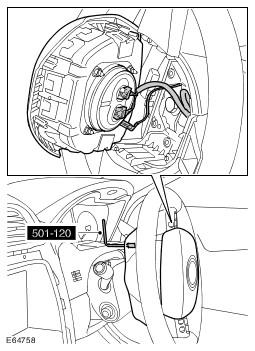

  3. Using the special tool remove the driver air bag module.
    • Rotate the steering wheel for access to slots.
    • Carefully release the 2 clips.
    • Disconnect the 3 electrical connectors.
      GJ0009492
