Test No. 5 - O2 Sensor Closed Loop Test

NOTE: For additional oxygen sensor information, see TITANIA OXYGEN SENSOR TESTING article.

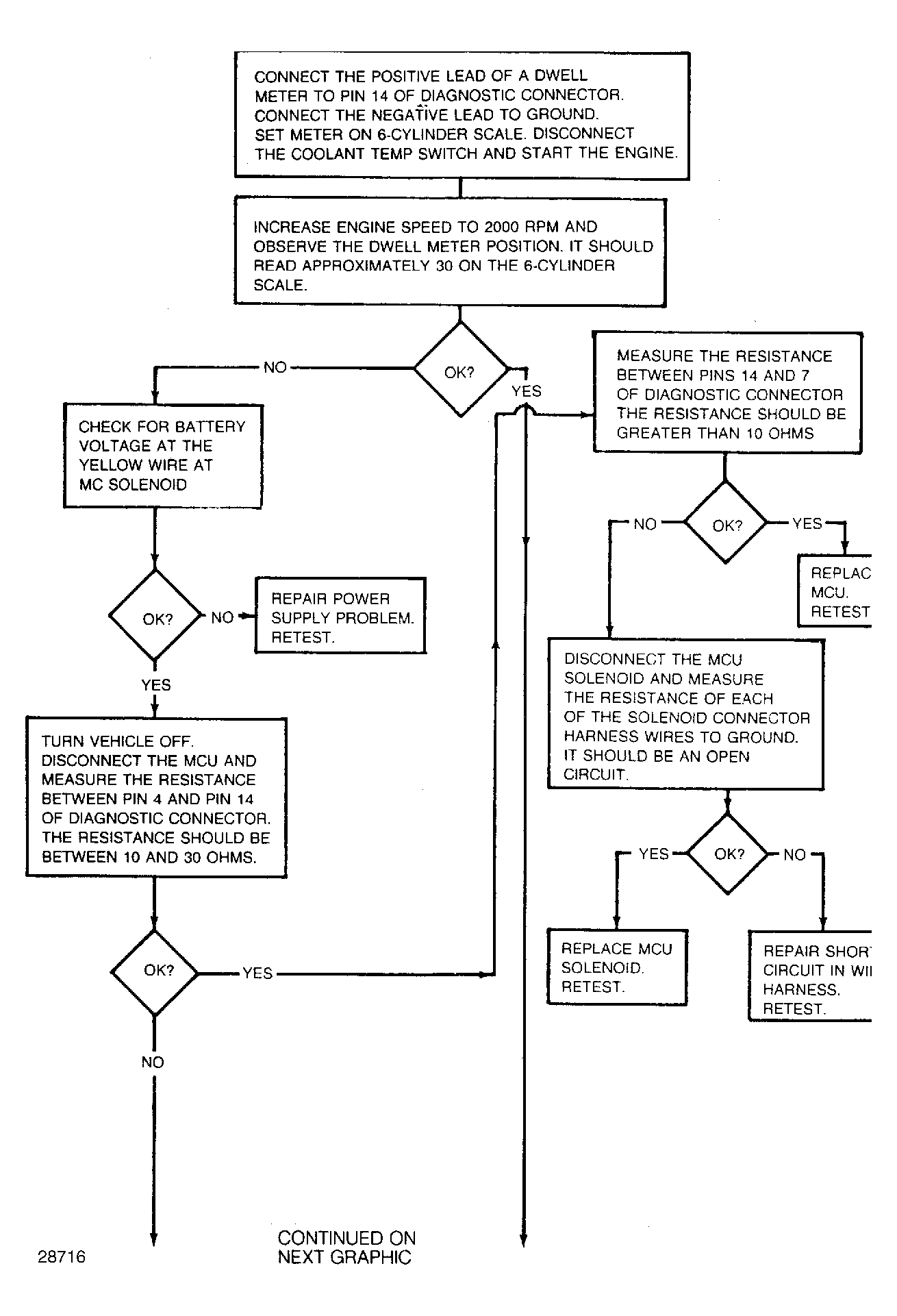

Fig 1: Test No. 5, Oxygen Sensor & Closed Loop Test (1 of 3)

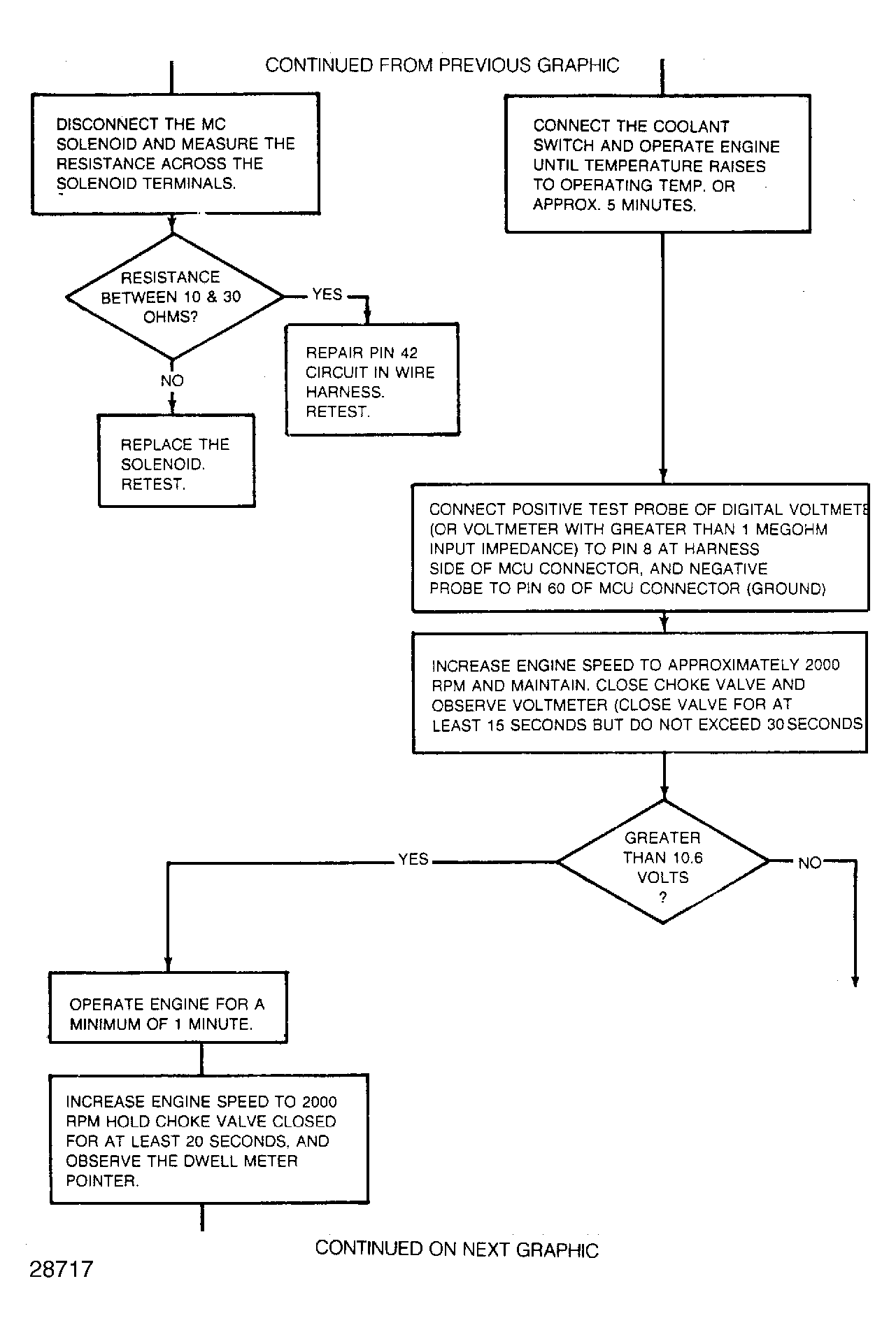

Fig 2: Test No. 5, Oxygen Sensor & Closed Loop Test (2 of 3)

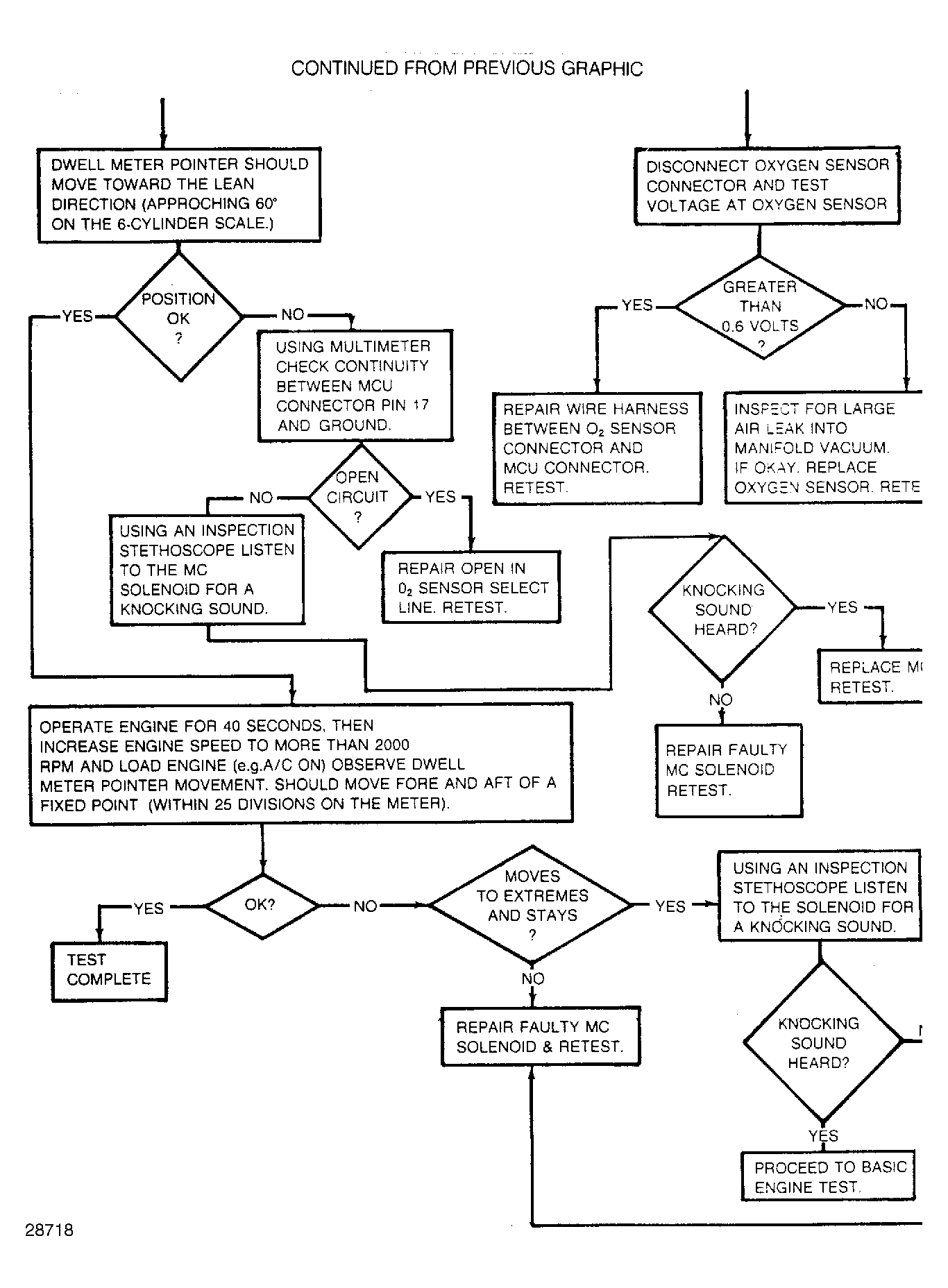

Fig 3: Test No. 5, Oxygen Sensor & Closed Loop Test (3 of 3)
