Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Audio Alarm Module | On side of fuse block. |
| Cruise Control Regulator Module | Under dashboard above brake pedal. |
| ECU | Under dashboard above accelerator pedal. See Figure. |

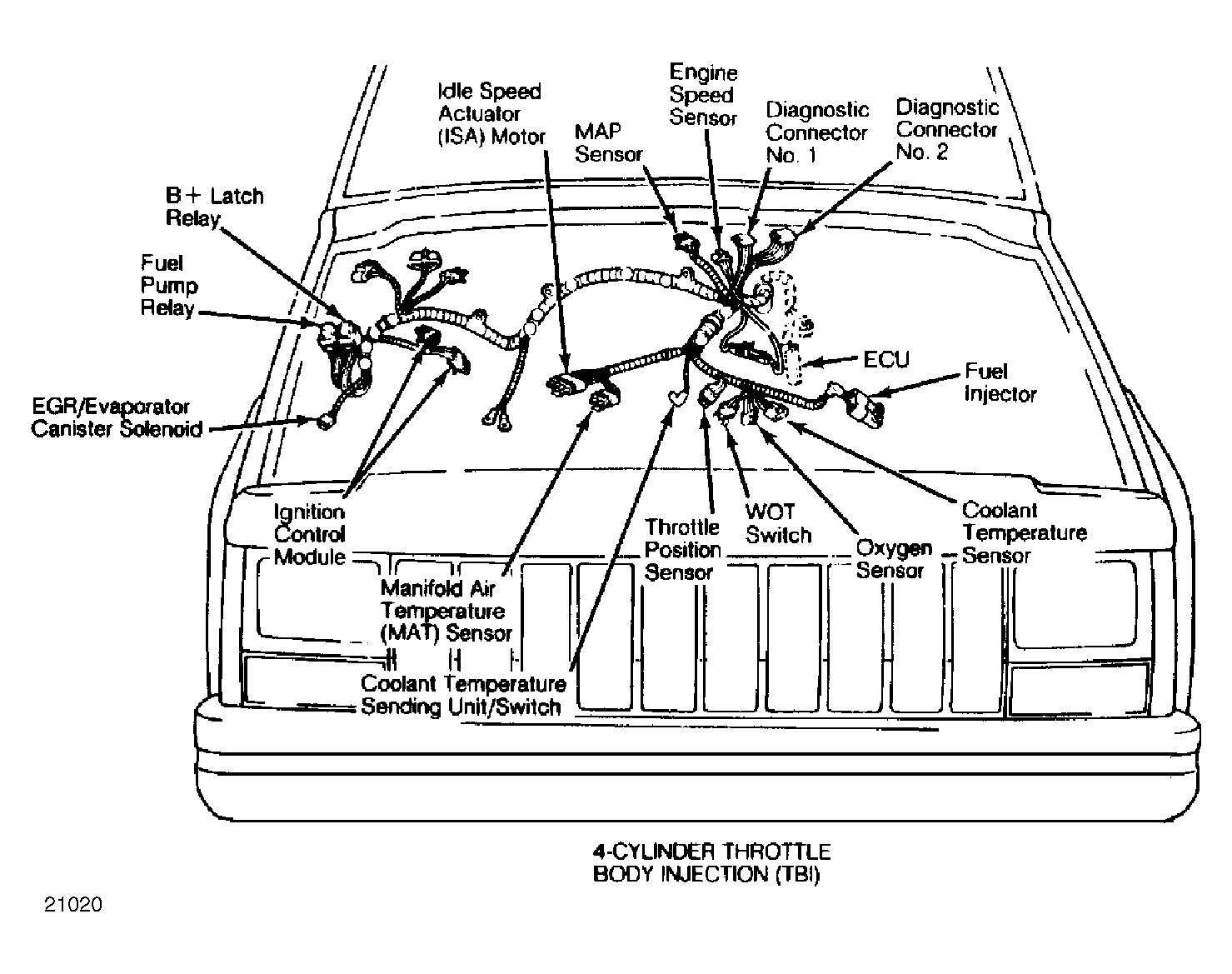

| Ignition Control Module | In engine bay on right wheelwell. See Figure. |
| Intermittent Wiper Module | Under left side of dashboard above brake pedal. |
| Keyless Entry Receiver | Between sun visors. |
| Sentinel Light Module | Under left side of dashboard near headlight switch. |
| System Sentry Control Module | Under dashboard to right of steering column. |
| Transmission Control Unit | Under the glovebox. |
