Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location | |
|---|---|---|
| A/C Blocking Diode | Taped to engine wiring harness above left wheelwell. | |
| A/C Clutch Diode | On A/C compressor. | |

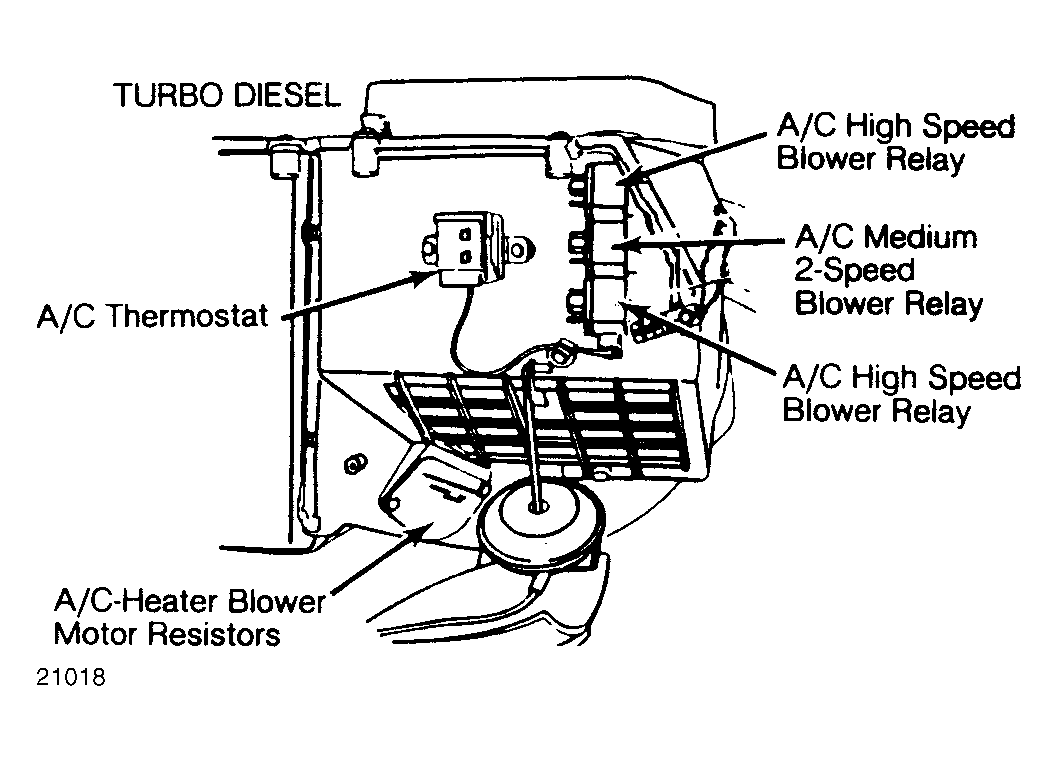

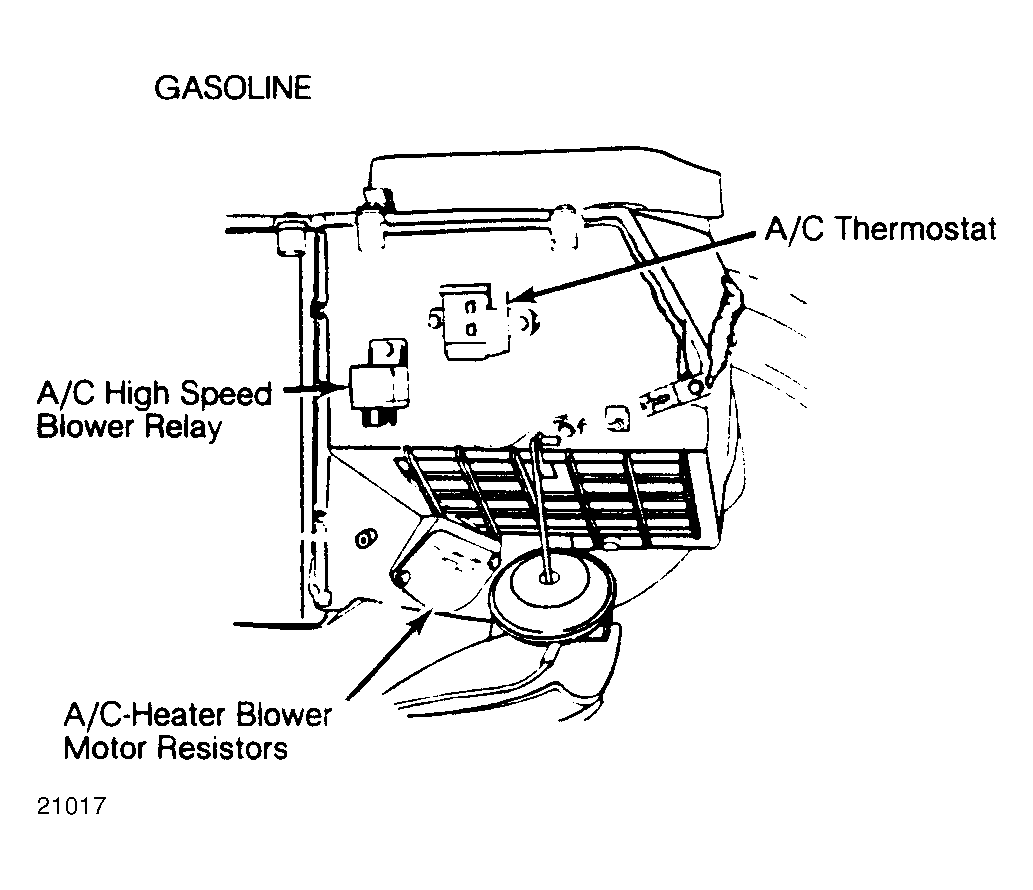

| A/C-Heater Blower Motor Resistors | Under right side of dashboard on evaporator housing. See Figure & Figure . | |
| A/C Thermistor | Under right side of dashboard in the evaporator housing. | |
| A/C Thermostat | Under right side of dashboard on evaporator housing. See Figure & Figure . | |
| Circuit Breakers | ||
| Power Accessories | In fuse block. | |
| Power Window | In fuse block. | |

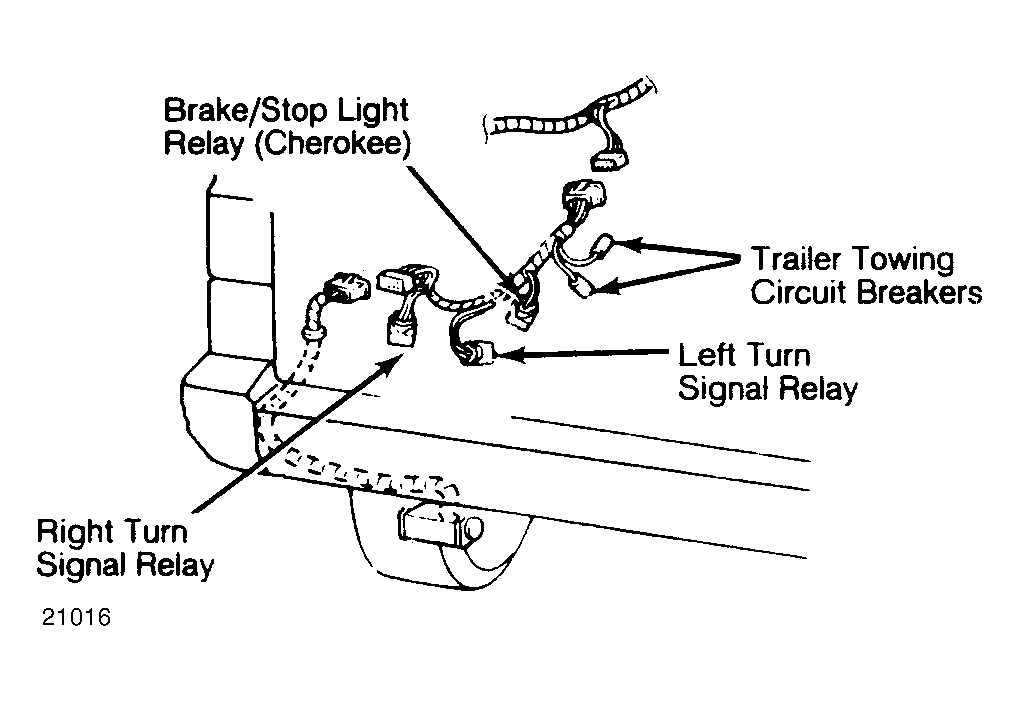

| Trailer Towing | Above left rear wheelwell. See Figure. | |
| Windshield Wiper | On side of fuse block. | |
| Cruise Control Servo | In engine bay on right wheelwell. | |
| Diagnostic Connectors | ||

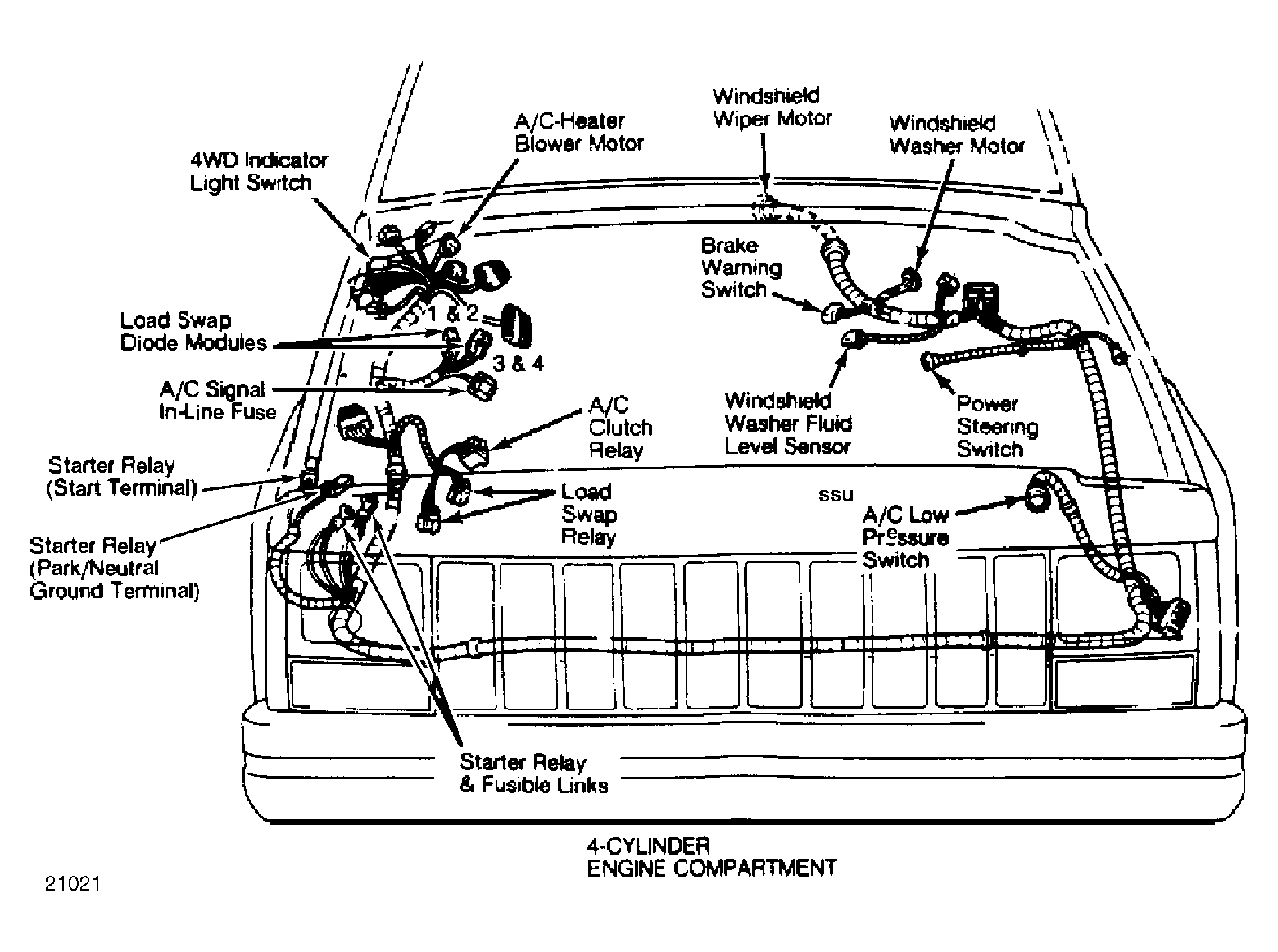

| 4-Cyl. | On center of firewall. See Figure. | |

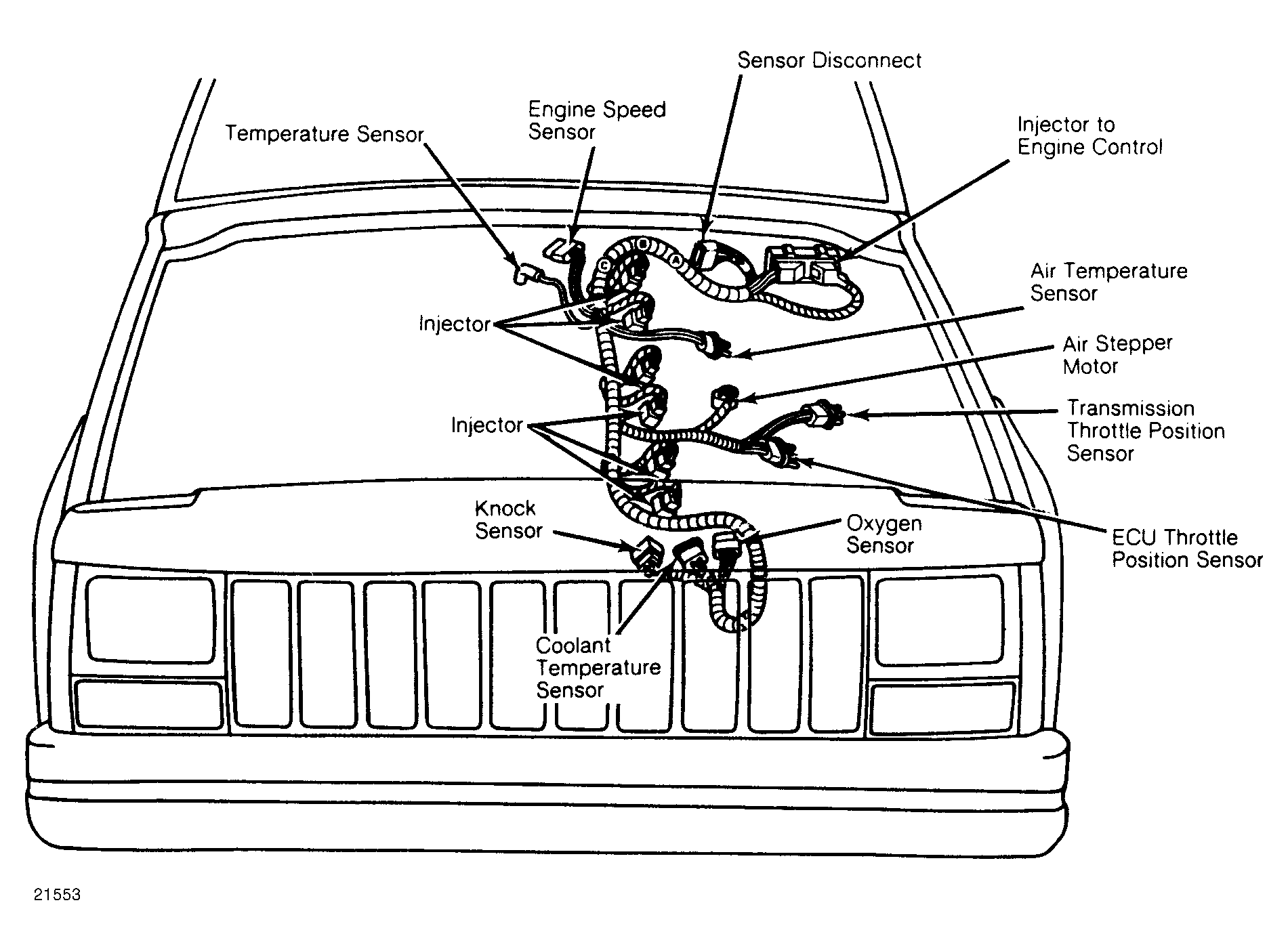

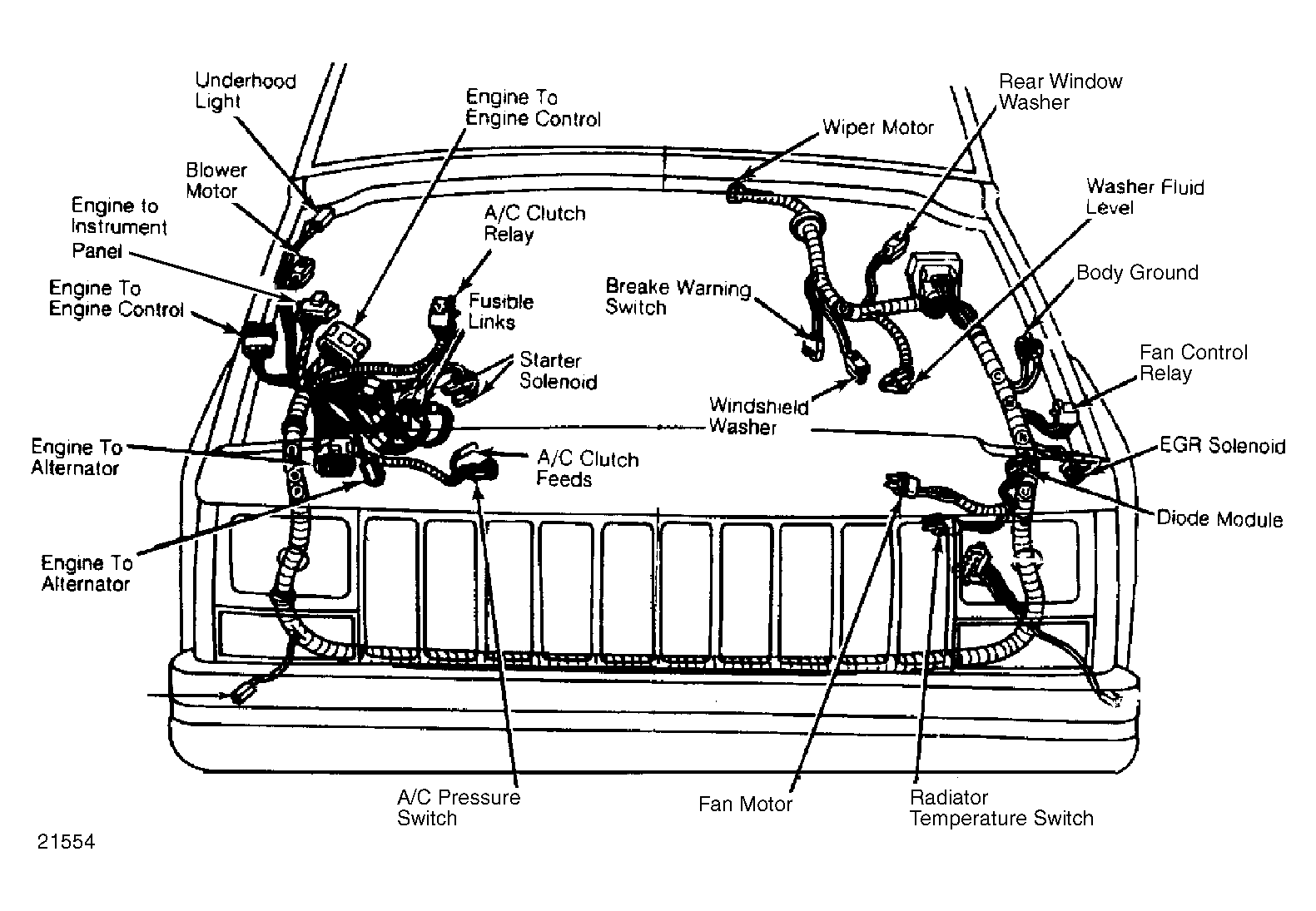

| 6-Cyl. | Left side of engine bay. See Figure. | |
| Fuse Block | Under left side of dashboard. | |

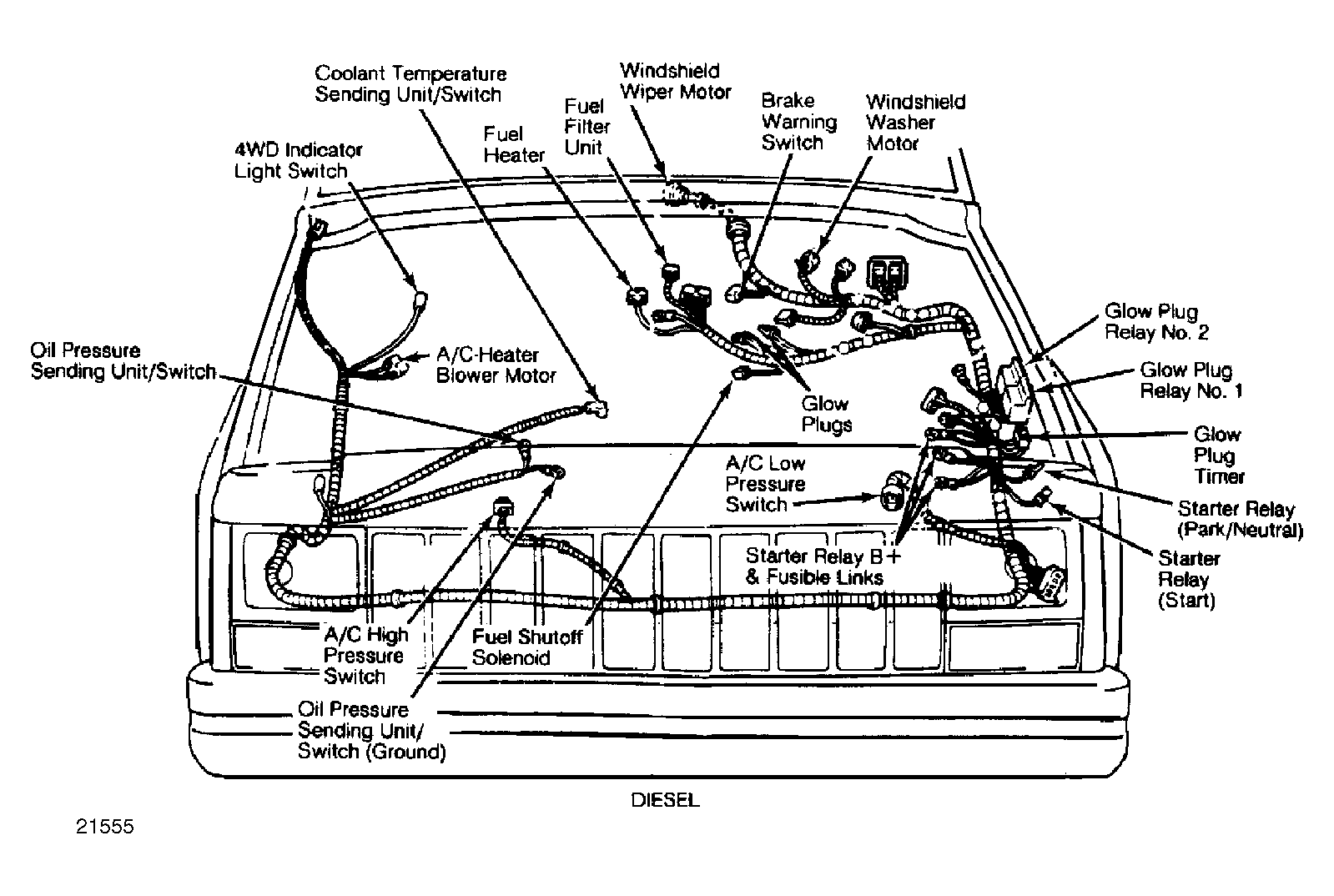

| Fusible Links A, B, C, D, E, F, H & J | At starter relay. See Figure, Figure & Figure . | |
| In-Line Fuses | ||
| A/C Signal Fuse | Near diode modules or above left front wheelwell. See Figure & Figure . | |
| Fuses A & B | Taped to engine harness near thermo-electric switch. See Figure. | |
| Fuse C | Taped to engine harness by alternator. | |
| Fuse D | Taped to engine harness near power steering switch. | |
| Cruise Control | Under left side of dashboard near brake pedal. | |
| Radio | Under center of dashboard behind radio. | |
| Load Swap Diode Modules | In engine wiring harness near alternator. See Figure. | |
