Component Testing: Notes

NOTE: When test calls for volt-ohmmeter, use of a high impedance digital type is required.

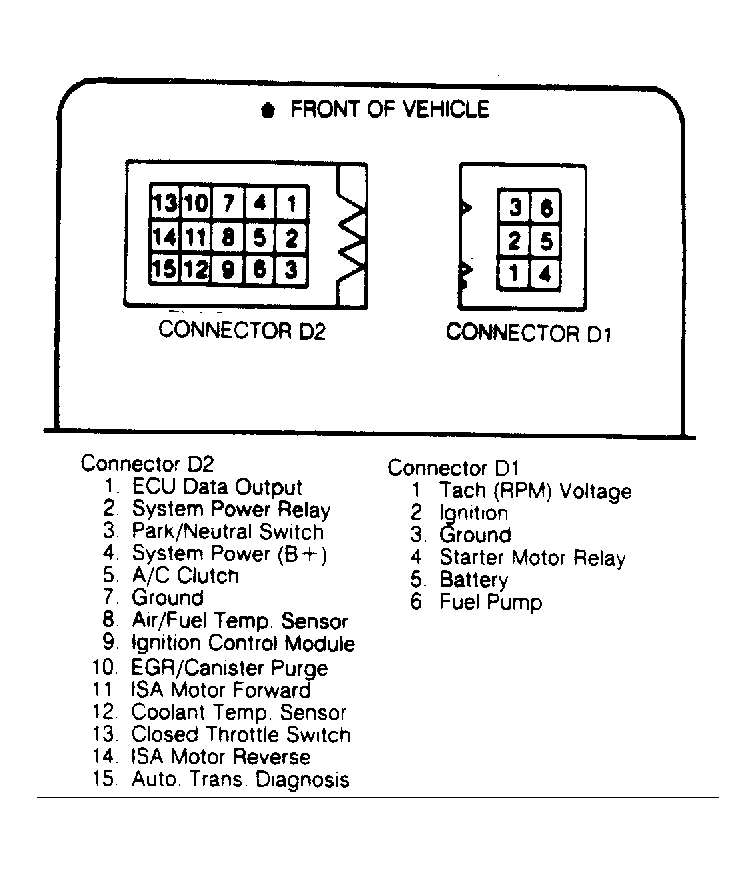

Fig 1: Diagnostic Connectors D1 and D2 Terminal Identification
G11213
