Chart 4-H, System Operational Test (Cont.)

NOTE: For additional oxygen sensor information, see TITANIA OXYGEN SENSOR TESTING article.

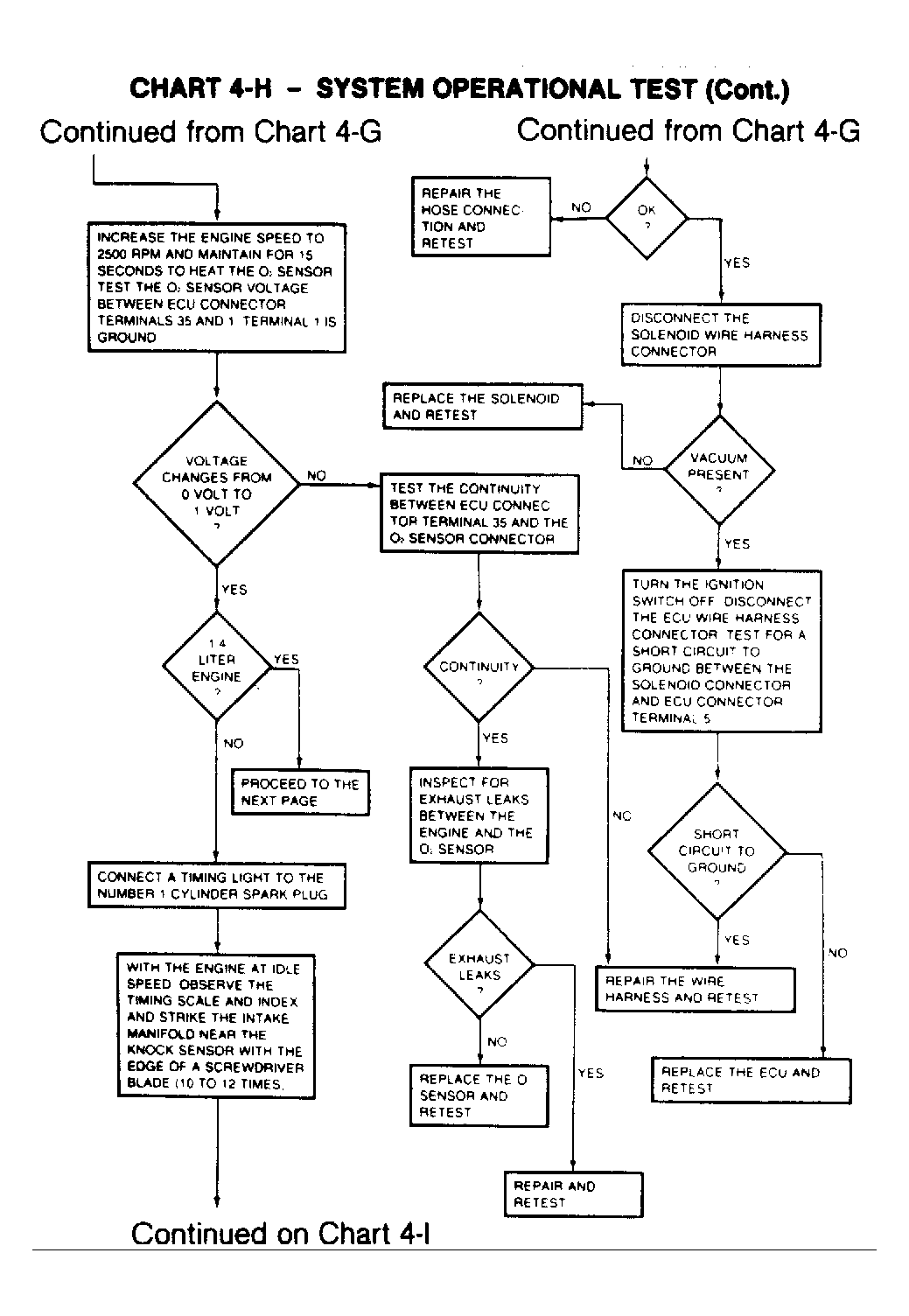

Fig 1: Chart 4-H, System Operational Test (Cont.)
G11228
