Fuel Injection Ecu Connector

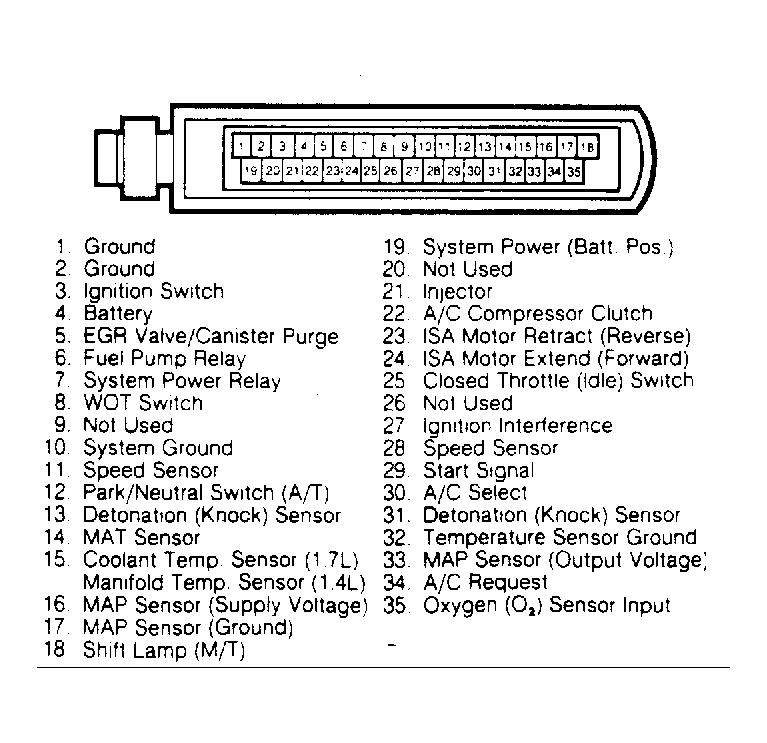

Fig 1: Jeep/Renix Fuel Injection ECU Connector
Courtesy of AMERICAN MOTORS/JEEP CORP.
Courtesy of AMERICAN MOTORS/JEEP CORP.
