Throttle Body Assembly: Removal
- Remove air inlet duct and adapter plate. Disconnect throttle cable and return spring. Disconnect electrical leads from fuel injector, WOT switch, and ISA motor.

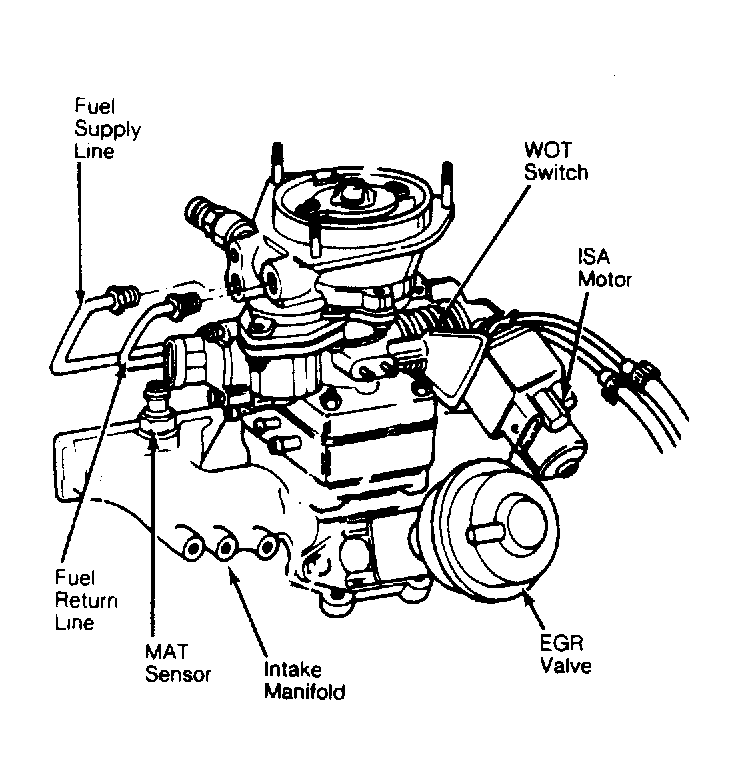

- Disconnect fuel supply and return lines at throttle body. See Figure . Tag and disconnect vacuum hoses. Disconnect TPS wiring. Remove throttle body assembly. If throttle body assembly is being replaced, transfer ISA motor and WOT switch bracket assembly to new unit.
